PP-014-044 (1 3/4 Click on Image to Enlarge

PP-014-044 (1 3/4" Dia. x 11.00" Long) Straight Guide Post

Price: $56.00

In Stock
Qty:
Qty:
In Stock

Additional Product Information

Janesville Tool & Mfg 1 3/4" Straight Guide Posts are designed to be used with CB & CBB type bushings. Dimensions and specifications subject to change without prior notice.

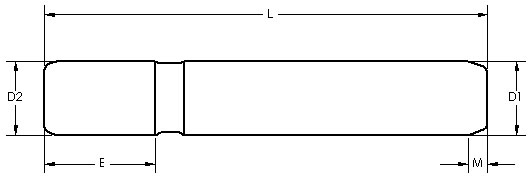

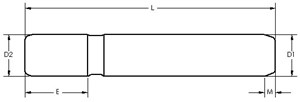

Description

1.7508/1.7502 Press Fit Bore Size

D1 1" 1 1/4" 1 1/2" 1 3/4" 2"
D2 Press Fit Bore Size Press Fit Bore Size Press Fit Bore Size Press Fit Bore Size Press Fit Bore Size
Length (L) 1.0008
1.0002
1.2508
1.2502
1.5008
1.5002
1.7508
1.7502
2.0008
2.0002
4.00 PP-008-016 N/A N/A N/A N/A
4.25 PP-008-017 N/A N/A N/A N/A
4.50 PP-008-018 PP-010-018 PP-012-018 N/A N/A
4.75 PP-008-019 PP-010-019 PP-012-019 N/A N/A
5.00 PP-008-020 PP-010-020 PP-012-020 N/A N/A
5.25 PP-008-021 PP-010-021 PP-012-021 N/A N/A
5.50 PP-008-022 PP-010-022 PP-012-022 N/A N/A
5.75 PP-008-023 PP-010-023 PP-012-023 N/A N/A
6.00 PP-008-024 PP-010-024 PP-012-024 PP-014-024 PP-016-024
6.50 PP-008-026 PP-010-026 PP-012-026 PP-014-026 PP-016-026
7.00 PP-008-028 PP-010-028 PP-012-028 PP-014-028 PP-016-028
7.50 PP-008-030 PP-010-030 PP-012-030 PP-014-030 PP-016-030
8.00 PP-008-032 PP-010-032 PP-012-032 PP-014-032 PP-016-032
8.50 PP-008-034 PP-010-034 PP-012-034 PP-014-034 PP-016-034
9.00 PP-008-036 PP-010-036 PP-012-036 PP-014-036 PP-016-036
10.00 PP-008-040 PP-010-040 PP-012-040 PP-014-040 PP-016-040
11.00 PP-008-044 PP-010-044 PP-012-044 PP-014-044 PP-016-044
12.00 PP-008-048 PP-010-048 PP-012-048 PP-014-048 PP-016-048
13.00 N/A N/A N/A PP-014-052 PP-016-052
14.00 N/A N/A N/A PP-014-056 PP-016-056
17.00 N/A N/A N/A N/A PP-016-068
20.00 N/A N/A N/A N/A PP-016-080
E 1.50 1.75 2 2.25 2.5
M 0.2756 .4008 .4008 .4008 .4008
