Other Versions200 Indicol 2" Diameter "C" Frame 200 $114.18
Additional Product Information

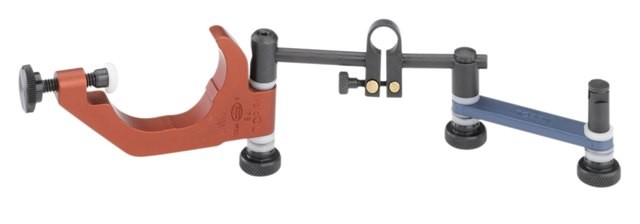

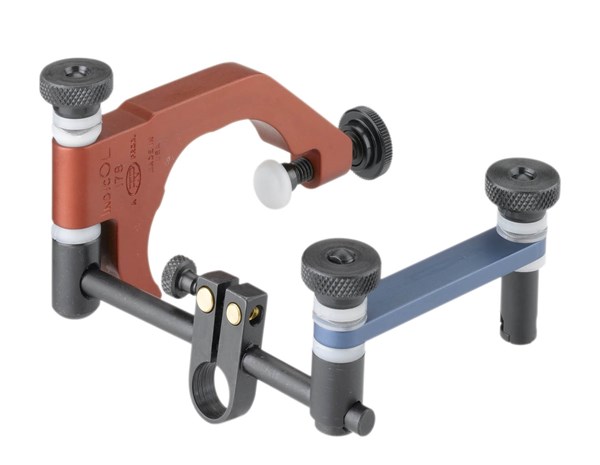

WHAT INDICOL IS – It is primarily a super time saver, a universal supporting means of a dial test indicator. It is readily available on the machine quill extension by using its “C” frame clamp without disturbing the mounted cutting tool. Its frame is designed with 3 bearing pads properly spaced and an opposite pressure screw securing the rigidity of the mounting.
WHAT INDICOL DOES – The three types of readings performed by the indicator are:
- A concentricity positioning of the work relative to the spindle centerline
- The alignment of the edge of the work with the longitudinal or transversal movement of the machine table.
- The checking of the perpendicularity of the spindle centerline relative to the surface of the table.
