Pneumatic Presses | Benchtop press machines manufactured 100% in the USA

Fully Customizable Pneumatic Arbor Presses - Designed for Your Applications

Pneumatic arbor presses, also known as air presses, use air pressure to manipulate a workpiece. A rectangular frame contains the workpiece while the ram drops down from above. Pneumatic presses can be used to quickly bend, draw, cut, punch and form metal components. Janesville Tool manufactures custom power, toggle, heat and other pneumatic arbor presses for highly specialized production tasks. All of our presses and parts are manufactured in-house at our facility in Janesville, Wisconsin. We offer a FREE application test for presses ordered for industrial/assembly applications to ensure the press meets your expectations. With Janesville tool, there's no reason to settle for anything less than the best. Our pneumatic presses feature manufacturer-direct pricing and 24-hour shipping. If you need a specialized press for your facility, all of our pneumatic presses are user-customizable using the form below.

Press Customization Form





Compare Products

No products added. Please add products to compare.
 1 2 3
Showing 20 of 55 results
0.125 Ton A-0019 Precision Pneumatic Press

Force Range: 114 - 190 lbs
Std. stroke length: 3"
Throat depth: 2.06"
Base dimensions: 2.88" x 3.06"
Height: 23.49"

$2,976.00
[Out of Stock]
Free Shipping
1/4 Ton A-066 Precision Pneumatic Press

Force Range: 396 - 660 lbs
Std. stroke length: 3"
Throat depth: 2.06"
Base dimensions: 2.88" x 3.06"
Height: 23.49"

$3,297.00
Free Shipping
1/4 Ton A-1019 Deep Throat Precision Pneumatic Press

Force Range: 114 - 190 lbs
Std. stroke length: 3"
Throat depth: 6.04"
Base dimensions: 12" x 8.22"
Height: 23.56"

$3,423.00
Free Shipping
1/4 Ton A-1066 Deep Throat Precision Pneumatic Press

Force Range: 396 - 660 lbs
Std. stroke length: 3"
Throat depth: 6.04"
Base dimensions: 12" x 8.22"
Height: 23.54"

$3,752.00
Free Shipping
1/4 Ton A-2066 Precision Pneumatic Press

Force Range: 396 - 660 lbs
Std. stroke length: 3"
Throat depth: 3.19"
Base dimensions: 7.875" x 5.375"
Height: 26.833"

$3,940.00
Free Shipping
1/4 Ton A-3066 Adjustable Precision Pneumatic Press

Force Range: 396 - 660 lbs
Std. stroke length: 3"
Throat depth: 3.94"
Base dimensions: 12" x 6.13"
Height: 23.78"

$4,497.00
Free Shipping
1/2 Ton A-3151 Adjustable Precision Pneumatic Press

Force Range: 906 - 1,510 lbs
Std. stroke length: 3"
Throat depth: 4.81"
Base dimensions: 12" x 7"
Height: 23.91"

$5,143.00
Free Shipping
A-3235 1 Ton 2 Stage Adjustable Precision Pneumatic Press

Force Range: 1,400 - 2,350 lbs
Std. stroke length: 3"
Throat depth: 4.81"
Base dimensions: 12" x 7"
Height: 28.1"

$5,742.00
Free Shipping

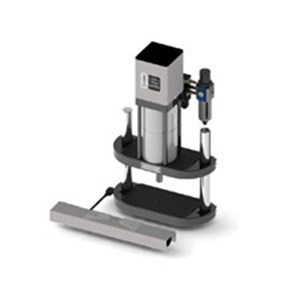

1 1/4 Ton A-5302 Four Post 2 Stage Pneumatic Press

Force Range: 1,812 - 3,020 lbs
Std. stroke length: 3"
Throat depth: N/A
Base dimensions: 5.75" x 12.25"
Height: 35.2"

$6,668.00
Free Shipping
1 3/4 Ton A-5453 Four Post 3 Stage Pneumatic Press

Force Range: 2,718 - 4,530 lbs
Std. stroke length: 3"
Throat depth: N/A
Base dimensions: 5.75" x 12.25"
Height: 41.4"

$7,249.00
Free Shipping
A-5604 Four Post 4 Stage Pneumatic Press

Force Range: 3,624 - 6,040 lbs
Std. stroke length: 3"
Throat depth: N/A
Base dimensions: 5.75" x 12.25"
Height: 47.7"

$7,791.00
Free Shipping
AP-1019

Force Range: 114 - 190 lbs
Std. stroke length: 3"
Throat depth: 6.04"
Base dimensions: 8.22" x 12"
Height: 23.56"

$4,543.00
Free Shipping
AP-1066

Force Range: 396 - 660 lbs
Std. stroke length: 3"
Throat depth: 6.04"
Base dimensions: 8.22" x 12"
Height: 23.54"

$4,802.00
Free Shipping

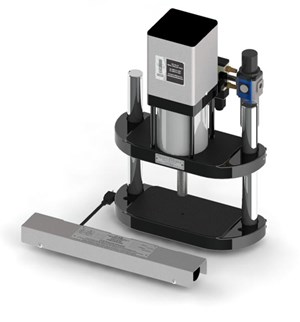

AP-151

Force Range: 906 - 1,510 lbs
Std. stroke length: 3"
Throat depth: 6.5"
Base dimensions: 11" x 10.8"
Height: 22"

$5,551.00
Free Shipping
AP-302

Force Range: 1,208 - 3,624 lbs
Std. stroke length: 3"
Throat depth: 6.5"
Base dimensions: 11" x 10.8"
Height: 26.9"

$6,115.00
Free Shipping
AP-3066

Force Range: 396 - 1,400 lbs
Std. stroke length: 3"
Throat depth: 3.19"
Base dimensions: 6.13" x 12"
Height: 23.78"

$5,456.00
Free Shipping
AP-3151

Force Range: 528 - 1,880 lbs
Std. stroke length: 3"
Throat depth: 4.81"
Base dimensions: 7" x 12"
Height: 23.91"

$6,102.00
Free Shipping
AP-3235

Force Range: 906 - 1,510 lbs
Std. stroke length: 3"
Throat depth: 6.5"
Base dimensions: 11" x 10.8"
Height: 22"

$6,701.00
Free Shipping
AP-453

Force Range: 1,510 - 4,530 lbs
Std. stroke length: 3"
Throat depth: 6.5"
Base dimensions: 11" x 10.8"
Height: 31.7"

$6,720.00
Free Shipping
AP-5302

Force Range: 1,812 - 3,020 lbs
Std. stroke length: 3"
Opening Height: 10"
Base dimensions: 12.25" x 5.75"
Height: 35.2"

$6,010.00
Free Shipping
 1 2 3

Reliable pneumatic presses manufactured in the USA

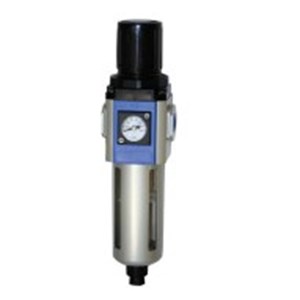

Choose from our stock of Arbor adjustable presses (A Series) for tool design, small parts assembly, staking, shearing, and punching light gauge material. Our Economy Series (E-Series) pneumatic presses reduce production costs with a streamlined benchtop design while providing the same quality that Janesville Tool is known for. We offer a full complement of pneumatic press parts and press attachments for any job. With custom fabrication options, manufacturer direct pricing and 24-hour shipping, there’s no reason to settle for anything less than the best.

Force Calculation

Model numbers are set up to give the user an indication of the force that can be obtained from the press. The last three numbers of the model number, when divided by 10 and multiplied by the air pressure will yield the output force of the press.

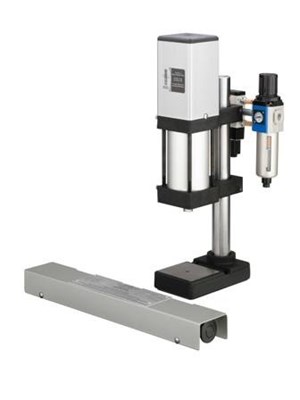

Pneumatic Benchtop Press

Benchtop press

Each precision benchtop pneumatic press is small enough to fit easily on a bench to complement your working area.

Pneumatic Hand Press

Hand press

Our presses are easily hand operated and fully customizable for minimal effort use over and over and over again.

neumatic Power Press

Power press

All Janesville Tool & Manufacturing pneumatic presses are powered to improve repeatability and maximize precision.

Pneumatic press VS hydraulic press

The difference between pneumatic and hydraulic presses is the method used to operate the machine. Pneumatic presses use compressed air or nitrogen gas to create leverage and compressive force. Hydraulic presses incorporate a cylinder filled with oil to create downward force. A piston compresses the oil which cannot expand within the cylinder and forces the ram into the workpiece. Both hydraulic and pneumatic presses are used for the same roles and are capable of performing the same tasks. Pneumatic presses feature faster operation and are generally easier to maintain.

Pneumatic press applications

Pneumatic presses are versatile tools that are capable of handling high-speed operations on a small scale. Our pneumatic presses are used throughout the United States in aerospace, defense, telecom and medical industries. A pneumatic press creates more force than a manual press making it an ideal tool for the following industrial applications:

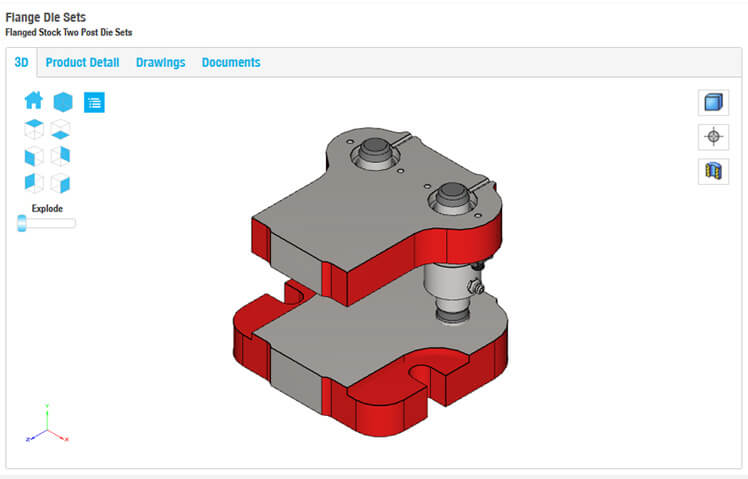

Build your own CAD model using our interactive tool.

Every JT & M Arbor pneumatic press for purchase is equipped with a three-inch stroke and adjustable down stop anti-rotate mechanisms. Standard solenoid valves offer built-in adjustable flow control. All JT & M pneumatic presses for sale also feature:

  • User-proven reliability for over 50 years
  • Nonmetallic bearings to reduce friction for lube-free operation
  • Dual hand anti-tie down/anti-repeat controls
  • Alternate stroke lengths available on request
  • Standard anti-repeat controls
  • Modifications available for any specifications

*Product specifications and pricing are subject to change without notice.
