AP-453 Click on Image to Enlarge

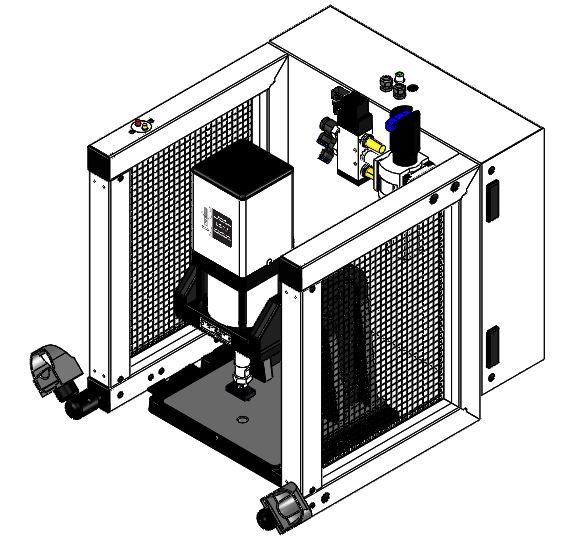

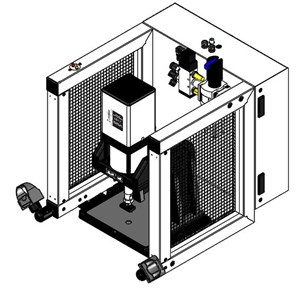

AP-151 3/4 Ton 1 Stage Precision Pneumatic C Frame Press

This product is currently out of stock. Please check back later.

Additional Product Information

Stage Force w/4.5" inch diameter cylinder at:*

  AP-151AP-302AP-453
Force capacity  3/4 tons 1 1/4 tons 1 3/4 tons
Force at 60 psi  906 lbs 1,208 lbs 1,510 lbs
Force at 80 psi  1,812 lbs 2,416 lbs 3,020 lbs
Force at 100 psi  2,718 lbs 3,624 lbs 4,530 lbs
Stage cylinder  1 2 3
Throat depth  6.5" 6.5" 6.5"
Base length  11" 11" 11"
Base width  10.80" 10.80" 10.80"
Height  22" 26.9" 31.7"
Pneumatic Arbor Press AP-453
  • 100% manufactured in the USA
  • FREE application testing
  • Build to YOUR specifications

CONTACT us to build your press

The AP-151 3/4 ton pneumatic arbor press utilizes a casting that allows the user a working area of 10.8" W x 6.5" D. The 5/8" diameter hole in the base is precisely aligned to the ram.

The AP-151 3/4 ton C frame arbor air press comes standard with these important features:

The AP-151 comes standard with:
- Adjustable Opto-Touch Buttons.
- Three-Sided Guarding.
- Internal Timer Kit.
- Air Filter and Regulator.
- Anti-Repeat - Anti-Tie Down Controls.
- Adjustable Down Stop and Anti-Rotate Mechanism.

Optional equipment:
- Die Sets
- Value Added Services
- Quick Exhaust Valves
- Riser Blocks To Increase Throat Height

Description

The AP-151 ¾ ton Press comes standard with dual hand anti-tie-down/anti repeat controls, a three-inch stroke length, an adjustable down stop/ anti-rotate mechanism.  The Banner Opto-Touch buttons are adjustable for operator comfort.  The AP series press also comes standard with a three-sided guard, air filter & regulator and internal timer.  The column height can be increased by adding a riser block between the base and the column on special request.

Literature & Downloads

View the AP-151 press dimensional drawing

View pneumatic press options

View the 2019 price list

View the AP Series Owners Manual

Options

Any of the following options can be purchased with these models.
• Tool Adapters 3/4"-10 Thread w/Special Nut (Model TA 3/4-Length) (Choice of Lengths 1-1/2", 2-1/2", 3-1/2", 4-1/2")
• Die Sets
• Arrange Press For Die Set Mtg. Add suffix (-A)
• Alternate Stroke Lengths
• Quick Exhaust Valves (Model 523)
• Riser Blocks
• Custom Tooling
