Steel Die Sets

Precision surface ground from A-36 steel with hardened ground bushings and pins, steel die sets from Janesville Tool and Manufacturing are built to exacting standards in our own facility in Janesville, WI. We’ve been doing this for over 50 years and have earned the trust of thousands of businesses in the tool and die industry. In addition to the die sets listed on our website, we offer custom fabrication to your specifications. Let us know what you need and we will provide you a quote.

Compare Products

No products added. Please add products to compare.
All Steel Die Sets

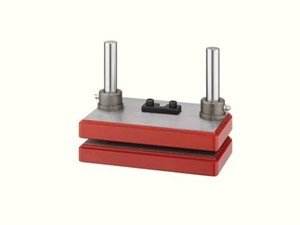

#1 MDS Steel Die Set
$211.00
Free Shipping
#2 MDS Die Set
$226.00
Free Shipping

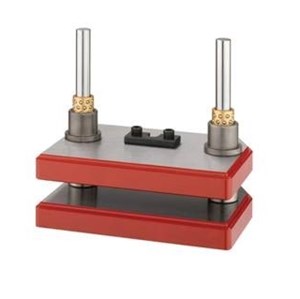

#2 MDSB Die Set with Linear Ball Bushings
$614.00
Free Shipping
#3 MDS Die Set
$250.00
Free Shipping
#3 MDSB Die Set with Linear Ball Bushings
$626.00
Free Shipping
#4 MDS Die Set
$309.00
Free Shipping
#4 MDSB Die Set with Linear Ball Bushings
$631.00
Free Shipping
#5 MDS Die Set
$371.00
Free Shipping
#5 MDSB Die Set with Linear Ball Bushings
$641.00
Free Shipping
#6 MDS Die Set
$398.00
Free Shipping
#6 MDSB Die Set with Linear Ball Bushings
$661.00
Free Shipping
#7 MDS Die Set
$513.00
Free Shipping
#7 MDSB Die Set with Linear Ball Bushings
$781.00
Free Shipping

Quick Overview

Steel Die Sets are precision surface ground and come equipped with hardened ground bushings, allowing for close tolerance fit. A-36 Steel with hardened pins for extended wear.

Model D W B S PC PD PL WW W1 "X" "Y" RC
#1 MDS 2 1/4 2 5/8 5/8 1/2 1 1/16 5/16 3 1 9/16 2 1/8 1/2 3/4 1.12
#2 MDS 2 7/8 3 1/2 3/4 9/16 1 7/16 3/8 3 1/2 2 1/8 2 5/8 5/8 1 1.31
#3 MDS 3 3/4 5 13/16 5/8 2 1/2 5 3 1/4 4 1/8 3/4 1 3/8 1.56
#4 MDS 4 3/8 6 1/2 13/16 13/16 2 3/8 5/8 5 4 3/8 5 3/8 7/8 1 1/4 1.81
#5 MDS 5 8 1/2 1 1 2 3/4 3/4 6 3/4 5 5/8 7 5/8 1 3/8 2 1/2 2.19
#6 MDS 6 9 1/2 1 1 3 1/4 3/4 6 3/4 6 5/8 8 1/2 1 3/8 2 1/2 2.69
#7 MDS 7 10 3/8 1 1 3 1/2 3/4 6 3/4 7 9 1/8 1 3/8 2 1/2 3.44Janesville Tool and Manufacturing has been making high-quality die sets and die set components for over 50 years. Everything we sell is made in our own Janesville WI facility, using the highest quality metals. Our 300 series stainless steel die sets with double plated pins and bushings are built to survive regular wash downs and humid environments that would corrode steel die sets. In addition to the pin lengths listed here, we can custom manufacture to your specifications. Just let us know what you need and we’ll get you a quote.

Features:

  • A-36 Steel
  • Hardened pins for long wear
  • Hardened bushings for close fits
  • Precision ground surfaces
  • Longer pins (available upon request)
  • Alternate pin positions (available upon request)
  • Linear ball bushings (on model numbers #2 through #7
  • Arranged for assembly

*Product specifications and pricing subject to change without notice.

(-A) ARRANGED FOR ASSEMBLY, INCLUDES: ATTACHMENT PLATE MOUNTED ON TOP AND ¼ -28 TAPPED HOLE FROM BOTTOM (HOLE DOES NOT BREAK THRU)(ORDERING EXAMPLE #3MDS-A)

Arranged for Assembly Die Set Image

Arranged for Die Set Steel ImageArranged for Steel Die Set Image 2
Shop all die sets for presses available for custom manufacturing or purchase online from Janesville Tool & Manufacturing.
