Manual Arbor Presses

USA-Made Hand Press Machines Customized for Any Application

For more than 65 years, Janesville Tool & Manufacturing has designed and built precision manual arbor presses for manufacturers across the United States. Every press is manufactured in our Janesville, Wisconsin facility, allowing us to maintain exceptional quality, consistent accuracy, and manufacturer-direct pricing.

We build arbor press machines to your specifications. Just let us know what you need, and we’ll provide you with a quote.

Press Customization Form

Shop by Manual Press Series



ILP-500 Series Presses



AP-810 Series Presses



AP-810-RR Series Presses



DT-500 Series Presses



DT-6000 Series Presses



Variable Ratio Presses



Manual Cam Presses



Manual Toggle Presses

Compare Products

No products added. Please add products to compare.
 1 2
AP-810 1/2 Ton Adjustable Head Precision Lever Pre…
$855.00
SKU: AP-810
Force capacity: 1/2 ton
Max stroke length: 9.5"
Throat depth: 2.76"
Base dimensions: 4.06" x 7.06"
Height: 11.63"
Compare
AP-810-AH 1/2 Ton Adjustable Handle Lever Press
$1,073.00
SKU: AP-810-AH
Force capacity: 1/2 ton
Max stroke length: 9.5"
Throat depth: 2.76"
Base dimensions: 4.06" x 7.06"
Height: 11.63"
Compare
AP-810-AH-FS 1/2 Ton Adjustable Handle Full Stroke…
$1,682.00
SKU: AP-810-AH-FS
Force capacity: 1/2 ton
Max stroke length: 9.5"
Throat depth: 2.76"
Base dimensions: 4.06" x 7.06"
Height: 11.63"
Compare
AP-810-AH-T-A-2(SL's) 1/2 Ton Manual Precision Pre…
$1,642.00
SKU: AP-810-AH-T-A-2(SL'S)
Force capacity: 1/2 ton
Max stroke length: 9.5"
Throat depth: 2.76"
Base dimensions: 4.06" x 7.06"
Height: 11.63"
Compare
AP-810-FS 1/2 Ton Full Stroke Precision Lever Pres…
$1,466.00
SKU: AP-810-FS
Force capacity: 1/2 ton
Max stroke length: 9.5"
Throat depth: 2.76"
Base dimensions: 4.06" x 7.06"
Height: 11.63"
Compare
AP-810-RR 1/2 Ton Adjustable Head Round Ram Press …
$953.00
SKU: AP-810-RR
Force capacity: 1/2 ton
Max stroke length: 9.5"
Throat depth: 2.63"
Base dimensions: 4.06" x 7.06"
Height: 11.49"
Compare
AP-810-RR-AH 1/2 Ton Adjustable Handle Lever Press
$1,209.00
SKU: AP-810-RR-AH
Force capacity: 1/2 ton
Max stroke length: 9.5"
Throat depth: 2.63"
Base dimensions: 4.06" x 7.06"
Height: 11.49"
Compare
AP-810-RR-AH-FS 1/2 Ton Full Stroke Adjustable Han…
$1,819.00
SKU: AP-810-RR-AH-FS
Force capacity: 1/2 ton
Max stroke length: 9.5"
Throat depth: 2.63"
Base dimensions: 4.06" x 7.06"
Height: 11.49"
Compare
AP-810-RR-FS 1/2 Ton Full Stroke Adjustable Head R…
$1,564.00
SKU: AP-810-RR-FS
Force capacity: 1/2 ton
Max stroke length: 9.5"
Throat depth: 2.63"
Base dimensions: 4.06" x 7.06"
Height: 11.49"
Compare
DT-500 1/4 Ton Precision Deep Throat Press - Base …
$770.00
SKU: DT-500
Force capacity: 1/4 ton
Max stroke length: 6"
Throat depth: 6.3"
Base dimensions: 5" x 12"
Height: 7.82"
Compare

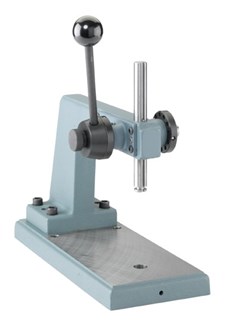

DT-500-AH 1/4 Ton Adjustable Handle Deep Throat Le…
$993.00
SKU: DT-500-AH
Force capacity: 1/4 ton
Max stroke length: 6"
Throat depth: 6.3"
Base dimensions: 5" x 12"
Height: 7.82"
Compare

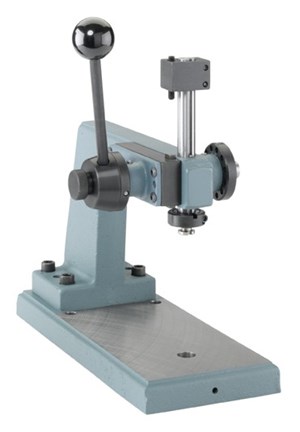

DT-500-AH-FS 1/4 Ton Adjustable Handle Full Stroke…
$1,472.00
SKU: DT-500-AH-FS
Force capacity: 1/4 ton
Max stroke length: 6"
Throat depth: 6.3"
Base dimensions: 5" x 12"
Height: 7.82"
Compare
DT-500-AH-SS DT-500-AH-SS 1/4 Ton Adjustable Handle Deep Throat…
$4,156.00 Out Of Stock
SKU: DT-500-AH-SS
Force capacity: 1/4 ton
Max stroke length: 6"
Throat depth: 6.3"
Base dimensions: 5" x 12"
Height: 7.82"
Compare
DT-500-FS 1/4 Ton Full Stroke Lever Press
$1,250.00
SKU: DT-500-FS
Force capacity: 1/4 ton
Max stroke length: 6"
Throat depth: 6.3"
Base dimensions: 5" x 12"
Height: 7.82"
Compare
DT-6000 1/8 Ton Precision Deep Throat Lever Press …
$1,578.00
SKU: DT-6000
Force capacity: 1/8 ton
Max stroke length: 12"
Throat depth: 11.9"
Base dimensions: 9.88" x 19.5"
Height: 14.75"
Compare
DT-6000-FS 1/8 Ton Deep Throat Full Stroke Lever P…
$2,223.00
SKU: DT-6000-FS
Force capacity: 1/8 ton
Max stroke length: 12"
Throat depth: 11.9"
Base dimensions: 9.88" x 19.5"
Height: 14.75"
Compare
ILP-500 1/2 Ton Precision Assembly Press - Base Mo…
$491.00
SKU: ILP-500
Force capacity: 1/2 ton
Max stroke length: 6"
Throat depth: 1.75"
Base dimensions: 2.88" x 5.54"
Height: 7.75"
Compare
ILP-500-AH 1/2 Ton Adjustable Handle Lever Press
$716.00
SKU: ILP-500-AH
Force capacity: 1/2 ton
Max stroke length: 6"
Throat depth: 1.75"
Base dimensions: 2.88" x 5.54"
Height: 7.75"
Compare
ILP-500-AH-FS 1/2 Ton Adjustable Handle Full Strok…
$1,195.00
SKU: ILP-500-AH-FS
Force capacity: 1/2 ton
Max stroke length: 6"
Throat depth: 1.75"
Base dimensions: 2.88" x 5.54"
Height: 7.75"
Compare

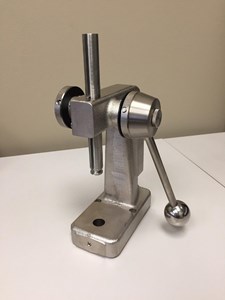

ILP-500-AH-SS ILP-500-AH-SS 1/2 Ton Adjustable Handle Lever Pres…
$2,075.00 Out Of Stock
SKU: ILP-500-AH-SS
Force capacity: 1/2 ton
Max stroke length: 6"
Throat depth: 1.75"
Base dimensions: 2.88" x 5.54"
Height: 7.75"
Compare
 1 2

Manual Press Guide

The best manual arbor press depends on the amount of force your application requires, the size of the workpiece, the available clearance around the tooling, and whether you need specialized features like a deep throat, full-stroke operation, or variable mechanical advantage. Janesville Tool & Manufacturing offers several press series, each designed for different manufacturing and assembly applications.

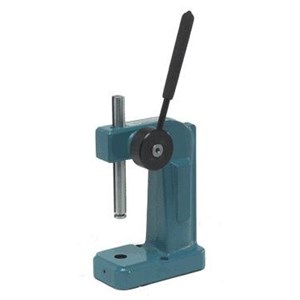

ILP-500 Precision Assembly Lever Press

ILP-500 Series Presses

Best for Precision Bench Assembly

The ILP-500 Series is our most compact precision lever press and an excellent choice for light assembly work. With a 1/2-ton capacity and standard throat depth, it's ideal for small-part production, punching, shaping, shearing, and precision assembly of metal and plastic components. Many manufacturers dedicate multiple ILP-500 presses to individual assembly operations for consistent, repeatable production.

Choose the ILP-500 Series if you need:

  • Compact bench-top press
  • Precision assembly of small parts
  • Light-duty punching or forming
  • High-volume repetitive assembly operations

Available configurations include adjustable handle (AH), full stroke (FS), and combined adjustable handle/full stroke (AH-FS) models.

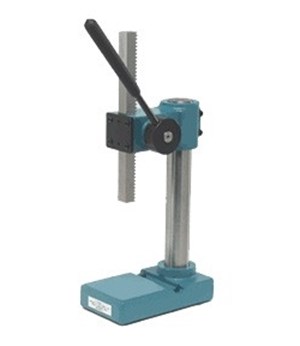

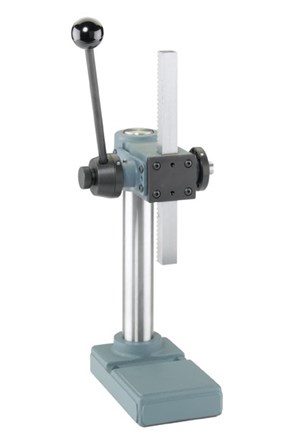

AP-810 1/2 Ton Manual Adjustable Head Precision Lever Presses

AP-810 Series Presses

Best for Larger Parts and Greater Flexibility

The AP-810 Series builds on the capabilities of the ILP-500 by providing additional working clearance and a longer stroke. Its adjustable head design and longer ram make it well suited for larger components, taller tooling, and applications requiring additional setup flexibility.

Choose the AP-810 Series if you need:

  • More clearance than the ILP-500
  • Longer stroke length
  • Adjustable working height
  • Flexible tooling options
  • Precision assembly, punching, shearing, or forming

Several configurations are available, including adjustable handle, full stroke, larger T-slot bases, and custom column lengths.

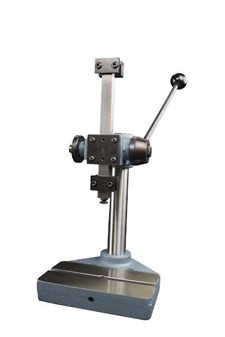

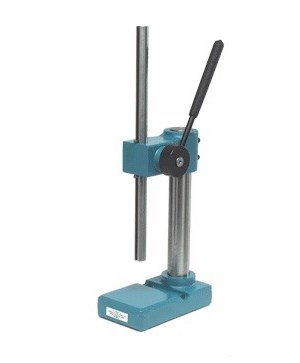

AP-810-RR Manual Round Ram 1/2 Ton Arbor Presses

AP-810-RR Series Presses

Best for Long-Ram Applications

The AP-810-RR Series features a round ram design that is optimized for long-ram applications. Like the AP-810, it offers adjustable height and multiple operating configurations while providing added versatility for specialized tooling and applications that benefit from a round ram.

Choose the AP-810-RR Series if you need:

  • Long-ram applications
  • Round ram tooling compatibility
  • Adjustable head flexibility
  • Full-stroke or adjustable handle options

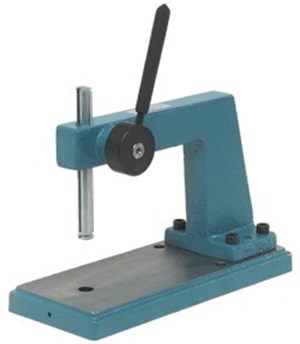

DT-500 Precision 1/4 Ton Deep Throat Arbor Press

DT-500 Series Presses

Best for Larger Parts Requiring Deep Reach

The DT-500 Series is designed with a 6.3-inch throat depth, allowing operators to work farther from the edge of a part than standard presses. This makes it ideal for larger workpieces while maintaining excellent precision for assembly, punching, shearing, and shaping operations.

Choose the DT-500 Series if you need:

  • Deep throat clearance
  • Larger part production
  • Long-reach applications
  • Compact footprint with added working space

Adjustable handle, stainless steel, and full-stroke versions are also available.

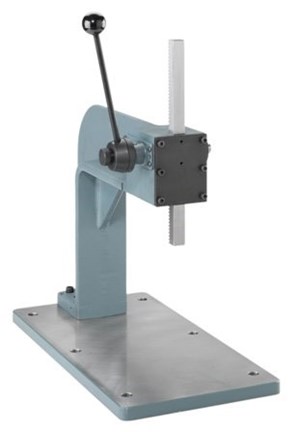

DT-6000 Manual Precision Deep Throat Lever Press

DT-6000 Series Presses

Best for Extra-Large Parts and Circuit Boards

The DT-6000 Series offers nearly 12 inches of throat depth and a 12-inch stroke, making it the ideal choice for oversized components and applications requiring exceptional reach. It is commonly used for circuit board assembly and large-part manufacturing where standard presses cannot provide sufficient clearance.

Choose the DT-6000 Series if you need:

  • Maximum throat depth
  • Very large workpieces
  • Long stroke applications
  • Circuit board or electronics assembly

Available in standard and full-stroke models.

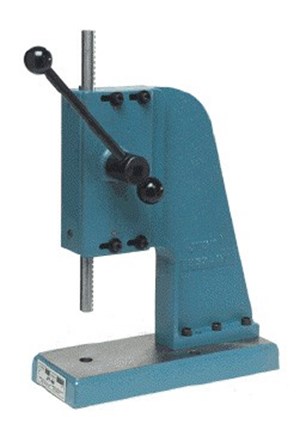

1 Ton Manual Variable Ratio Presses

Variable Ratio Presses

Best for Adjustable Mechanical Advantage

Variable Ratio Presses allow operators to change the mechanical advantage by selecting different gear ratios. This provides greater flexibility between force and travel speed depending on the application. Models differ by the amount of vertical travel per handle revolution, making them well suited for a variety of industrial manufacturing processes.

Choose a Variable Ratio Press if you need:

  • Adjustable force ratios
  • Longer stroke travel
  • Punching, stamping, forming, or assembly
  • One press capable of multiple production tasks

Available models include:

  • T-963: 3" travel per revolution
  • T-965: 5" travel per revolution
  • T-967: 7" travel per revolution

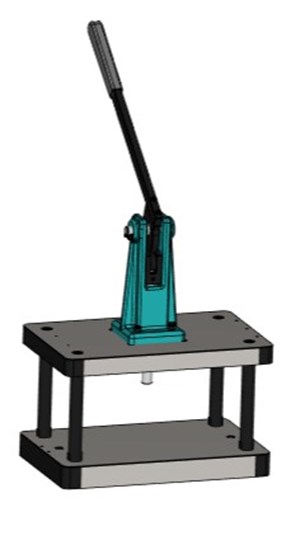

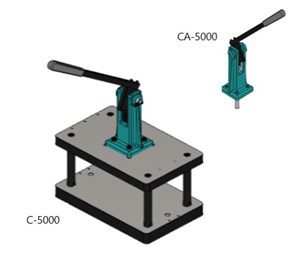

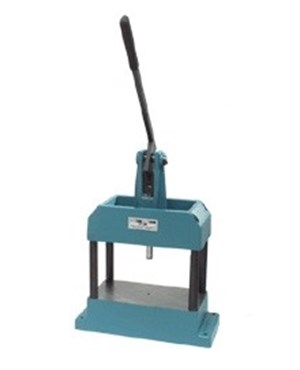

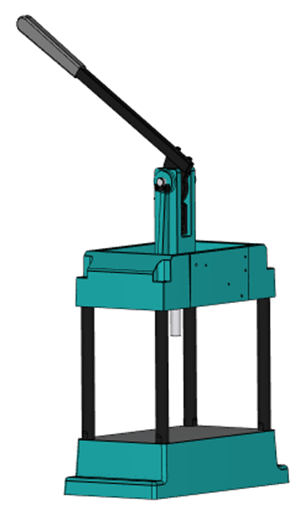

Industrial 4 Ton Manual Cam Press Machines

Manual Cam Presses

Best for High-Force Precision Pressing

Manual Cam Presses provide up to 4 tons of controlled force while maintaining excellent repeatability and accuracy. They're commonly used for demanding industrial applications including staking, crimping, circuit board assembly, and precision stamping.

Choose a Manual Cam Press if you need:

  • Higher pressing force
  • Repeatable precision
  • Industrial production applications
  • Stamping, crimping, or staking operations

The C-5000 Series also offers customization options for specialized production requirements.

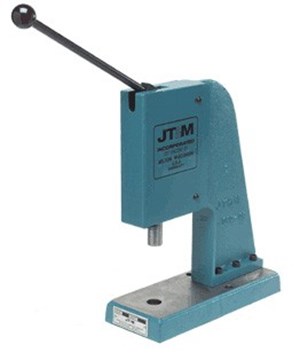

Precision Manual Toggle Presses

Manual Toggle Presses

Best for Maximum Force at the End of the Stroke

Manual Toggle Presses generate their highest force at the end of the press stroke, making them ideal for operations that require maximum pressing force over a short travel distance. These presses excel at bending, staking, punching, shearing, and heavy-duty assembly.

Choose a Manual Toggle Press if you need:

  • High force in a short stroke
  • Pressing or staking operations
  • Bending or shearing
  • Heavy-duty industrial applications

The T-960 features a non-rotating ram for smooth, consistent operation and can be customized for specialized manufacturing requirements.

Manual Press Applications



Punching



Riveting



Metal Stamping



Light Duty



Clean Room Applications



Pressing Bearings

Manual Hand Press Accessories

Maximize the performance and versatility of your manual press with genuine Janesville Tool accessories. We offer replacement components and custom tooling designed to improve efficiency, extend equipment life, and support specialized applications.

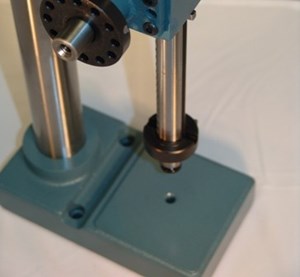

Manual Press Parts

Keep your press operating like new with OEM replacement parts manufactured to the same standards as our original equipment.

SHOP

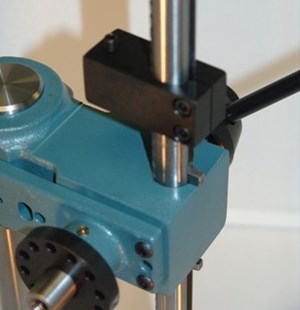

Manual Press Attachments

Increase your press's capabilities with attachments designed for specific assembly, forming, and production tasks.

SHOP

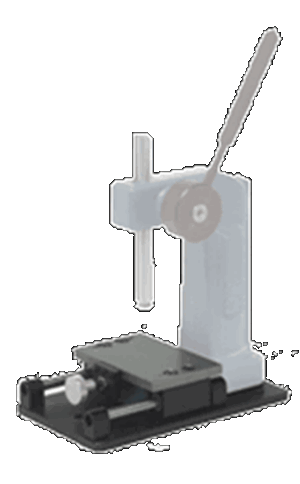

Manual Press Multi-Position Fixtures

Custom multi-position fixtures help streamline repetitive operations by improving part positioning and reducing setup time.

SHOP

American-Made Quality

Every Janesville Tool manual arbor press is proudly manufactured in the USA and built for years of reliable performance. By designing and manufacturing our presses in-house, we maintain complete control over quality while providing responsive customer service and customization options.

Our customers choose Janesville Tool because we offer:

  • 100% Made in the USA
  • Manufactured in Janesville, Wisconsin
  • Over 65 years of manufacturing experience
  • Consistent press accuracy
  • Manufacturer-direct pricing
  • Durable, long-lasting construction
  • OEM replacement parts and accessories
  • Complete press customization options
Janesville Tool Established 1959

Manual Arbor Presses FAQs

What is a manual arbor press used for?

  • A manual arbor press provides controlled, repeatable force for small-part assembly and light-duty forming tasks. Common uses include punching, cutting, riveting, inserting PEM nuts, press-fitting, and shaping metal or plastic components.

How do I choose the right arbor press for my application?

  • Start by determining the force required, your needed stroke length, and the type of material you’re working with. If you’re unsure, call our team for recommendations based on your production needs.

Do you offer manufacturer-direct pricing?

  • Yes. Buying directly from us ensures competitive pricing without distributor markups while still maintaining fast shipping so that you can start your project on time.
