Additional Product Information
|Force capacity||1/4 ton|
|Max stroke length||6"|
- 100% manufactured in the USA
- FREE application testing
- Customized to YOUR specifications

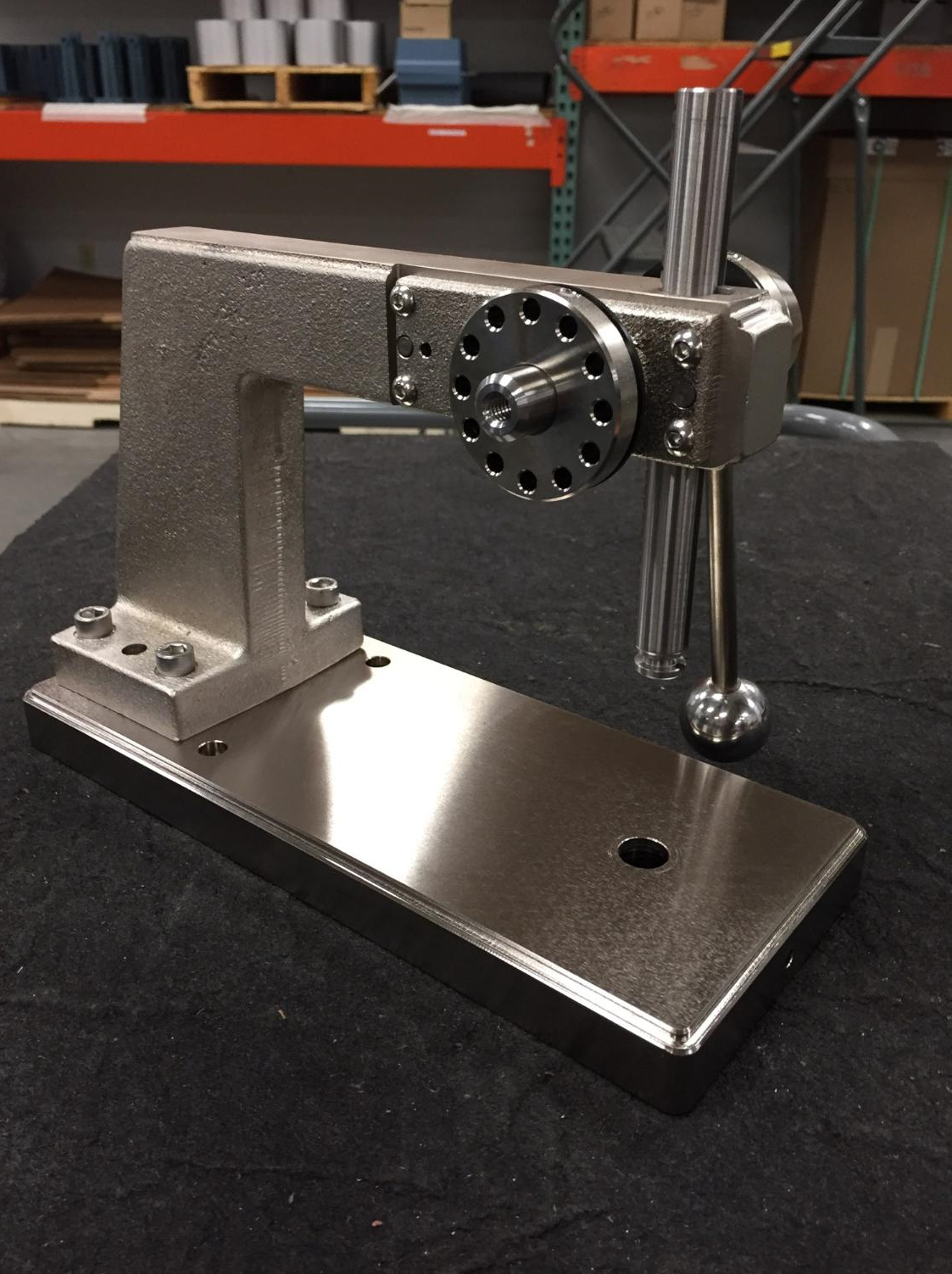

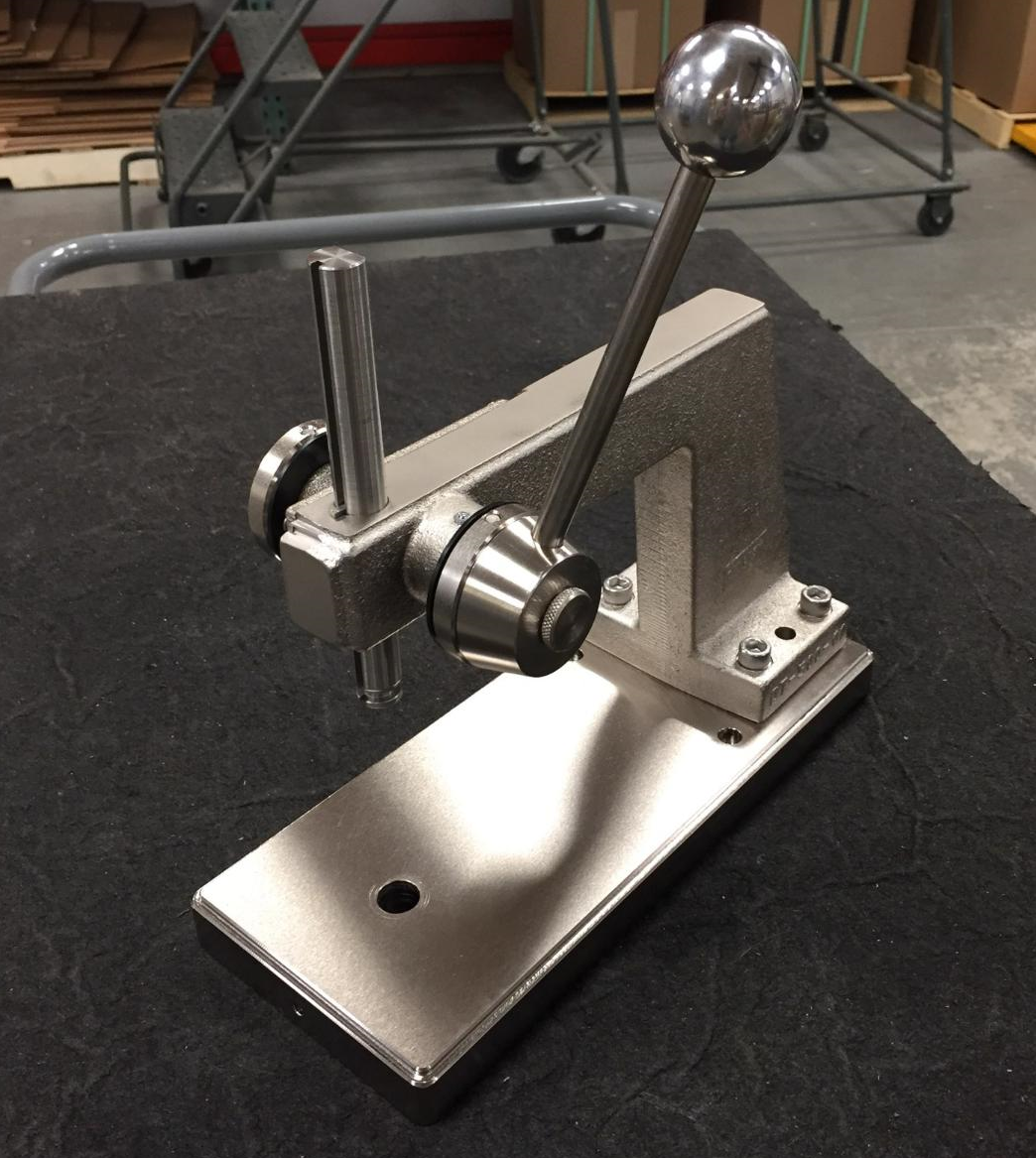

The base, column, handle and hub assembly are nickel plated, making the DT-500-SS suitable for most clean-room applications. The rack and pinion are made of stainless steel.The DT-500-AH-SS 1/4 ton deep throat lever arbor press with adjustable handle utilizes the same 5/8" diameter precision ram as the popular ILP-500, and allows the user throat clearance of 6 inches.
The model DT-500 precision assembly press consists of a ground cast iron base and separate column. The base consists of two (2) mounting holes for 1/4" socket cap screws. These holes can be tapped from the bottom for 5/16" screws on special request. The clearance under the column can be increased by adding a riser block between the ground base and column flange. The 5/8" diameter hole in the base is precisely aligned to the ram allowing for simplified tooling designs.
Check out all 1/4 ton arbor presses from Janesville Tool
Contact Janesville Tool with questions or for more information.
Any Janesville Tool press can be individually configured by selecting the base model plus any additional attachments.
The DT-500 1/4 ton arbor press comes in multiple variations:
