/All Products/Die Set Components/Die Set Guide Posts & Pins/Guide Posts with Ball Retainer and Sleeve

Click on Image to Enlarge

Build custom CAD models to your specs

Request a Quote

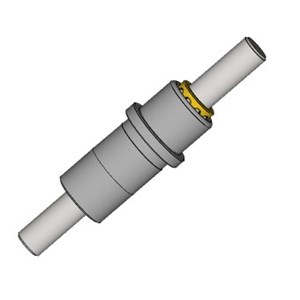

PR3 - 1/2" x 5" (L) Guide Post w/ Ball Retainer & Sleeve

Price: $174.00

In Stock

Qty:

Print

Qty:

In Stock

+ Add To Wish List

Additional Product Information

Assy #	Post Dia.	Post Lgth.	Post Hole Dia.	Bush O.D.	Bush Lgth.	Bush Hole Dia.*	Ball Retainer Lgth.
PR1	3/8	3 1/2	.3740/.3745	3/4	2 1/2	.7515/.7518	2 1/2
PR2	3/8	5	.3740/.3745	3/4	2 1/2	.7515/.7518	2 1/2
PR3	1/2	5	.4990/.4995	1	2 1/2	1.0015/1.0018	2
PR4	1/2	6	.4990/.4995	1	2 1/2	1.0015/1.0018	2
PR5	3/4	6 3/4	.7490/.7495	1 3/8	2 1/2	1.3768/1.3772	2 1/2
PR6	1	9 7/8	.9990/.9995	1 3/4	2 1/2	1.7519/1.7523	2 1/2
PR7	1 1/4	9 7/8	1.2490/1.2495	2 1/4	2 1/2	2.2525/2.2521	2 1/2

Full Product Description

Description

Die set components are packaged as a set to assure tolerance compatibility.
