One of several versions in the ILP-500 manual hand press series.

  ILP-500-AH
Force capacity  1/2 ton
Max stroke length  6"
Throat depth  1.75"
Base length  5.54"
Base width  2.88"
Height  7.75"

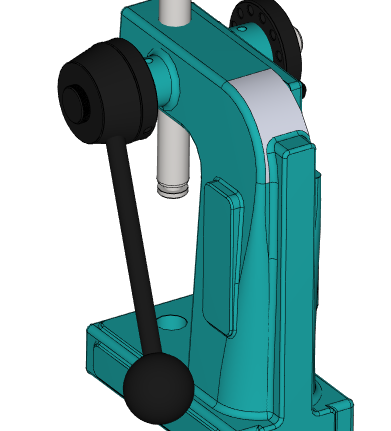

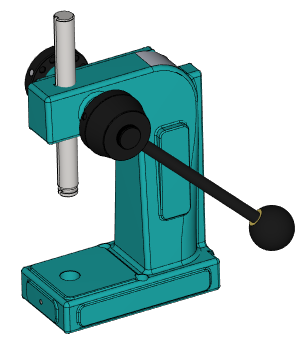

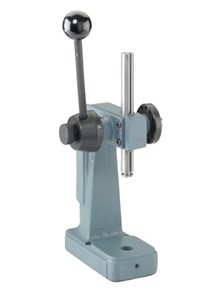

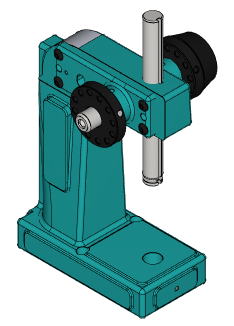

1/2 Ton Manual Hand Press ILP-500-AH
    • 100% manufactured in the USA
    • FREE application testing
    • Customized to YOUR specifications
Press Customization Form

The ILP-500-AH 1/2 ton adjustable handle lever arbor press assures constant accuracy and automatic alignment. Many companies have found them ideal for small-parts production and assembly by installing a line of them, each tooled for a specific operation.

  • Dimensions: 7 3/4"h x 5 1/2"d x 2 7/8"w.
  • Opening: 5"h x 2 1/16" ram to column.
  • Two 1/4" holes are provided in base for anchoring.

This press is ideal for precision assembly work and for shearing, shaping, and punching of light-gauge stock, metal, or plastic. The 5/8" diameter precision ground ram is keyed into the head and is in precise alignment with the hole in the base.

Check out all 1/2 ton arbor presses from Janesville Tool

Contact Janesville Tool with questions or for more information.

Description

You can configure each model individually by selecting the base model plus any additional attachments.

The ILP-500 1/2 ton manual press is available as a base model or with two other variations besides the -AH:

A tough, USA made 1/2 ton lever press with unmatched durability & repeatability.

The ILP-500-AH lever press may be easily customized for industrial uselight dutyclean rooms, making jewelryplastics, or PEM nuts. Our presses can be built for all sorts of different purposes:

Shop precision manual lever presses available for sale from Janesville Tool & Manufacturing.

Literature & Downloads

View the ILP-500 dimensional drawing

View the ILP-500 parts breakout

View manual press options

View the 2020 Price List

Download the owner's manual

Options

Any of the following options can be purchased with these models.

Precision Mechanical Press Up-Stroke Limiter

Up-Stroke Limiter

Like the Adjustable Down Stop, the Up-Stroke Limiter clamps onto the ram of the press at any position. It is designed to limit the travel of the up-stroke in order to increase press productivity.

Model USL Stroke Limiter

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

Adjustable Down Stop for Precision Hand Arbor Press

Adjustable Down Stop

The Adjustable Down Stop is designed to clamp anywhere onto the ram of the press. An adjusting screw is supplied in the unit to assure accurate down stop position with every cycle.

Model ADS Adjustable Down Stop

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

Multi-Position Fixtures for Manual Arbor Press

Multi-Position Fixtures

Our multi-position fixtures consist of a ground steel platen that can be indexed out from under the press ram to provide improved access to the fixture. This platen rides on precision fitted guide pins and bronze bushings. An adjustment screw is provided for accurate end stop positioning under the press ram. The multi-position fixture is a self-contained unit that can be mounted to our presses with two (2) screws.

Model 0632-Multi Position Fixture (AP 810)

Model 0631-Multi Position Fixture (ILP-500)

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

Mechanical Arbor Press Adjustable Handle Model

Adjustable Handle Model

The Left/Right Adjustable Handle Press was designed to benefit the left-handed production worker, but it also can come in handy when the operator needs to hold tooling or parts with their right hand and operate the press from the left for assembly convenience and flow. The handle can be adjusted on either side in 30° increments without removing the ram of the press.

ADD TO YOUR ORDER ABOVE OR CONTACT US FOR MORE DETAILS

Resettable Counter and Bracket for Manual Arbor Press

Resettable Counter & Bracket

This Counter attaches to many of our manual presses and allows you to accurately track parts production.

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

Pneumatic Arbor Press Die Sets

Die Sets

An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.

All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.

CONTACT US FOR MORE DETAILS

Arbor Press Value Added Services

Value Added Services

Your design or our design, from concept to completion, let JT&M Inc. be your value added supplier.

Due to increasing demand from our customers, JT&M, Inc. is offering “Value Added Services” to better meet your needs for “One Stop Shopping” and “Turn Key Systems”.

Whether it’s a simple tapped hole in the end of a ram on one of our presses, or as complex as a complete die set or press assembly system, JT&M Inc. has equipment set up and ready for a quick turnaround utilizing the latest software, most common tooling, and fixturing available in manufacturing today.

Value added services
