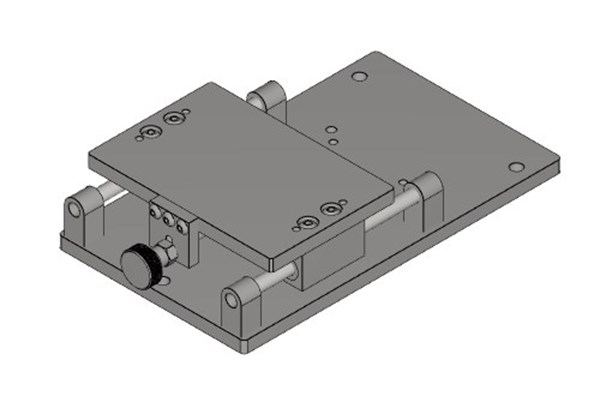

Multi-Position Fixture for AP-810 Arbor Press
Multi-Position Fixture for AP-810 Arbor Press
Build Custom CAD Model

JT&M - Multi Position Fixture For AP-810 Presses - Model #0632

SKU 0632

$521.00
Need something more specific?
Request a Quote JTM Engineering Support
Product Information

Description

The multi-position fixture 0632 consists of a ground steel platen that can be indexed out from under the press ram to provide improved access to the fixture. This platen rides on precision-fitted guide pins and bronze bushings. An adjustment screw is provided for accurate end stop positioning under the press ram. The multi-position fixture is a self-contained unit that can be mounted to our presses with (2) screws.

0632 is used with the AP-810 Manual Presses Only

Features:

• Ground Steel Platen
• Adjustment Screw
• Self-Contained Unit
• Easily Mounted
