AP-810-RR-AH-FS 1/2 Ton Manual Full Stroke Adjustable Handle Lever Press

Select Product Specifications
Price: $1,379.00

In Stock
Qty:
Qty:
In Stock

Additional Product Information

Quick Overview

One of many versions in the AP-810-RR manual press series.

  AP-810-RR-AH-FS
Force capacity  1/2 ton
Max stroke length  9.5"
Throat depth  2.76"
Base length  7.06"
Base width  4.06"
Height  11.49"

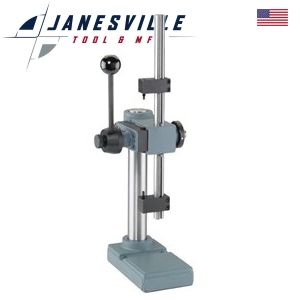

1/2 Ton Hand Press Machine AP-810-RR-AH-FS
    • 100% manufactured in the USA
    • FREE application testing
    • Build to YOUR specifications
CONTACT us to build your press

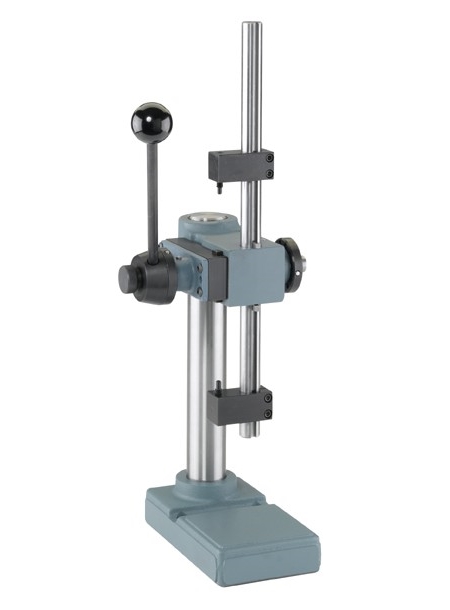

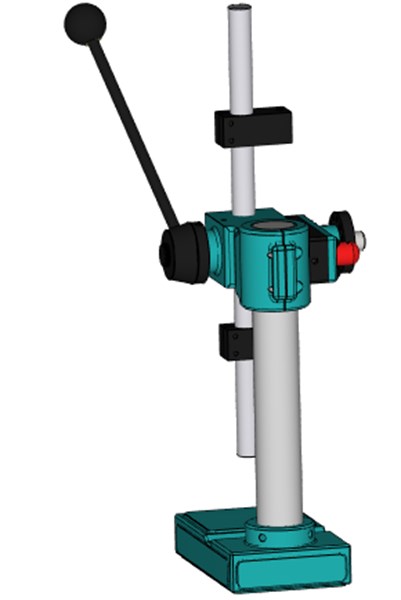

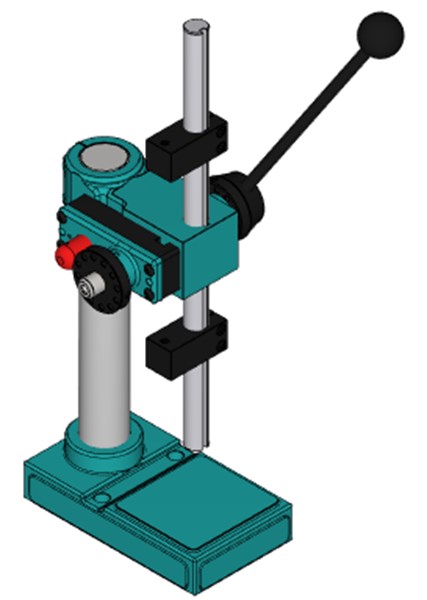

The AP-810-RR-AH-FS 1/2 ton round ram adjustable lever arbor press is rated to withstand 1000 lbs. of force. This precision assembly press is ideal for pressing, punching, small parts assembly, shearing, crimping and staking. The head of the press can be adjusted for height with (2) clamping screws. The press contains a 3/4" diameter keyed ram that is 14-3/4" long, which will enable the user a taller column for longer strokes.

Description

You can configure each model individually by selecting the base model plus any additional attachments.

You may purchase the AP-810-RR 1/2 ton press base model or choose from 3 other arrangements:

Browse all precision arbor manual presses for custom manufacturing from Janesville Tool & Manufacturing.

Literature & Downloads

View the AP-810-RR dimensional drawing

View the AP-810-RR brochure

View manual press options

View the 2019 price list

Download the owner's manual

Options

Adjustable Down Stop for AP-810-RR-AH-FS Precision Hand Arbor Press

Adjustable Down Stop

The Adjustable Down Stop is designed to clamp anywhere onto the ram of the press. An adjusting screw is supplied in the unit to assure accurate down stop position with every cycle.

Model 967-10-Adjustable Down Stop

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

AP-810-RR-AH-FS Precision Mechanical Press Up-Stroke Limiter

Up-Stroke Limiter

Like the Adjustable Down Stop, the Up-Stroke Limiter clamps onto the ram of the press at any position. It is designed to limit the travel of the up-stroke in order to increase press productivity.

Model 967-9 Up-Stroke Limiter

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

AP-810-RR-AH-FS Mechanical Arbor Press Adjustable Handle Model

Adjustable Handle Model

The Left/Right Adjustable Handle Press was designed to benefit the left-handed production worker, but it also can come in handy when the operator needs to hold tooling or parts with their right hand and operate the press from the left for assembly convenience and flow. The handle can be adjusted on either side in 30° increments without removing the ram of the press.

Model AP-810-RR Adjustable Handle Kit

THIS MODEL ALREADY HAS THE ADJUSTABLE HANDLE ATTACHMENT. CONTACT US FOR MORE DETAILS

Resettable Counter and Bracket for AP-810-RR-AH-FS Manual Arbor Press

Resettable Counter & Bracket

This Counter attaches to many of our manual presses and allows you to accurately track parts production.

Model PC-810-RR Resettable Counter

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

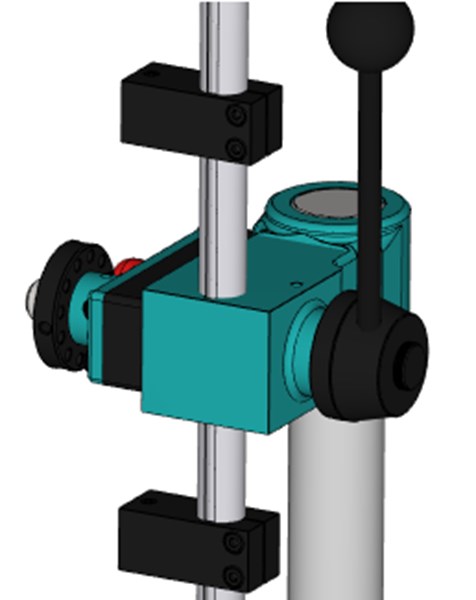

Full Stroke Lock for AP-810-RR-AH-FS Arbor Press

Full Stroke Lock Model FS

JT&M Inc.’s full stroke mechanism presses are designed to eliminate the production of inferior parts caused by incomplete pressing. With the use of an anti-return lock system, the operator cannot return the stroke before the operation is complete. The lock is active over the whole stroke, not just the last part of the stroke. The FS presses are equipped with an Adjustable Down Stop, Up-Stroke Limiter, and a lock release knob which can be used if the pressing operation needs to be aborted to avoid the making of a defective part. With repeat accuracy of +/-.005, the presses are ideal for small-parts production and precision assembly by installing a line of them each tooled for a specific operation.

Full Stroke Mechanism

THIS MODEL ALREADY HAS THE ADJUSTABLE HANDLE ATTACHMENT. CONTACT US FOR MORE DETAILS

AP-810-RR-AH-FS Pneumatic Arbor Press Die Sets

Die Sets

An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.

  • A36 Steel Die Sets
  • A36 Steel Die Set with Ball Bushings
  • Flanged Stock Two Post Die Sets
  • Power Die Sets
  • Clean Room Die Sets
  • Custom Die Sets

All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.

CONTACT US FOR MORE DETAILS

Custom AP-810-RR-AH-FS Arbor Press Value Added Services

Value Added Services

Your design or our design, from concept to completion, let JT&M Inc. be your value added supplier.

Due to increasing demand from our customers, JT&M, Inc. is offering “Value Added Services” to better meet your needs for “One Stop Shopping” and “Turn Key Systems”.

Whether it’s a simple tapped hole in the end of a ram on one of our presses, or as complex as a complete die set or press assembly system, JT&M Inc. has equipment set up and ready for a quick turnaround utilizing the latest software, most common tooling, and fixturing available in manufacturing today.

Value added services
