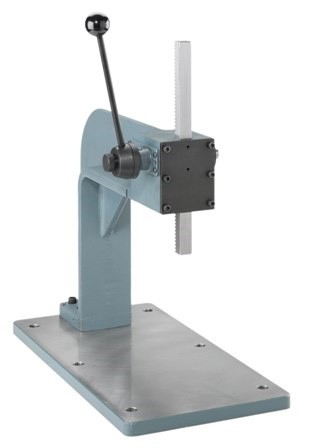

DT-6000-FS 1/8 Ton Manual Deep Throat Full Stroke Lever Press

Select Product Accessories
Price: $1,755.00

In Stock
Qty:
Qty:
In Stock

Additional Product Information

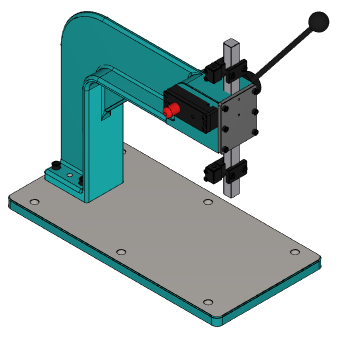

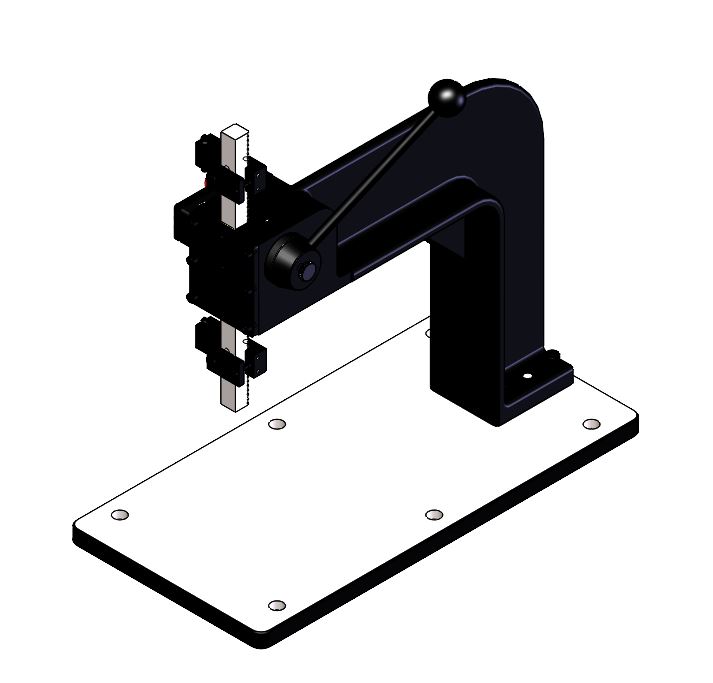

The full stroke version of the DT-6000 hand press.

  DT-6000-FS
Force capacity  1/8 ton
Max stroke length  12"
Throat depth  11.9"
Base length  19.5"
Base width  9.88"
Height  14.75"

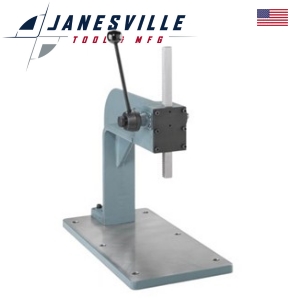

1/8 Ton Full Stroke Manual Hand Press DT-6000-FS
    • 100% manufactured in the USA
    • FREE application testing
    • Customized to YOUR specifications
Press Customization Form

The DT-6000-FS 1/8 ton deep throat full stroke lever arbor press allows the user throat clearance of 11 5/8" and overall height of 10" under the ram. This precision assembly press consists of a ground steel base and separate ductile iron column. If needed the clearance under the column can be increased by adding a riser block between the steel base and column flange.

The press has a force rating of 200 lbs and contains a 3/4" square ground ram with an adjustable gib for continual accuracy. This press is ideal for circuit board assembly work.

Check out all 1/8th ton arbor presses from Janesville Tool

Contact Janesville Tool with questions or for more information.

Description

You can configure each model individually by selecting the base model plus any additional attachments.

You may also purchase the base DT-6000 1/8 ton press model with no full stroke attachment.

Built tough for maximum durability and repeatability.

The DT-500-AH lever press may be customized for industrial assemblylight dutyclean roomsmaking jewelryplastics, or PEM nuts. Our presses can be built for all sorts of different purposes:

Browse all manual lever press machines available for custom manufacturing from Janesville Tool & Manufacturing.

Literature & Downloads

View the DT-6000 dimensional drawing

View the DT-6000 brochure

View manual press options

View the 2020 Price List

View the owner's manual

Options

Any of the following options can be purchased with these models.

Precision Mechanical Press Up-Stroke Limiter

Up-Stroke Limiter

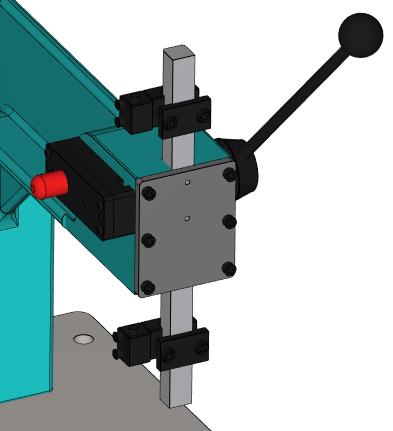

Like the Adjustable Down Stop, the Up-Stroke Limiter clamps onto the ram of the press at any position. It is designed to limit the travel of the up-stroke in order to increase press productivity.

Model SL Stroke Limiter

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

Pneumatic Arbor Press Die Sets

Die Sets

An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.

All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.

CONTACT US FOR MORE DETAILS

Arbor Press Value Added Services

Value Added Services

Your design or our design, from concept to completion, let JT&M Inc. be your value added supplier.

Due to increasing demand from our customers, JT&M, Inc. is offering “Value Added Services” to better meet your needs for “One Stop Shopping” and “Turn Key Systems”.

Whether it’s a simple tapped hole in the end of a ram on one of our presses, or as complex as a complete die set or press assembly system, JT&M Inc. has equipment set up and ready for a quick turnaround utilizing the latest software, most common tooling, and fixturing available in manufacturing today.

Value added services
