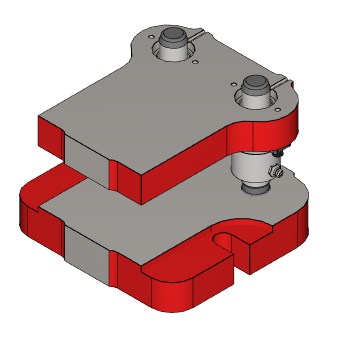

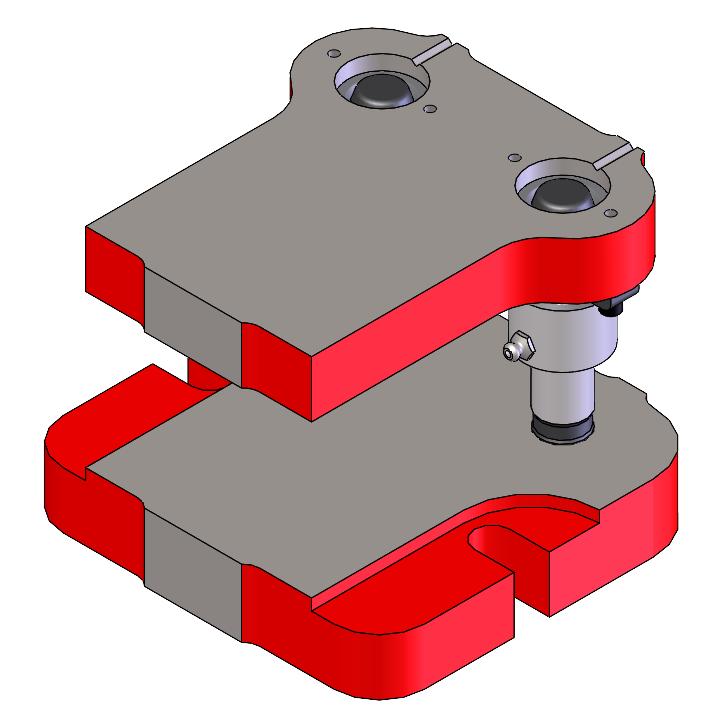

FL-0505 Flange Die Set
In Stock
PrintAdditional Product Information

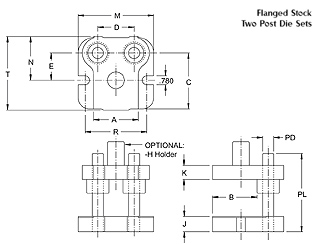

| Model | A | B | C | D | E | J | K | *PL | M | N | PD | R | T |
| FL-0404 | 4.00 | 4.00 | 5.00 | 3.25 | 2.44 | 1.38 | 1.25 | 6.00 | 6.75 | 4.00 | 1.00 | 5.50 | 6.56 |
| FL-0504 | 5.00 | 4.00 | 5.00 | 4.00 | 2.44 | 1.38 | 1.25 | 6.00 | 8.00 | 4.00 | 1.00 | 6.25 | 6.75 |
| FL-0505 | 5.00 | 5.00 | 6.00 | 4.00 | 2.69 | 1.50 | 1.25 | 6.00 | 8.00 | 4.25 | 1.00 | 6.25 | 7.75 |
| FL-0604 | 6.50 | 4.00 | 5.00 | 5.12 | 2.12 | 1.50 | 1.25 | 6.00 | 10.00 | 3.69 | 1.00 | 8.62 | 6.75 |
| FL-0606 | 6.50 | 6.00 | 7.00 | 5.12 | 3.19 | 1.50 | 1.25 | 6.00 | 10.00 | 4.75 | 1.00 | 8.62 | 8.75 |
| FL-0707 | 7.50 | 7.00 | 8.00 | 6.50 | 3.69 | 1.50 | 1.25 | 6.00 | 10.75 | 5.25 | 1.00 | 9.38 | 9.75 |
| FL-0808 | 8.50 | 8.00 | 9.00 | 7.75 | 4.19 | 1.50 | 1.25 | 6.00 | 12.00 | 5.75 | 1.00 | 10.25 | 10.75 |
Flanged Stock Two Post Die Sets are flame cut, stress relieved, and surface ground. Hardened steel ground bushings are honed to exact tolerance.
Shop all die set for press tools available for sale online from Janesville Tool & Manufacturing.
Description
*Product specifications and pricing subject to change without notice.
Literature & Downloads
View the 2019 price list
Options
The following options can be purchased:
• Non Standard Pin Length
• Assembly Charge, Die Set to Press (Add-A Suffix to Die Set Model #)
• Holder 1-1/2" DIA x 2-1/8" Lg (Add-H Suffix to Die Set Model #)
