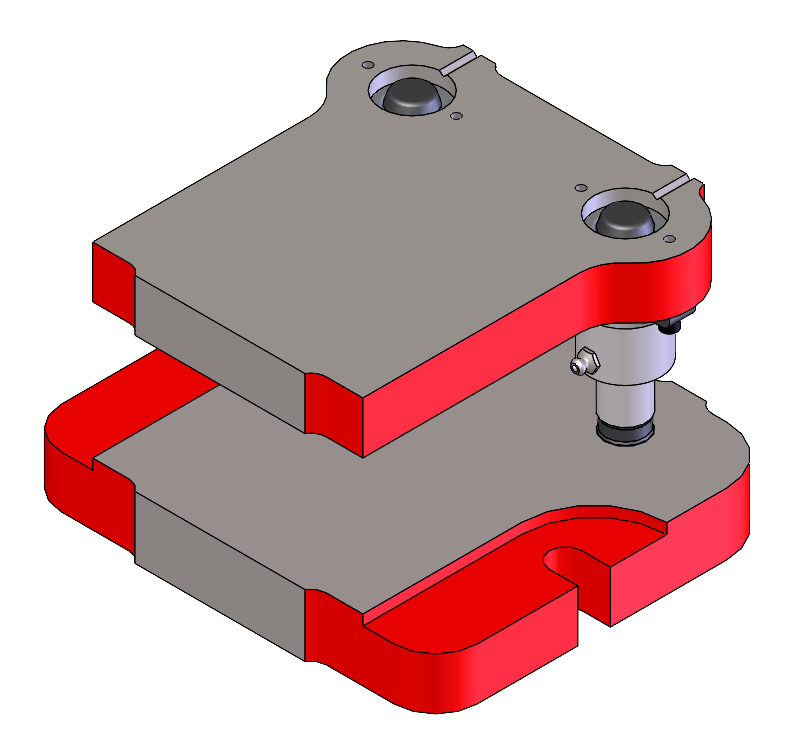

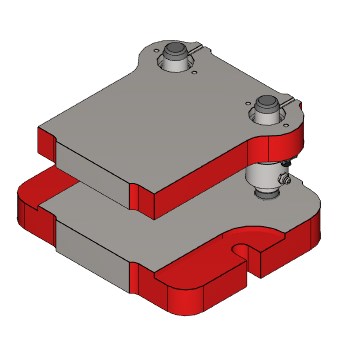

JT&M - Flange Die Set - Model #FL-0606

$852.00 SKU: FL-0606

Qty:

Need something more specific?

Specifications

Flanged Stock Two Post Die Set Diagram

Model A B C D E J K *PL M N PD R T
FL-0303 3.00 3.00 3.69 3.25 1.75 1.00 1.00 5.00 6.75 2.8 0.75 5.00 4.81
FL-0404 4.00 4.00 5.00 3.25 2.44 1.38 1.25 6.00 6.75 4.00 1.00 5.50 6.56
FL-0504 5.00 4.00 5.00 4.00 2.44 1.38 1.25 6.00 8.00 4.00 1.00 6.25 6.75
FL-0505 5.00 5.00 6.00 4.00 2.69 1.50 1.25 6.00 8.00 4.25 1.00 6.25 7.75
FL-0604 6.50 4.00 5.00 5.12 2.12 1.50 1.25 6.00 10.00 3.69 1.00 8.62 6.75
FL-0606 6.50 6.00 7.00 5.12 3.19 1.50 1.25 6.00 10.00 4.75 1.00 8.62 8.75
FL-0707 7.50 7.00 8.00 6.50 3.69 1.50 1.25 6.00 10.75 5.25 1.00 9.38 9.75
FL-0808 8.50 8.00 9.00 7.75 4.19 1.50 1.25 6.00 12.00 5.75 1.00 10.25 10.75



Flanged Stock Two Post Die Sets are flame cut, stress relieved, and surface ground. Hardened steel ground bushings are honed to exact tolerance.

Browse die sets for press tools available for sale from Janesville Tool & Manufacturing.

Description

Janesville Tool die sets are available for customization:

Get Customized Die Sets

  • Longer Pins Available

*Product specifications and pricing subject to change without notice.

Options

Janesville Tool can customize any die set to meet your needs. Contact us for more information.
