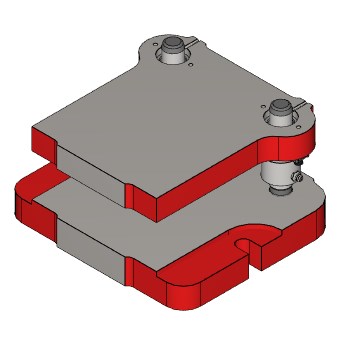

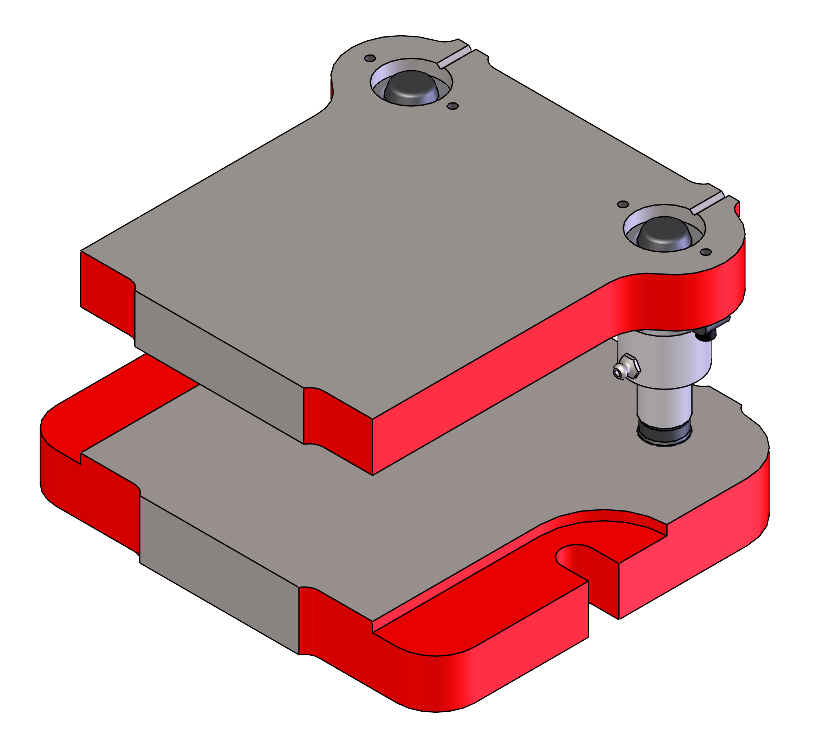

FL-0707 Flange Die Set

Select Product Accessories
Price: $786.00

In Stock
Qty:
Qty:
In Stock

Additional Product Information

Flanged Stock Two Post Die Set Diagram

Model A B C D E J K *PL M N PD R T
FL-0404 4.00 4.00 5.00 3.25 2.44 1.38 1.25 6.00 6.75 4.00 1.00 5.50 6.56
FL-0504 5.00 4.00 5.00 4.00 2.44 1.38 1.25 6.00 8.00 4.00 1.00 6.25 6.75
FL-0505 5.00 5.00 6.00 4.00 2.69 1.50 1.25 6.00 8.00 4.25 1.00 6.25 7.75
FL-0604 6.50 4.00 5.00 5.12 2.12 1.50 1.25 6.00 10.00 3.69 1.00 8.62 6.75
FL-0606 6.50 6.00 7.00 5.12 3.19 1.50 1.25 6.00 10.00 4.75 1.00 8.62 8.75
FL-0707 7.50 7.00 8.00 6.50 3.69 1.50 1.25 6.00 10.75 5.25 1.00 9.38 9.75
FL-0808 8.50 8.00 9.00 7.75 4.19 1.50 1.25 6.00 12.00 5.75 1.00 10.25 10.75



Flanged Stock Two Post Die Sets are flame cut, stress relieved, and surface ground. Hardened steel ground bushings are honed to exact tolerance.

Shop all die sets for press tools available for sale online from Janesville Tool & Manufacturing.

Description

Die sets from Janesville Tool can be customized for specific applications:

Get Customized Die Sets

  • Longer Pins Available

*Product specifications and pricing subject to change without notice.

Literature & Downloads

View the 2020 Price List

See the Flanged Two Post Die Set Spec Sheet



Options

Janesville Tool can customize any die set to meet your needs. Contact us for more information.
