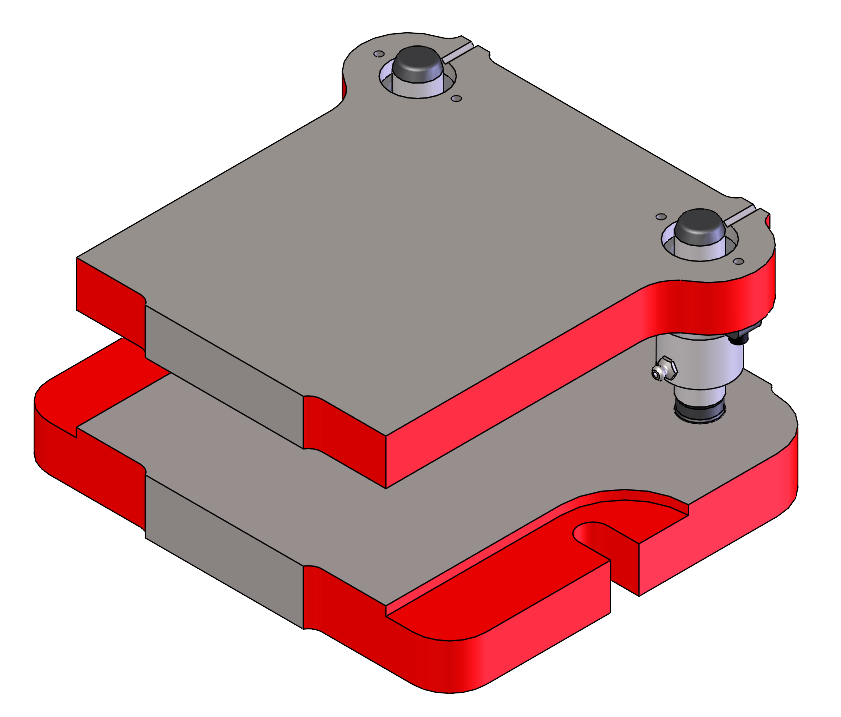

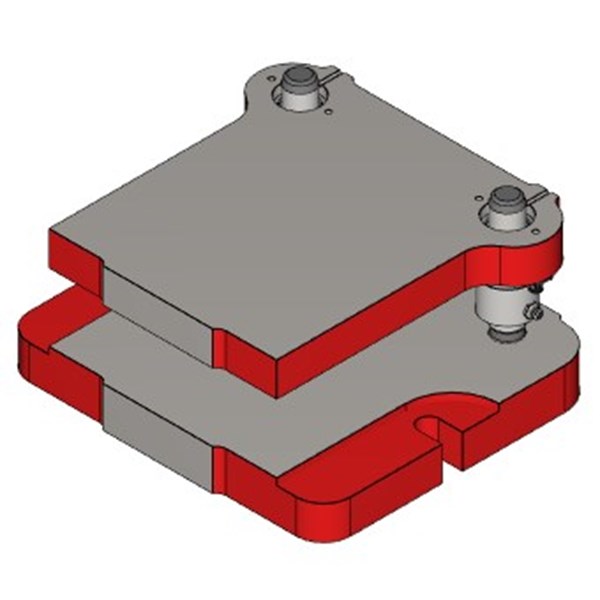

JT&M - Flange Die Set - Model #FL-0808
SKU FL-0808
$1,025.00
Need something more specific?
Specs
Product Information
Literature + Downloads
Options
Specifications
| Model | A | B | C | D | E | J | K | *PL | M | N | PD | R | T |
| FL-0303 | 3.00 | 3.00 | 3.69 | 3.25 | 1.75 | 1.00 | 1.00 | 5.00 | 6.75 | 2.88 | 0.75 | 5.00 | 4.81 |
| FL-0404 | 4.00 | 4.00 | 5.00 | 3.25 | 2.44 | 1.38 | 1.25 | 6.00 | 6.75 | 4.00 | 1.00 | 5.50 | 6.56 |
| FL-0504 | 5.00 | 4.00 | 5.00 | 4.00 | 2.44 | 1.38 | 1.25 | 6.00 | 8.00 | 4.00 | 1.00 | 6.25 | 6.75 |
| FL-0505 | 5.00 | 5.00 | 6.00 | 4.00 | 2.69 | 1.50 | 1.25 | 6.00 | 8.00 | 4.25 | 1.00 | 6.25 | 7.75 |
| FL-0604 | 6.50 | 4.00 | 5.00 | 5.12 | 2.12 | 1.50 | 1.25 | 6.00 | 10.00 | 3.69 | 1.00 | 8.62 | 6.75 |
| FL-0606 | 6.50 | 6.00 | 7.00 | 5.12 | 3.19 | 1.50 | 1.25 | 6.00 | 10.00 | 4.75 | 1.00 | 8.62 | 8.75 |
| FL-0707 | 7.50 | 7.00 | 8.00 | 6.50 | 3.69 | 1.50 | 1.25 | 6.00 | 10.75 | 5.25 | 1.00 | 9.38 | 9.75 |
| FL-0808 | 8.50 | 8.00 | 9.00 | 7.75 | 4.19 | 1.50 | 1.25 | 6.00 | 12.00 | 5.75 | 1.00 | 10.25 | 10.75 |

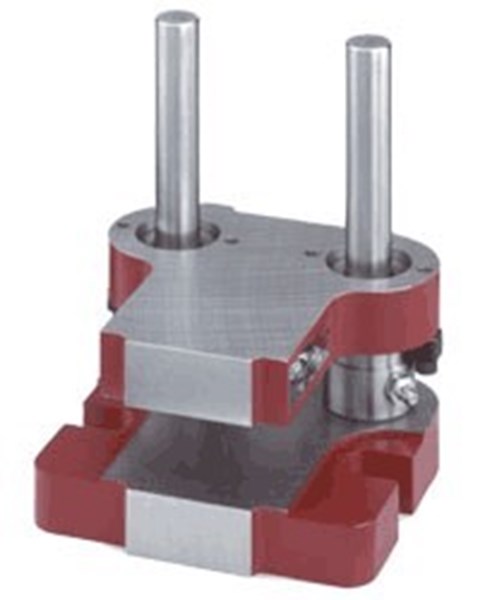

Flanged Stock Two Post Die Sets are flame cut, stress relieved, and surface ground. Hardened steel ground bushings are honed to exact tolerance.
Browse die sets for press tools available for sale online from Janesville Tool & Manufacturing.
Description
- Longer Pins Available
*Product specifications and pricing subject to change without notice.
Options
Janesville Tool can customize any die set to meet your needs. Contact us for more information.
