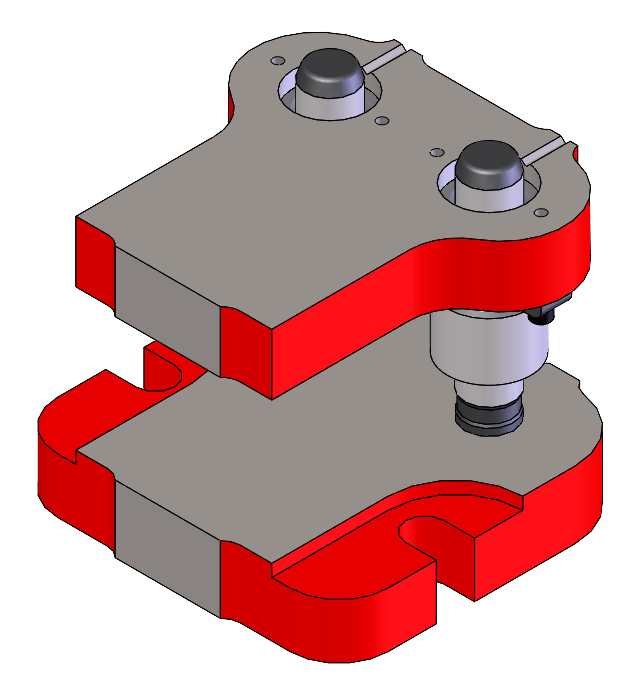

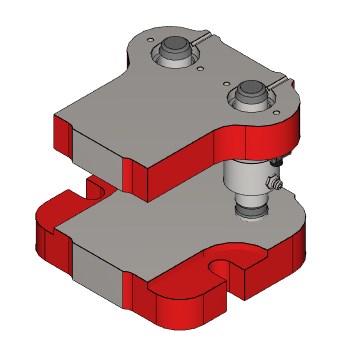

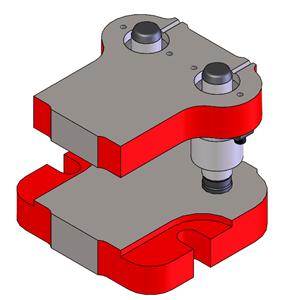

JT&M - Flange Die Set - Model #FL-0404
SKU FL-0404
$596.00
Need something more specific?
Specs
Product Information
Literature + Downloads
Specifications
| Model | A | B | C | D | E | J | K | *PL | M | N | PD | R | T |
| FL-0303 | 3.00 | 3.00 | 3.69 | 3.25 | 1.75 | 1.00 | 1.00 | 5.00 | 6.75 | 2.88 | 0.75 | 5.00 | 4.81 |
| FL-0404 | 4.00 | 4.00 | 5.00 | 3.25 | 2.44 | 1.38 | 1.25 | 6.00 | 6.75 | 4.00 | 1.00 | 5.50 | 6.56 |
| FL-0504 | 5.00 | 4.00 | 5.00 | 4.00 | 2.44 | 1.38 | 1.25 | 6.00 | 8.00 | 4.00 | 1.00 | 6.25 | 6.75 |
| FL-0505 | 5.00 | 5.00 | 6.00 | 4.00 | 2.69 | 1.50 | 1.25 | 6.00 | 8.00 | 4.25 | 1.00 | 6.25 | 7.75 |
| FL-0604 | 6.50 | 4.00 | 5.00 | 5.12 | 2.12 | 1.50 | 1.25 | 6.00 | 10.00 | 3.69 | 1.00 | 8.62 | 6.75 |
| FL-0606 | 6.50 | 6.00 | 7.00 | 5.12 | 3.19 | 1.50 | 1.25 | 6.00 | 10.00 | 4.75 | 1.00 | 8.62 | 8.75 |
| FL-0707 | 7.50 | 7.00 | 8.00 | 6.50 | 3.69 | 1.50 | 1.25 | 6.00 | 10.75 | 5.25 | 1.00 | 9.38 | 9.75 |
| FL-0808 | 8.50 | 8.00 | 9.00 | 7.75 | 4.19 | 1.50 | 1.25 | 6.00 | 12.00 | 5.75 | 1.00 | 10.25 | 10.75 |
Flanged Stock Two Post Die Sets are flame cut, stress relieved, and surface ground. Hardened steel ground bushings are honed to exact tolerance.
Shop all die sets for press tools available for sale from Janesville Tool & Manufacturing.
Description
Janesville Tool customizes die sets for specific applications:
- Longer Pins Available
*Product specifications and pricing subject to change without notice.
FL-0303 Flange Die Set
FL-0504 Flange Die Set
FL-0505 Flange Die Set
FL-0604 Flange Die Set
FL-0606 Flange Die Set
FL-0707 Flange Die Set
