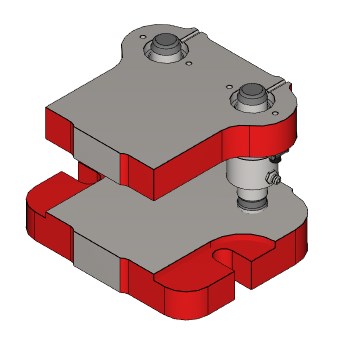

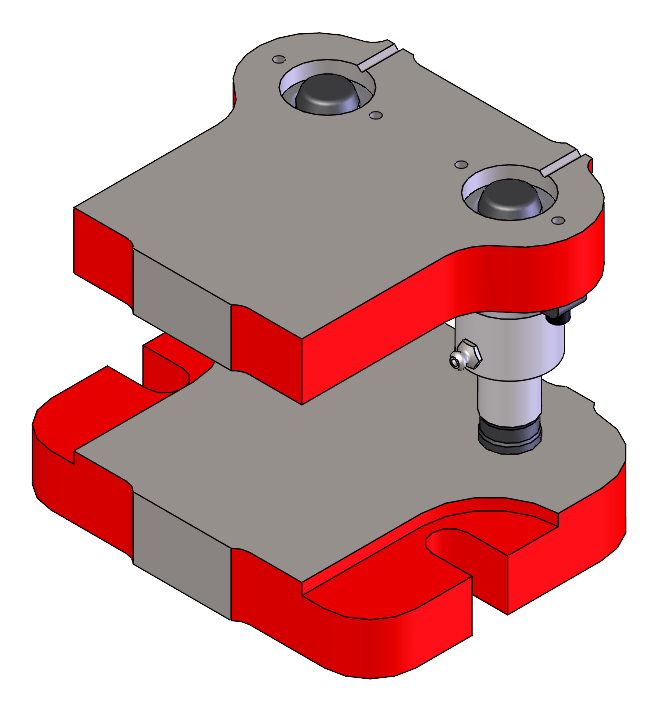

JT&M - Flange Die Set - Model #FL-0504
$593.00
SKU: FL-0504
Qty:
Need something more specific?
Specifications
| Model | A | B | C | D | E | J | K | *PL | M | N | PD | R | T |
| FL-0303 | 3.00 | 3.00 | 3.69 | 3.25 | 1.75 | 1.00 | 1.00 | 5.00 | 6.75 | 2.88 | 0.75 | 5.00 | 4.81 |
| FL-0404 | 4.00 | 4.00 | 5.00 | 3.25 | 2.44 | 1.38 | 1.25 | 6.00 | 6.75 | 4.00 | 1.00 | 5.50 | 6.56 |
| FL-0504 | 5.00 | 4.00 | 5.00 | 4.00 | 2.44 | 1.38 | 1.25 | 6.00 | 8.00 | 4.00 | 1.00 | 6.25 | 6.75 |
| FL-0505 | 5.00 | 5.00 | 6.00 | 4.00 | 2.69 | 1.50 | 1.25 | 6.00 | 8.00 | 4.25 | 1.00 | 6.25 | 7.75 |
| FL-0604 | 6.50 | 4.00 | 5.00 | 5.12 | 2.12 | 1.50 | 1.25 | 6.00 | 10.00 | 3.69 | 1.00 | 8.62 | 6.75 |
| FL-0606 | 6.50 | 6.00 | 7.00 | 5.12 | 3.19 | 1.50 | 1.25 | 6.00 | 10.00 | 4.75 | 1.00 | 8.62 | 8.75 |
| FL-0707 | 7.50 | 7.00 | 8.00 | 6.50 | 3.69 | 1.50 | 1.25 | 6.00 | 10.75 | 5.25 | 1.00 | 9.38 | 9.75 |
| FL-0808 | 8.50 | 8.00 | 9.00 | 7.75 | 4.19 | 1.50 | 1.25 | 6.00 | 12.00 | 5.75 | 1.00 | 10.25 | 10.75 |
Flanged Stock Two Post Die Sets are flame cut, stress relieved, and surface ground. Hardened steel ground bushings are honed to exact tolerance.
Browse all press die sets for online purchase or custom manufacturing from Janesville Tool & Manufacturing.
Description
Any die set from Janesville Tool can be customized for specific applications:
- Longer Pins Available
*Product specifications and pricing subject to change without notice.
FL-0404 Flange Die Set
