JT&M - 1/4 Ton Deep Throat Precision Pneumatic Press – Model #AP-1066

$6,198.00 SKU: AP-1066

Perfect Your Press! (7) Add-on Product Accessories Available

Select my add-ons

Qty:

Need something more specific?

Specifications

Stage Force w/ 3" inch diameter cylinder at:*

  AP-1019AP-1066
Force capacity  1/8 tons  1/4 tons
Force at 60 psi  114 lbs 396 lbs
Force at 80 psi  152 lbs 528 lbs
Force at 100 psi  190 lbs 660 lbs
Stage cylinder  1 1
Throat depth  6.04" 6.04"
Base length  8.22" 8.22"
Base width  12" 12"
Height  23.56" 23.54"

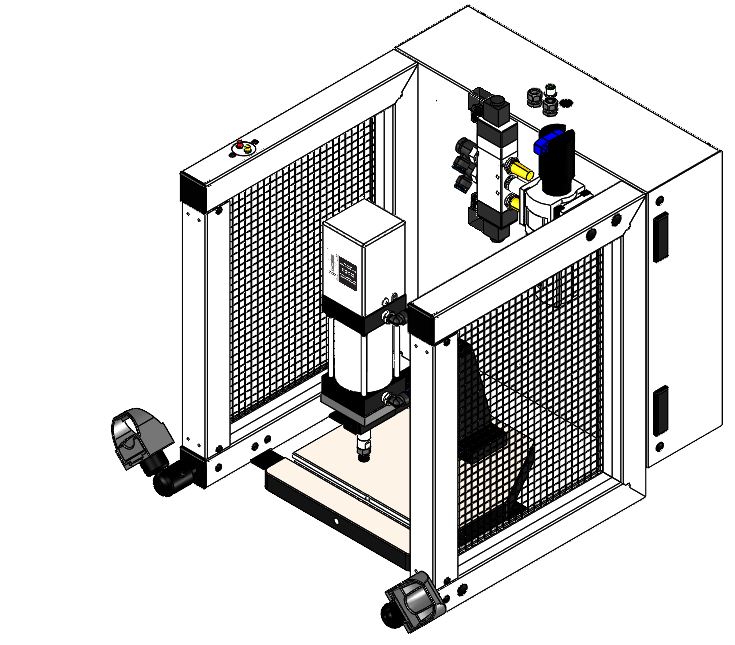

Pneumatic Arbor Press AP-1066
    • 100% manufactured in the USA
    • FREE application testing
    • Customized to YOUR specifications
Press Customization Form

he AP-1066 1/4 ton pneumatic arbor press is ideal for precision assembly work, staking, shearing, and for punching light gauge metal or plastic. It utilizes the same cast ductile iron frame as our popular DT-500 1/4 ton manual arbor press. This press consists of a ground cast base and a separate column. The clearance under the column can be increased by adding a riser block between the base and the column on special request.

The AP-1066 1/4 pneumatic air press comes equipped with dual hand anti-tie-down/anti-repeat controls and a three-inch stroke length, T-Slot Table, as well as an adjustable down stop/anti-rotate mechanism.

The AP-1066 comes standard with:
- Adjustable Opto-Touch Buttons.
- Three-Sided Guarding.
- Internal Timer Kit.
- Air Filter and Regulator.
- Anti-Repeat - Anti-Tie Down Controls.
- Adjustable Down Stop and Anti-Rotate Mechanism.

Contact Janesville Tool with questions or for more information.

Description

The AP-1066 1/4 ton press comes standard with dual hand anti-tie-down/anti repeat controls, a three-inch stroke length, an adjustable down stop/ anti-rotate mechanism.  The Banner Opto-Touch buttons are adjustable for operator comfort.  The AP series press also comes standard with a three-sided guard, air filter & regulator and internal timer.  The column height can be increased by adding a riser block between the base and the column on special request.

Options

Any of the following options can be purchased with these models.

Quick Exhaust Valve for Pneumatic Arbor Press

Quick Exhaust Valve

The valve allows exhaust air to be exhausted at the cylinder rather than the flow controls on the valve to speed up press cycle. The valve is recommended for use on the upstroke only.

Model 523 exhaust valve

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR

CONTACT US FOR MORE DETAILS

Tool Adapter for Pneumatic Arbor Presses

Tool Adapter

Our tool adapter is designed for easy assembly and disassembly of JT&M's die sets. The tool adapter threads into the ram of the cylinder with a choice of lengths:

Model TA Tool Adapters

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

Pneumatic Arbor Press Die Sets

Die Sets

An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.

All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.

CONTACT US FOR MORE DETAILS

Light Curtain forPneumatic Arbor Press

Light Curtain

The Light Curtain option for JT&M Inc. pneumatic presses comes standard with three-sided guarding and a 15” light curtain. If the light curtain is broken during operation, the pressing operation is stopped. This helps ensure complete operator and co-worker safety.

Model LC-0123 light curtain

Model LC-01235 light curtain

Model LC-678 light curtain

CONTACT US FOR MORE DETAILS

Load Cells for Arbor Presses

Force Monitoring

Force monitoring assures quality by monitoring force during the pressing process. Available on all pneumatic presses this option allows the user a “Good Window” indicator for the pressing cycle. The system utilizes a load cell with a digital readout and prox switch for end of stroke reading. If the pressing cycle is not within the “Good Window” parameters the press is locked out, indicating a bad pressing cycle, and a keyed reset is used to return the press cylinder.

Load Cells & Force Monitoring

CONTACT US FOR MORE DETAILS

Janesville Tool Value Added Service

Value Added Services

Your design or our design, from concept to completion, let JT&M Inc. be your value added supplier.

Due to increasing demand from our customers, JT&M, Inc. is offering “Value Added Services” to better meet your needs for “One Stop Shopping” and “Turn Key Systems”.

Whether it’s a simple tapped hole in the end of a ram on one of our presses, or as complex as a complete die set or press assembly system, JT&M Inc. has equipment set up and ready for a quick turnaround utilizing the latest software, most common tooling, and fixturing available in manufacturing today.

Value added services
