A-5453 1 3/4 Ton Four Post 3 Stage Pneumatic Arbor Press - Out Of Stock

Qty:
In Stock

Additional Product Information

One of three air presses in the A-5000 series.

  A-5453A-5302A-5604
Force capacity  1 3/4 tons 1 1/4 tons 2 1/2 tons
Force at 60 psi  2,718 lbs 1,812 lbs 3,624 lbs
Force at 80 psi  3,624 lbs 2,416 lbs 4,832 lbs
Force at 100 psi  4,530 lbs 3,020 lbs 6,040 lbs
Stage cylinder  3 2 4
Base length  12.25" 12.25" 12.25"
Base width  5.75" 5.75" 5.75"
Height  41.4" 35.2" 47.7"

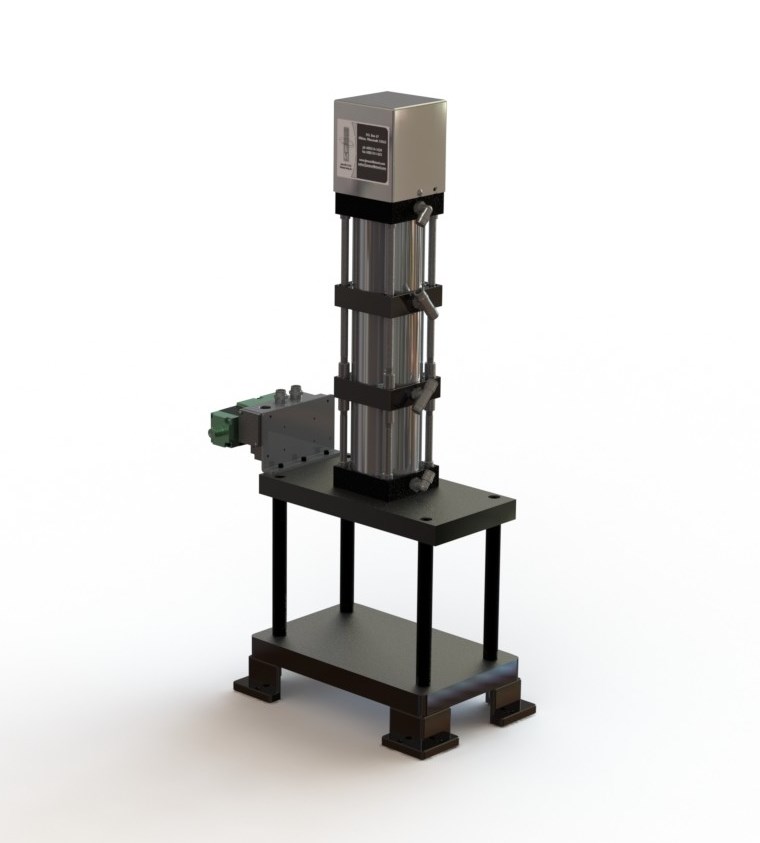

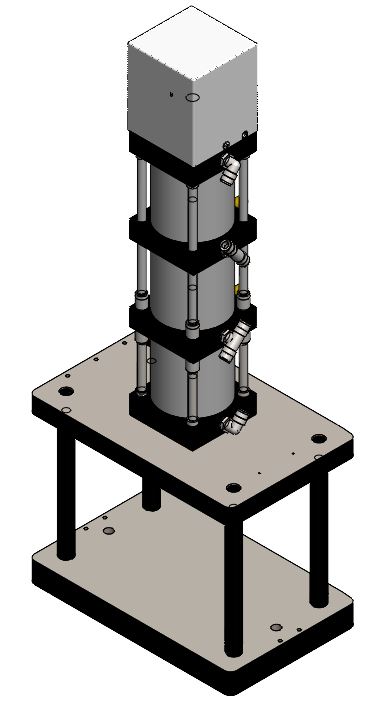

1 3/4 Ton Pneumatic Arbor Press A-5453
    • 100% manufactured in the USA
    • FREE application testing
    • Customized to YOUR specifications
Press Customization Form

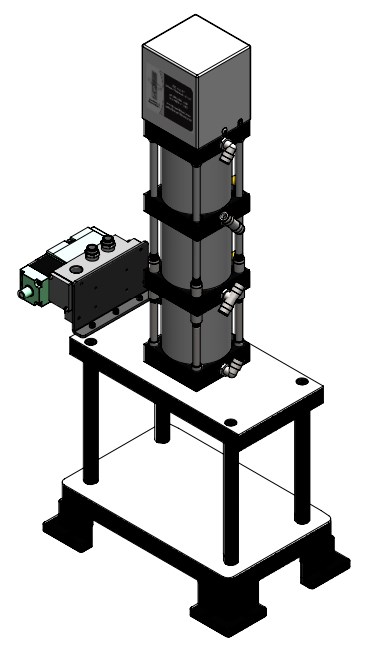

The A-5453 1 3/4 ton pneumatic arbor press consists of a precision machined top plate and a four-post bottom casting that incorporates a multistage cylinder, allowing the user a force up to 6120 pounds. Dual hand photo-optic anti-tie down / anti-repeat controls are standard. The control box is separate and may be mounted in front of the press or on the side of a table.

The A-5453 1 3/4 ton arbor air press comes standard with a three-inch stroke. Alternate stroke lengths are available upon request.

Check out all 1 3/4 ton arbor presses from Janesville Tool

Contact Janesville Tool with questions or for more information.

Description

You can configure each model individually by selecting the base model plus any additional attachments. If you need to purchase more than one of the same attachment, please go to the Options tab to the right.

*Pneumatic presses usually ship in 1 to 2 business days.

*Product specifications and pricing subject to change without notice.

*Includes adjustable down stop/anti-rotate mechanism.

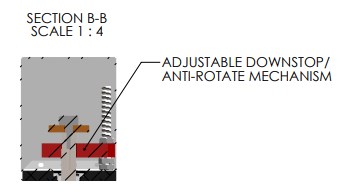

Adjustable Down Stop for A-5453 Pneumatic Arbor Press

Press dimensions

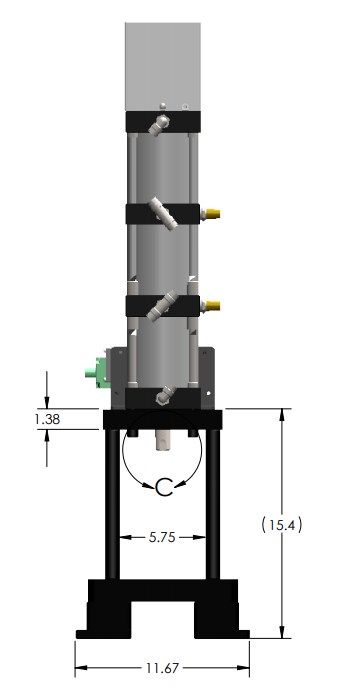

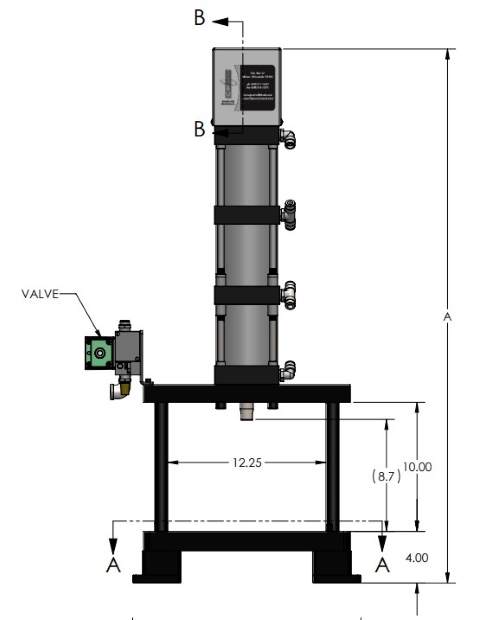

A-5453 Pneumatic Arbor Press Dimensions Front ViewA-5453 Pneumatic Arbor Press Side View

Notes:

  1. A-5353 shown
  2. 10" long posts standard - optional lengths available

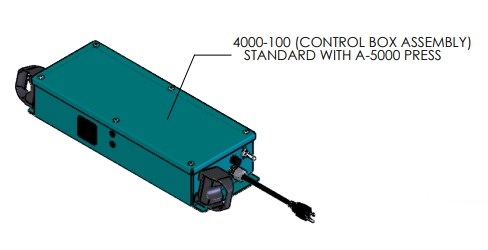

  3. 4000-100 control box: 4.00 X 8.25 X 23.69
Model # DIM A Valve Force @ 80 PSI
A-5302 35.2 511 2416
A-5353 41.4 546 3624
A-5604 47.7 546 4832

View a full printable A-5000 Series dimensional drawing

Features

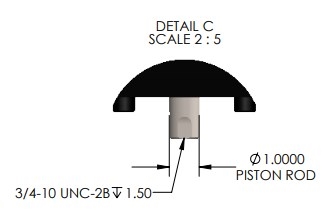

Control Box for A-5453 Pneumatic Arbor PressControl Knob for A-5453 Pneumatic Arbor Press

Maintenance Guidelines

Thanks to its unique design, this press requires virtually no maintenance. Clean, dry air is required for operation. (Lubricated air may be used, but must be used for the life of the press.)

Control Module

The life expectancy for the control module (#540) is ten million cycles. Replacing the module on a yearly basis will ensure production reliability and avoid costly downtime.

Flow Controls

To alter the ram descent speed on this JT&M Press, adjust the screw marked B Located on the valve at the rear of the press. To alter the ram ascent speed, adjust screw A. (The ram retraction speed has been preset by the factory.) Rotate the screws clockwise to decrease the speed of the ram.

Press Operation

To operate the press, push palm buttons in at the same time. Hold the palm buttons in until the downstroke is completed. Consult the service manual for complete safety instructions.

Shop all pneumatic arbor press machines available for sale from Janesville Tool & Manufacturing.

Options

Air Filter & Regulator for A-5453 Precision Arbor Press

Air Filter/Regulators

Recommended for the A-5453 pneumatic arbor press to remove moisture and to allow the user accurate air supply pressure.

Model 544 air filter/regulator

Used for the A-5453. Comes standard with 1/2" N.P.T ports.

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

A-5453 Precision Pneumatic Press Timer Delay Kit

Timer Delay Kits

Allows user delay time of .1 to 999 hours. Compatible with the A-5453 arbor press.

Model T-10BP timer delay kit

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

A-5453 Precision Arbor Press Photo Optic Palm Buttons

Dual Photo Optic Palm Buttons

Buttons are ergonomically designed to eliminate hand, wrist, and arm stress associated with repeated switch operation and require no physical pressure to operate the A-5453 press.

Model -OT dual palm buttons

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

Quick Exhaust Valve for A-5453 Pneumatic Arbor Press

Quick Exhaust Valve

The valve allows exhaust air to be exhausted at the cylinder rather than the flow controls on the valve to speed up press cycle. The valve is recommended for use on the upstroke only.

Model 523 exhaust valve

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

Tool Adapter for A-5453 Pneumatic Arbor Press

Tool Adapter

Our tool adapter is designed for easy assembly and disassembly of JT&M's die sets. The tool adapter threads into the ram of the cylinder with a 1/2-13" thread for 1-3/4" and 3" bore for the A-5453 arbor press. Choice of lengths include 1-1/2", 2-1/2", 3-1/2", & 4-1/2".

Model TA Tool Adapter 3/4" - 1 1/2" Length

Model TA Tool Adapter 3/4" - 2 1/2" Length

Model TA Tool Adapter 3/4" - 3 1/2" Length

Model TA Tool Adapter 3/4" - 4 1/2" Length

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

Air Press Guarding for A-5453 Arbor Press

Air Press Guarding

Cost-effective guarding is available for the A-5453 arbor press. The rigidity of the wire mesh, aluminum interlocking frame, and quality construction will prevent any intrusion during press operation.

Model G-01235 3-sided press guard

Note—Point of operation safety guarding or devices is the responsibility of the employer (user) of the machine as provided in ANSI B-11:1 as published by the American National Standards Institute.

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

A-5453 Pneumatic Arbor Press Die Sets

Die Sets

An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.

  • A36 Steel Die Sets
  • A36 Steel Die Set with Ball Bushings
  • Flanged Stock Two Post Die Sets
  • Power Die Sets
  • Clean Room Die Sets
  • Custom Die Sets

All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.

CONTACT US FOR MORE DETAILS

Light Curtain for A-5453 Pneumatic Arbor Press

Light Curtain

The Light Curtain option for JT&M Inc. pneumatic presses comes standard with three-sided guarding and a 15” light curtain. If the light curtain is broken during operation, the pressing operation is stopped. This helps ensure complete operator and co-worker safety.

Model LC-01235 light curtain

CONTACT US FOR MORE DETAILS

Force Monitoring

Force monitoring assures quality by monitoring force during the pressing process. Available on all pneumatic presses this option allows the user a “Good Window” indicator for the pressing cycle. The system utilizes a load cell with a digital readout and prox switch for end of stroke reading. If the pressing cycle is not within the “Good Window” parameters the press is locked out, indicating a bad pressing cycle, and a keyed reset is used to return the press cylinder.

Model FM-100-2K

Model FM-100-10K

CONTACT US FOR MORE DETAILS

Custom A-5453 Arbor Press Value Added Services

Value Added Services

Your design or our design, from concept to completion, let JT&M Inc. be your value added supplier.

Due to increasing demand from our customers, JT&M, Inc. is offering “Value Added Services” to better meet your needs for “One Stop Shopping” and “Turn Key Systems”.

Whether it’s a simple tapped hole in the end of a ram on one of our presses, or as complex as a complete die set or press assembly system, JT&M Inc. has equipment set up and ready for a quick turnaround utilizing the latest software, most common tooling, and fixturing available in manufacturing today.

Value added services
