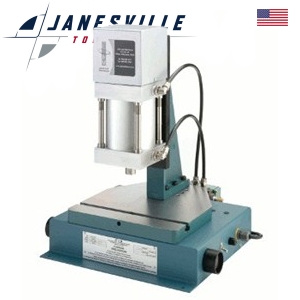

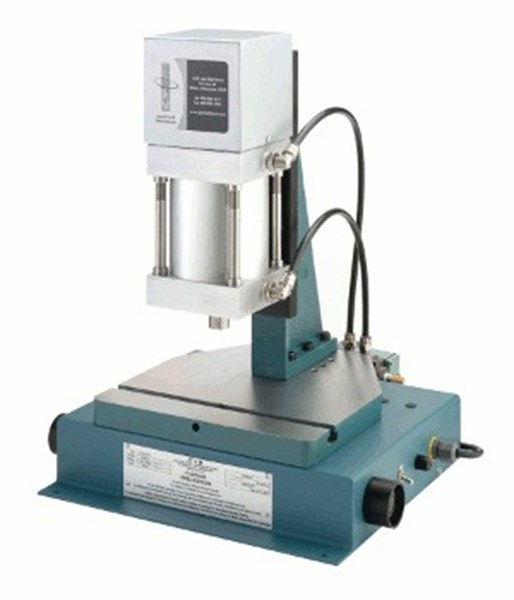

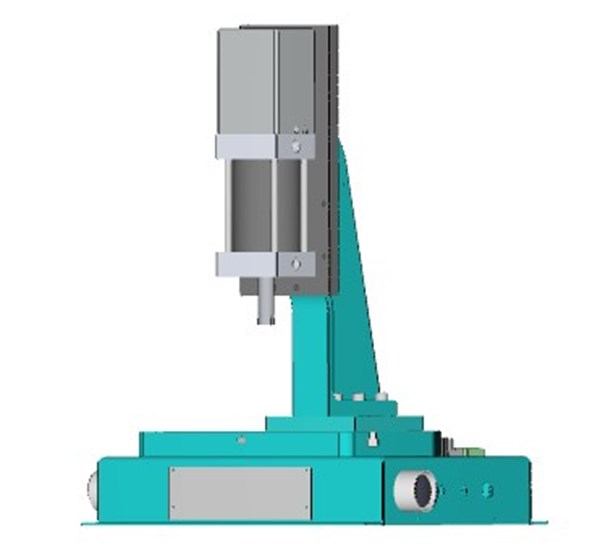

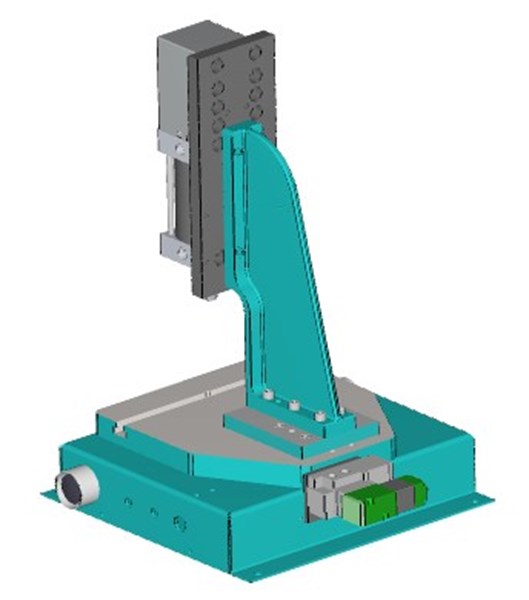

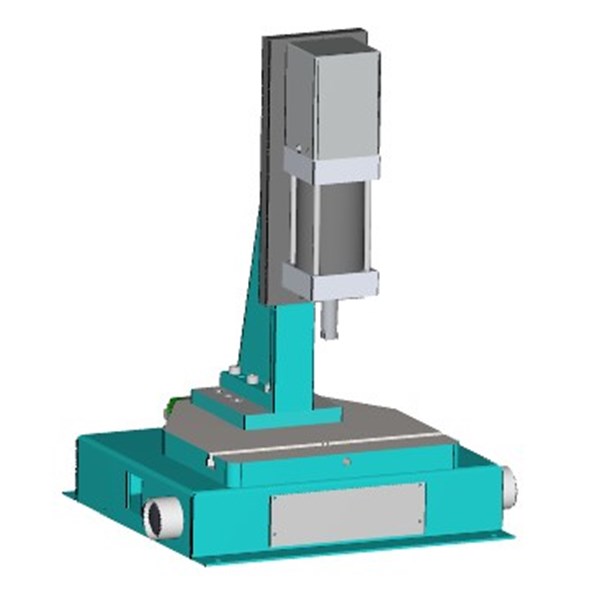

JT&M - 1/4 Ton Adjustable Precision Pneumatic Press – Model #A-3066

$5,142.00 SKU: A-3066

Specifications

One of three presses in the A-3000 series.

  A-3066A-3151A-3235
Force capacity  1/4 tons 1/2 tons 1 ton
Force at 60 psi  396 lbs 906 lbs 1,400 lbs
Force at 80 psi  528 lbs 1,208 lbs 1,880 lbs
Force at 100 psi  660 lbs 1,510 lbs 2,350 lbs
Cylinder diameter  3.00" 4.50" 4.50"
Throat depth  3.19" 4.81" 4.81"
Base length  6.13" 7" 7"
Base width  12" 12" 12"
Height  23.78" 23.91" 28.1

The A-3066 1/4 ton arbor air press allows the user height adjustment of the cylinder in 1.875" increments. This press is ideal for assembly, punching, shearing, and staking metal or plastic.

The column height can be increased by adding a riser block between the base and the column on special request. The A-3066 1/4 ton pneumatic arbor press comes equipped with dual hand anti-tie-down/anti-repeat controls, a three-inch stroke length, T-Slot Table, as well as an adjustable down stop/anti-rotate mechanism.

Check out all 1/4 ton arbor presses from Janesville Tool

Contact Janesville Tool with questions or for more information.

Description

You can configure each model individually by selecting the base model plus any additional attachments. If you need to purchase more than one of the same attachment, please go to the Options tab to the right.

*Pneumatic presses usually ship in 1 to 2 business days.

*Product specifications and pricing subject to change without notice.

*Includes adjustable down stop/anti-rotate mechanism.

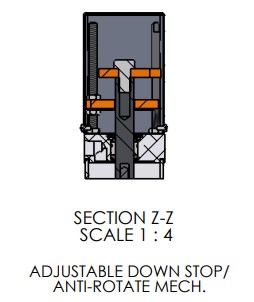

Adjustable Down Stop for A-3066 Pneumatic Arbor Press

Press dimensions

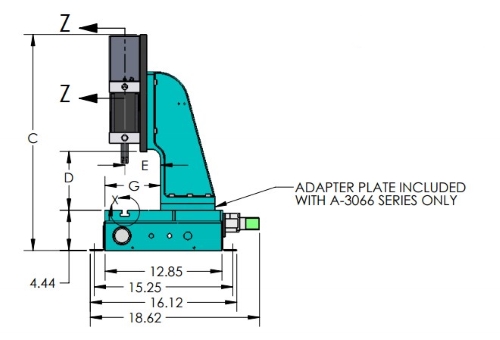

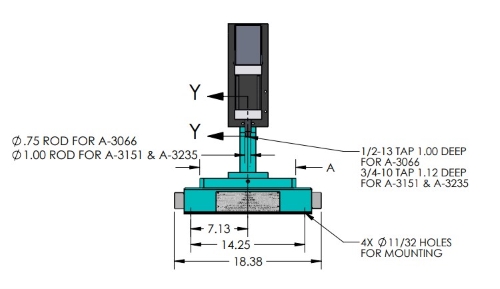

A-3066 Pneumatic Arbor Press Dimensions Front ViewA-3066 Pneumatic Arbor Press Dimensions Side Angle

View a full printable A-3000 Series dimensional drawing

Features

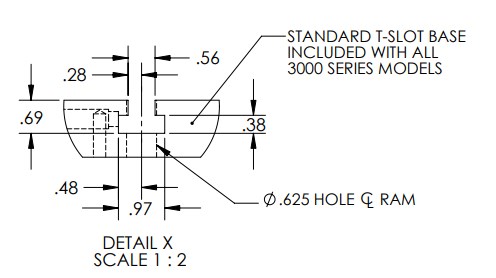

Tool Adapter for A-3066 Pneumatic Arbor PressT-Slot Base for A-3066 Pneumatic Arbor Press

Maintenance Guidelines

Thanks to its unique design, this press requires virtually no maintenance. Clean, dry air is required for operation. (Lubricated air may be used, but must be used for the life of the press.)

Control Module

The life expectancy for the control module (#540) is ten million cycles. Replacing the module on a yearly basis will ensure production reliability and avoid costly downtime.

Flow Controls

To alter the ram descent speed on your JT&M Press, adjust the screw marked B Located on the valve at the rear of the press. To alter the ram ascent speed, adjust screw A. (The ram retraction speed has been preset by the factory.) Rotate the screws clockwise to decrease the speed of the ram.

Press Operation

To operate the press, push palm buttons in at the same time. Hold the palm buttons in until the downstroke is completed. Consult the service manual for complete safety instructions.

Shop all pneumatic arbor press machines available for sale from Janesville Tool & Manufacturing.

Options

Air Filter & Regulator for A-3066 Precision Arbor Press

Air Filter/Regulators

Recommended for the A-3066 1/4 ton arbor air press to remove moisture and to allow the user accurate air supply pressure.

Model 512 Air Filter/Regulator

Used for pneumatic arbor presses. Comes standard with 1/4" N.P.T ports.

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR

CONTACT US FOR MORE DETAILS

A-3066 Precision Pneumatic Press Timer Delay Kit

Timer Delay Kits

Allows user delay time of .1 to 999 hours. Compatible with the A-3066 1/4 ton arbor air press.

Model T-10AP Timer Delay Kit

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR

CONTACT US FOR MORE DETAILS

A-3066 Precision Arbor Press Photo Optic Palm Buttons

Dual Photo Optic Palm Buttons

Buttons are ergonomically designed to eliminate hand, wrist, and arm stress associated with repeated switch operation and require no physical pressure to operate the A-3066 1/4 ton arbor air press.

Model -OT Dual Palm Buttons

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR

CONTACT US FOR MORE DETAILS

Quick Exhaust Valve for A-3066 Pneumatic Arbor Press

Quick Exhaust Valve

The valve allows exhaust air to be exhausted at the cylinder rather than the flow controls on the valve to speed up press cycle. The valve is recommended for use on the upstroke only.

Model 523 Exhaust Valve

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR

CONTACT US FOR MORE DETAILS

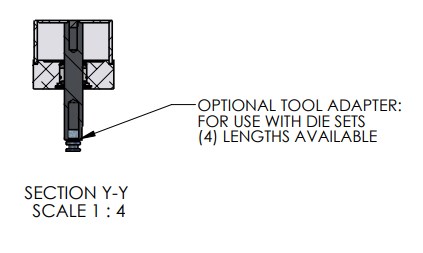

Tool Adapter for A-3066 Pneumatic Arbor Press

Tool Adapter

Our tool adapter is designed for easy assembly and disassembly of JT&M's die sets. The tool adapter threads into the ram of the cylinder with a 1/2-13" thread for 1-3/4" and 3" bore for the A-3066 1/4 ton arbor air press. Choice of lengths include 1-1/2", 2-1/2", 3-1/2", & 4-1/2".

Model TA Tool Adapter 1/2" - 1 1/2", 2 1/2", 3 1/2", 4 1/2" Length

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR

CONTACT US FOR MORE DETAILS

Air Press Guarding for A-3066 Arbor Press

Air Press Guarding

Cost-effective guarding is available for the A-3066 1/4 ton arbor air press. The rigidity of the wire mesh, aluminum interlocking frame, and quality construction will prevent any intrusion during press operation.

Model G-0123L 3-Sided Press Guard

Note—Point of operation safety guarding or devices is the responsibility of the employer (user) of the machine as provided in ANSI B-11:1 as published by the American National Standards Institute.

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR

CONTACT US FOR MORE DETAILS

A-3066 Pneumatic Arbor Press Die Sets

Die Sets

An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.

All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.

CONTACT US FOR MORE DETAILS

Light Curtain for A-3066 Pneumatic Arbor Press

Light Curtain

The Light Curtain option for JT&M Inc. pneumatic presses comes standard with three-sided guarding and a 15” light curtain. If the light curtain is broken during operation, the pressing operation is stopped. This helps ensure complete operator and co-worker safety.

Model LC-0123 Light Curtain

Model LC-01235 Light Curtain

CONTACT US FOR MORE DETAILS

Force Monitoring

Force monitoring assures quality by monitoring force during the pressing process. Available on all pneumatic presses this option allows the user a “Good Window” indicator for the pressing cycle. The system utilizes a load cell with a digital readout and prox switch for end of stroke reading. If the pressing cycle is not within the “Good Window” parameters the press is locked out, indicating a bad pressing cycle, and a keyed reset is used to return the press cylinder.

Model FM-100-2K

Model FM-100-10K

CONTACT US FOR MORE DETAILS

Custom A-3066 Arbor Press Value Added Services

Value Added Services

Your design or our design, from concept to completion, let JT&M Inc. be your value added supplier.

Due to increasing demand from our customers, JT&M, Inc. is offering “Value Added Services” to better meet your needs for “One Stop Shopping” and “Turn Key Systems”.

Whether it’s a simple tapped hole in the end of a ram on one of our presses, or as complex as a complete die set or press assembly system, JT&M Inc. has equipment set up and ready for a quick turnaround utilizing the latest software, most common tooling, and fixturing available in manufacturing today.

Value Added Services

Category Lists:

Pneumatic Press Parts | Press Attachments
