One of two options in the E-66 series.

  E-66EC-66
Force capacity  1/4 tons 1/4 tons
Force at 60 psi  396 lbs 396 lbs
Force at 80 psi  528 lbs 528 lbs
Force at 100 psi  660 lbs 660 lbs
Cylinder diameter  3.00" 3.00"
Throat depth  3.19" 3.19"
Base length  7.06" 7.06"
Base width  4.06" 4.06"
Height  20.09" 20.09"

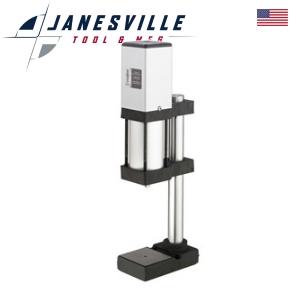

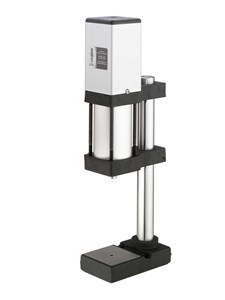

1/4 Ton Pneumatic Arbor Press E-66
    • 100% manufactured in the USA
    • FREE application testing
    • Customized to YOUR specifications
Press Customization Form

The E-66 1/4 ton arbor press is ideal for small parts assembly, punching, shearing, and staking of light gauge metal or plastic. The head of the press may be adjusted for height with two (2) clamping screws and provides a safety dowel to prevent the press head from dropping onto the base. This dowel also keeps the ram in direct alignment with the center hole in base. A longer column and stroke length can be provided on special request.

E-66 standard features & specifications:

  • Adjustable flow controls up & down stroke 1/4" O.D. Push to fit tube fitting
  • Non lube operation
  • Three inch stroke length
  • Adjustable down stop
  • Anti-Rotate Mechanism for cylinder
  • Powder coated frame

Check out all 1/4 ton arbor presses from Janesville Tool

Contact Janesville Tool with questions or for more information.

Description

Reduce your production costs with the Economy Series E-66 and EC-66 Pneumatic Presses from Janesville Tool & Mfg., Inc

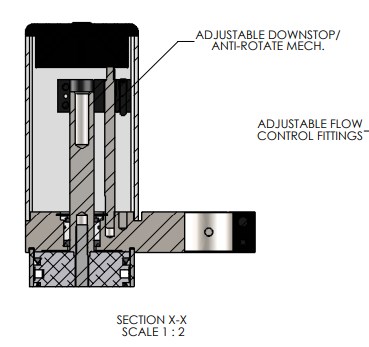

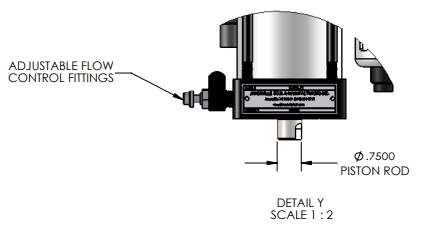

Adjustable Down Stop for the E-66 Precision Pneumatic Arbor Press

Press Dimensions

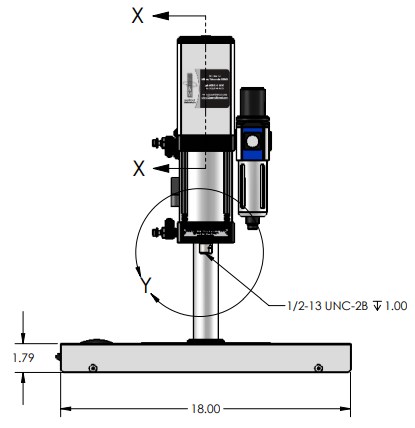

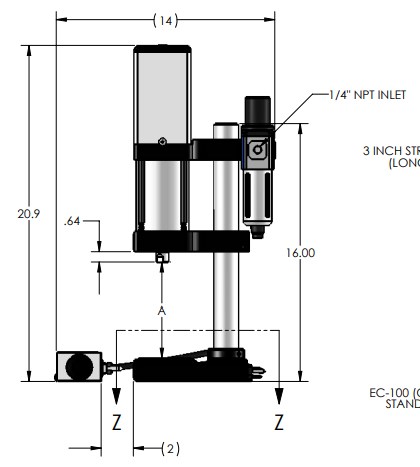

E-66 Pneumatic Arbor Press Dimensions Front View E-66 Precision Pneumatic Arbor Press Dimensions Side View

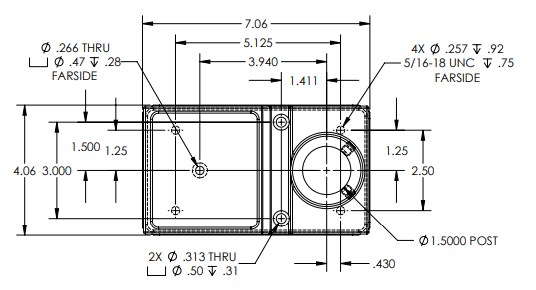

E-66 Pneumatic Benchtop Press Dimensions UndersideE-66 Precision Arbor Press Dimensions

View a full printable E-66 press dimensional drawing

Shop all pneumatic arbor press machines available for sale from Janesville Tool & Manufacturing.

Literature & Downloads

View the E-66 press dimensional drawing

View pneumatic press options

View the 2020 Price List

Options

Any of the following options can be purchased with these models.

Quick Exhaust Valve for Pneumatic Arbor Press

Quick Exhaust Valve

The valve allows exhaust air to be exhausted at the cylinder rather than the flow controls on the valve to speed up press cycle. The valve is recommended for use on the upstroke only.

Model 523 exhaust valve

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR

CONTACT US FOR MORE DETAILS

Tool Adapter for Pneumatic Arbor Presses

Tool Adapter

Our tool adapter is designed for easy assembly and disassembly of JT&M's die sets. The tool adapter threads into the ram of the cylinder with a choice of lengths:

Model TA Tool Adapters

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

Pneumatic Arbor Press Die Sets

Die Sets

An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.

All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.

CONTACT US FOR MORE DETAILS

Light Curtain forPneumatic Arbor Press

Light Curtain

The Light Curtain option for JT&M Inc. pneumatic presses comes standard with three-sided guarding and a 15” light curtain. If the light curtain is broken during operation, the pressing operation is stopped. This helps ensure complete operator and co-worker safety.

Model LC-0123 light curtain

Model LC-01235 light curtain

Model LC-678 light curtain

CONTACT US FOR MORE DETAILS

Load Cells for Arbor Presses

Force Monitoring

Force monitoring assures quality by monitoring force during the pressing process. Available on all pneumatic presses this option allows the user a “Good Window” indicator for the pressing cycle. The system utilizes a load cell with a digital readout and prox switch for end of stroke reading. If the pressing cycle is not within the “Good Window” parameters the press is locked out, indicating a bad pressing cycle, and a keyed reset is used to return the press cylinder.

Load Cells & Force Monitoring

CONTACT US FOR MORE DETAILS

Janesville Tool Value Added Service

Value Added Services

Your design or our design, from concept to completion, let JT&M Inc. be your value added supplier.

Due to increasing demand from our customers, JT&M, Inc. is offering “Value Added Services” to better meet your needs for “One Stop Shopping” and “Turn Key Systems”.

Whether it’s a simple tapped hole in the end of a ram on one of our presses, or as complex as a complete die set or press assembly system, JT&M Inc. has equipment set up and ready for a quick turnaround utilizing the latest software, most common tooling, and fixturing available in manufacturing today.

Value added services

Category Lists:

Pneumatic press parts | Press attachments
