T-960 2 Ton Manual Precision Toggle Press

Select Product Accessories
Price: $1,200.00

In Stock
Qty:
Qty:
In Stock

Additional Product Information

  T-960
Force capacity  2 ton
Max stroke length  1"
Throat depth  4.25"
Base length  13"
Base width  5"
Height  16.12"

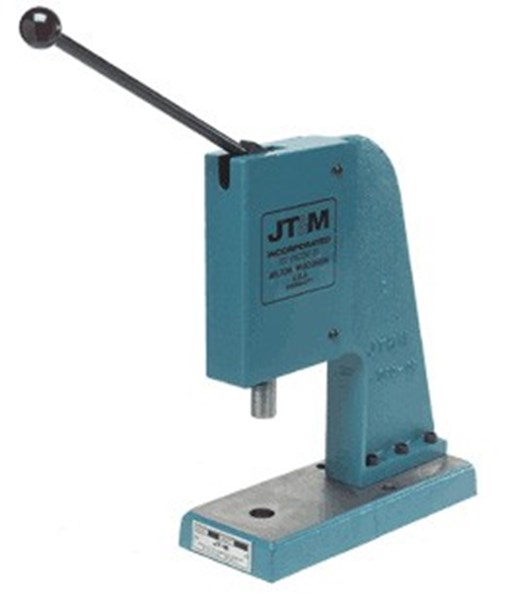

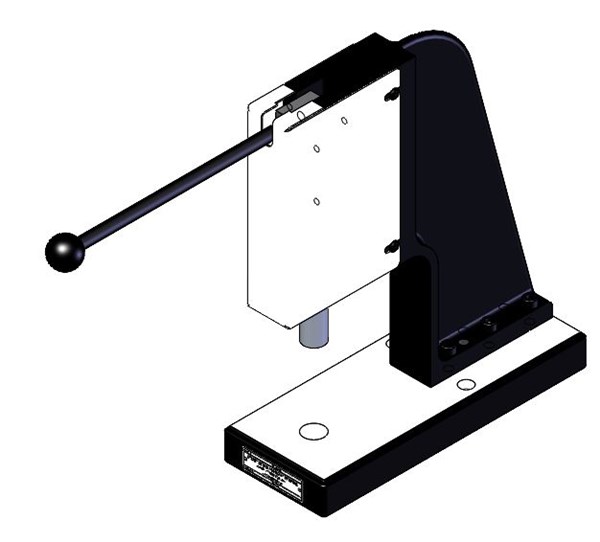

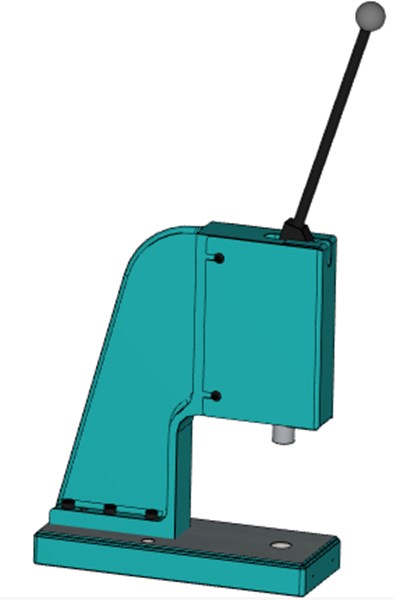

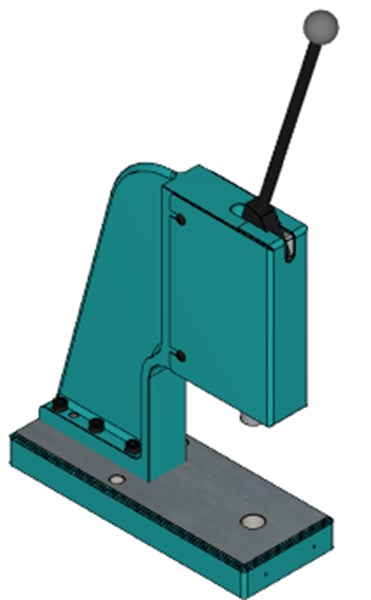

2 Ton Manual Hand Toggle Press T-960
    • 100% manufactured in the USA
    • FREE application testing
    • Build to YOUR specifications
CONTACT us to build your press
T-960 w/70lbs. on Handle
Inches From Bottom of Stroke/Force in Pounds
.01 .02 .03 .04 .06 .12 .24 .50 .75 1.00
4276 3013 2453 2116 1646 1573 804 500 422 270



The T-960 2 ton precision toggle press machine is rated to withstand 4000 lbs. of force. This precision arbor toggle press is ideal for pressing, punching, bending, shearing and staking of light gauge stock.

This manual hand operated toggle press mechanism is ideal for electronic assembly work with a max force capacity of 2 tons.

Description

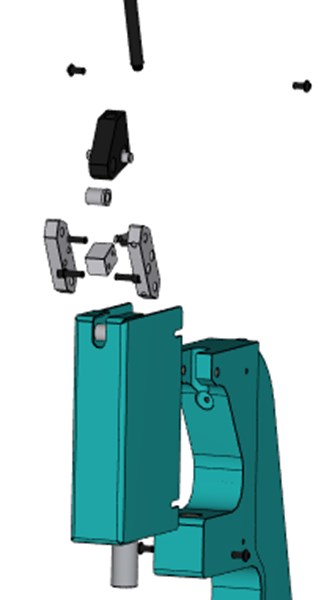

T-960 hand operated toggle press design & function

The toggle action of this press works exceedingly well for the crimping of multiple terminals in electronic assembly work.

The operator achieves a double crimp with each stroke of the handle by setting the toggle stop to go over center. The one inch diameter precision ground ram is in direct alignment with the hole in the base, allowing the tool designer easy alignment of punch and die tooling. The basic unit is furnished with a plain ram end, however, special ram end configurations can be furnished on request.

Throat clearance on the T-960 is 4-3/4" from the center line of the ram to the column, and 6" from the ground base to the underside of the column casting. This throat height can be increased by placing a riser block between the ground base and column casting.

Precision Hand Operated Manual Toggle Press Hand Operated Manual Toggle Press Mechanism MachineManual Toggle Punch Press Machine Design and Specifications

Shop all pneumatic pressesmanual presses for sale from Janesville Tool & Manufacturing.

Literature & Downloads

View the T-960 dimensional drawing

View the T-960 brochure

View manual press options

View the 2019 price list

Download the owner's manual

Options

Any of the following options can be purchased with these models.
• Arrange Press For Die Set Mtg. Add Suffix (-A)
• Die Sets
• Riser Blocks
• Resettable Production Counter & Bracket (Model PC-960)
