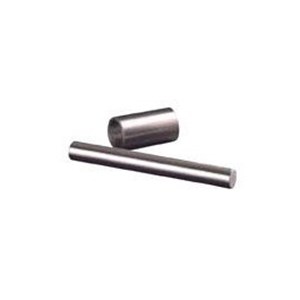

JT&M - 5/16" x 3" (L) Guide Post With 3/4" (L) Bushing - Model #PB1

$51.00 SKU: PB1

Qty:

Need something more specific?

Specifications





Assy # Post Dia. Post Lgth. Post Hole Dia. Bush O.D. Bush Lgth. Bush Hole Dia.
PB1 5/16 3 .3115/.3120  1/2  3/4 .5014/.5017
PB2 3/8 3 1/2 .3740/.3745 5/8 1 .6264/.6267
PB3 3/8 5 .3740/.3745 5/8 1 .6264/.6267
PB4 3/8 3 1/2 .3740/.3745 3/4 1 3/4 .7515/.7518
PB5 3/8 5 .3740/.3745 3/4 1 3/4 .7515/.7518
PB6 1/2 5 .4990/.4995 3/4 1 3/8 .7515/.7518
PB7 1/2 6 .4990/.4995 3/4 1 3/8 .7515/.7518
PB8 1/2 6 .4990/.4995 1 2 1/8 1.0015/1.0018
PB9 1/2 5 .4990/.4995 1 2 1/8 1.0015/1.0018

Description

Die set components are packaged as a set to assure tolerance compatibility.

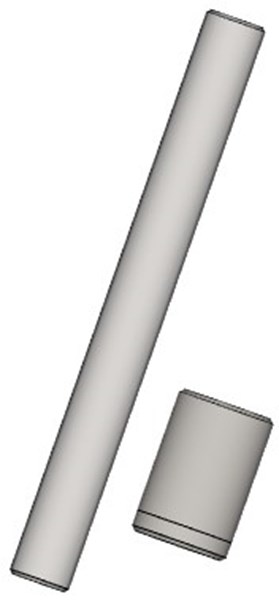

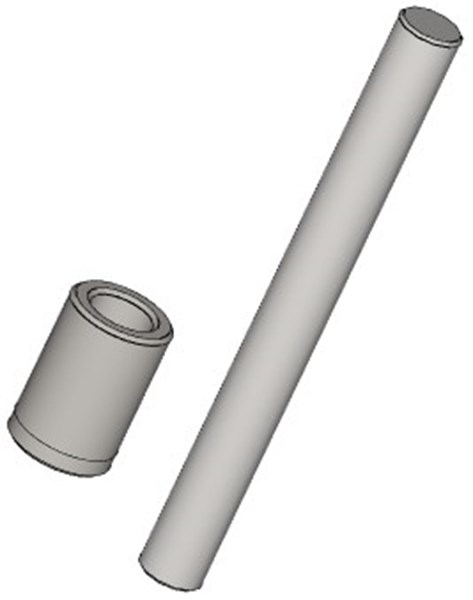

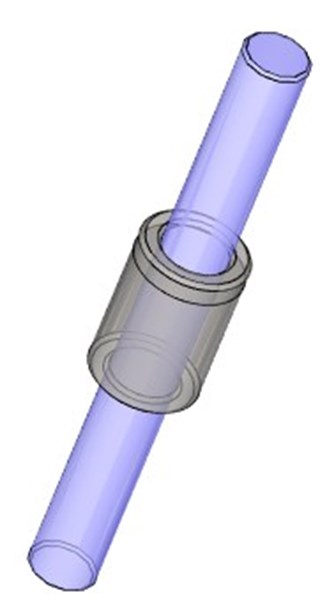

The PB1 is crafted from case hardened steel and refined to precise tolerances. We take pride in our work make sure that our products fit your needs and last for years to come.

Post Dia.: 5/16

Post Lgth.: 3

Post Hole Dia.: .3315/.3120

Bush O.D.: 1/2

Bush Lgth.: 3/4

Bush Hole Dia.: .5014/.5017

Not the right size for your job? We can custom manufacture guide posts and bushings to meet your specifications. Contact us today.
