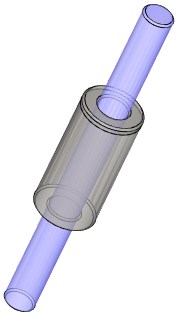

Combined guide post and bushing view of PB8 from Janesville Tool

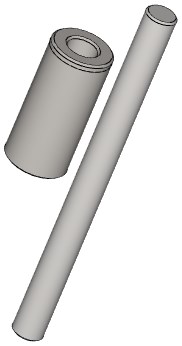

Separate guide post and bushing view of PB8 from Janesville Tool

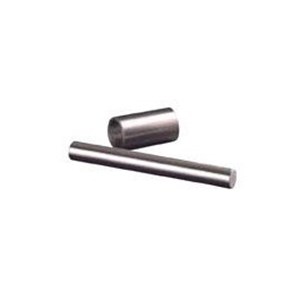

Separate guide post and bushing alternate view of PB8 from Janesville Tool
Build Custom CAD Model

PB8 - 1/2" x 6" (L) Guide Post With 2 1/8" (L) Bushing

SKU PB8

$92.00
Need something more specific?
Request a Quote JTM Engineering Support
Specs

Specifications



Assy # Post Dia. Post Lgth. Post Hole Dia. Bush O.D. Bush Lgth. Bush Hole Dia.
PB1 5/16 3 .3115/.3120  1/2  3/4 .5014/.5017
PB2 3/8 3 1/2 .3740/.3745 5/8 1 .6264/.6267
PB3 3/8 5 .3740/.3745 5/8 1 .6264/.6267
PB4 3/8 3 1/2 .3740/.3745 3/4 1 3/4 .7515/.7518
PB5 3/8 5 .3740/.3745 3/4 1 3/4 .7515/.7518
PB6 1/2 5 .4990/.4995 3/4 1 3/8 .7515/.7518
PB7 1/2 6 .4990/.4995 3/4 1 3/8 .7515/.7518
PB8 1/2 6 .4990/.4995 1 2 1/8 1.0015/1.0018
PB9 1/2 5 .4990/.4995 1 2 1/8 1.0015/1.0018



Product Information

Description

Die set components are packaged as a set to assure tolerance compatibility.

The PB8 is crafted from case hardened steel and refined to precise tolerances. We take pride in our work make sure that our products fit your needs and last for years to come.

Post Dia.: 1/2

Post Lgth.: 6

Post Hole Dia.: .4990/.4995

Bush O.D.: 1

Bush Lgth.: 2-1/8

Bush Hole Dia.: 1.0015/1.0018

Not the right size for your job? We can custom manufacture guide posts and bushings to meet your specifications. Contact Janesville Tool today.
