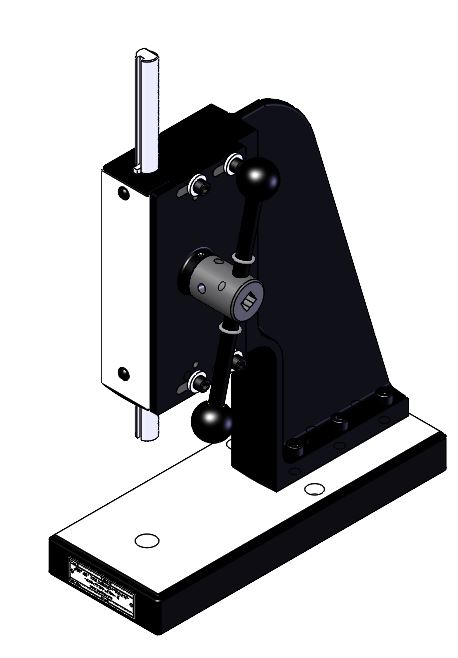

JT&M - 1 Ton Precision Variable Ratio Press – Model #T-963

$1,558.00 SKU: T-963

Perfect Your Press! (3) Add-on Product Accessories Available

Select my add-ons

Qty:

Need something more specific?

Specifications

  T-963
Force Capacity  1 ton
Max Stroke Length  14.75"
Throat Depth  4.375"
Base Length  13"
Base Width  5"
Height  16"
Force Ratio 16:1
Travel per Revolution 3"
Shipping Weight 62 lbs.
1 Ton Manual Hand Toggle Press T-963
    • 100% Manufactured in the USA
    • FREE Application Testing
    • Customized to YOUR Specifications
Press Customization Form

The T-963 1 ton variable ratio arbor press is rated to withstand 2000 lbs. of force. These allow the user 3" of vertical stroke per revolution of the handle. Ratios are 16:1, 9:1, or 7:1 depending on the gear selected. The press is pre-machined to accept either of the three pinion gears, however, the basic unit is provided with only one (1) gear. Additional gears to obtain alternate ratios are available as optional items. The precision ground ram is in direct alignment with the hole in the base, allowing the tool designer easy alignment of punch and die tooling.

Check out all 1 ton arbor presses from Janesville Tool

Contact Janesville Tool with questions or for more information.

Description

You can configure each model individually by selecting the base model plus any additional attachments.

Browse all manual arbor presses available for sale from Janesville Tool & Manufacturing.

Options

Any of the following options can be purchased with these models.

Precision Mechanical Press Up-Stroke Limiter

Up-Stroke Limiter

Like the Adjustable Down Stop, the Up-Stroke Limiter clamps onto the ram of the press at any position. It is designed to limit the travel of the up-stroke in order to increase press productivity.

Model 967-09 Stroke Limiter

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

Adjustable Down Stop for Precision Hand Arbor Press

Adjustable Down Stop

The Adjustable Down Stop is designed to clamp anywhere onto the ram of the press. An adjusting screw is supplied in the unit to assure accurate down stop position with every cycle.

Model 967-10-Adjustable Down Stop

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

Resettable Counter and Bracket for Manual Arbor Press

Resettable Counter & Bracket

This Counter attaches to many of our manual presses and allows you to accurately track parts production.

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

Pneumatic Arbor Press Die Sets

Die Sets

An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.

All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.

CONTACT US FOR MORE DETAILS

Arbor Press Value Added Services

Value Added Services

Your design or our design, from concept to completion, let JT&M Inc. be your value added supplier.

Due to increasing demand from our customers, JT&M, Inc. is offering “Value Added Services” to better meet your needs for “One Stop Shopping” and “Turn Key Systems”.

Whether it’s a simple tapped hole in the end of a ram on one of our presses, or as complex as a complete die set or press assembly system, JT&M Inc. has equipment set up and ready for a quick turnaround utilizing the latest software, most common tooling, and fixturing available in manufacturing today.

Value Added Services

Spare Parts

$298.00
Add
$993.00
Add
$38.00
Add
$239.00
Add
$27.00
Add
$58.00
Add
$41.00
Add
$83.00
Add
$313.00
Add
