4 post 6 inch die set

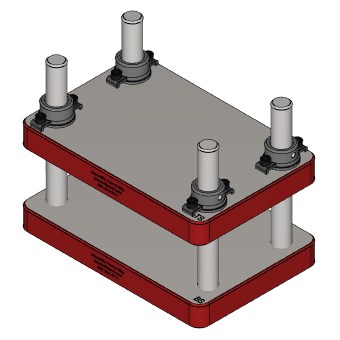

4P6X6 Four Post Die Set
Build Custom CAD Model

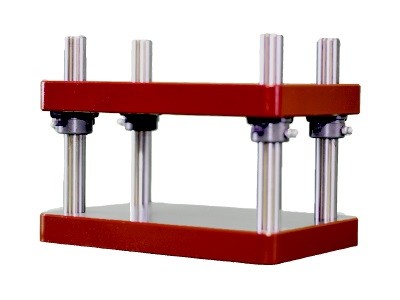

JT&M - Four Post Die Set With Hardened Bushings - Model #4P6X6

$802.00 SKU: 4P6X6

Qty:

Need something more specific?

Request a Quote JTM Engineering Support

Specifications

4P6X6 steel 4 post die sets are precision surface ground and come equipped with hardened ground bushings, allowing for close tolerance fit. A-36 Steel with hardened pins for extended wear.

Shop all die sets for presses available for sale online from Janesville Tool & Manufacturing.
Part # A B C D E F G H J K L M N P PD PL
4P6X6 7.3750 4.88 3.7500 - 8.19 - 3.6250 6.08 6.63 9.00 1.00 1.00 2.88 6.00 .7500 6.75
4P8X8 9.3750 6.88 5.7500 - 10.19 - 5.6250 8.08 8.63 11.00 1.00 1.00 4.88 8.00 .7500 6.75

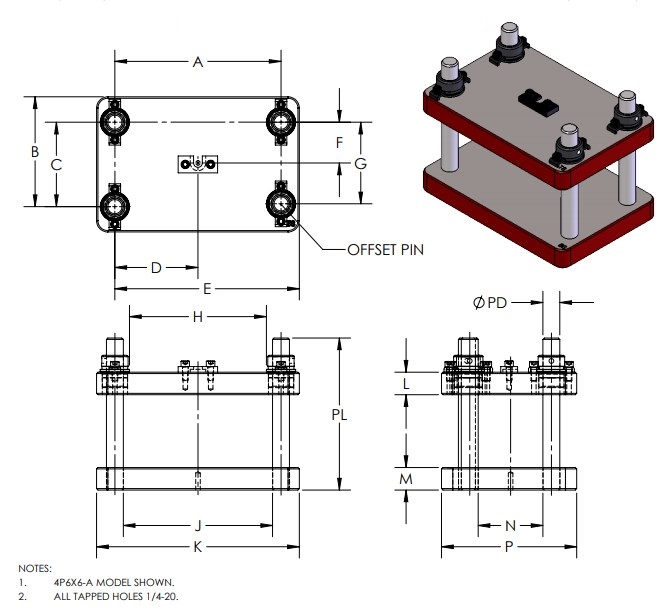

4 Post Die Set Dimensions

Description

Features:

• A-36 Steel
• Hardened Pins For Long Wear
• Hardened Bushings For Close Fits
• Precision Ground Surfaces
• Longer Pins (available upon request)
• Arranged For Assembly - Add Suffix (-A)

Get any Janesville Tool die set customized for specific applications:

Get Customized Die Sets

Pin Diameters and Lengths

Options

Janesville Tool can customize any die set to meet your needs. Contact us for more information.
