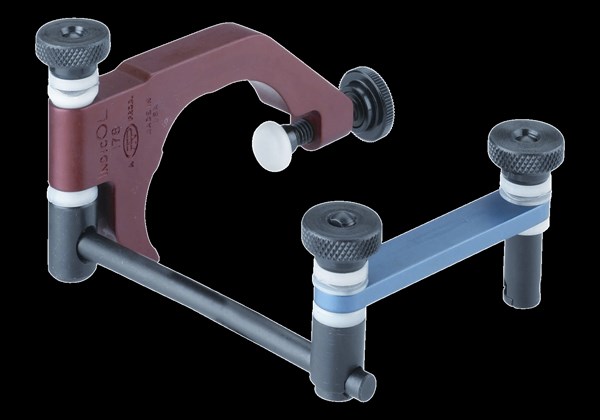

NP Products - Indicol 2" Diameter "C" Frame - Model #200

$132.17 SKU: 200

Perfect Your Press! (1) Add-on Product Accessories Available

Select my add-ons


Need something more specific?


WHAT INDICOL IS – It is primarily a super time saver, a universal supporting means of a dial test indicator.  It is readily available on the machine quill extension by using its “C” frame clamp without disturbing the mounted cutting tool.  Its frame is designed with 3 bearing pads properly spaced and an opposite pressure screw securing the rigidity of the mounting.

WHAT INDICOL DOES – The three types of readings performed by the indicator are:

  1. A concentricity positioning of the work relative to the spindle centerline
  2. The alignment of the edge of the work with the longitudinal or transversal movement of the machine table.
  3. The checking of the perpendicularity of the spindle centerline relative to the surface of the table.

Designed to be a universal supporting means for dial test indicators. Built to attach to tools with a head size up to 2”.

Not the right size? Try the 225 Indicol or 275 Indicol

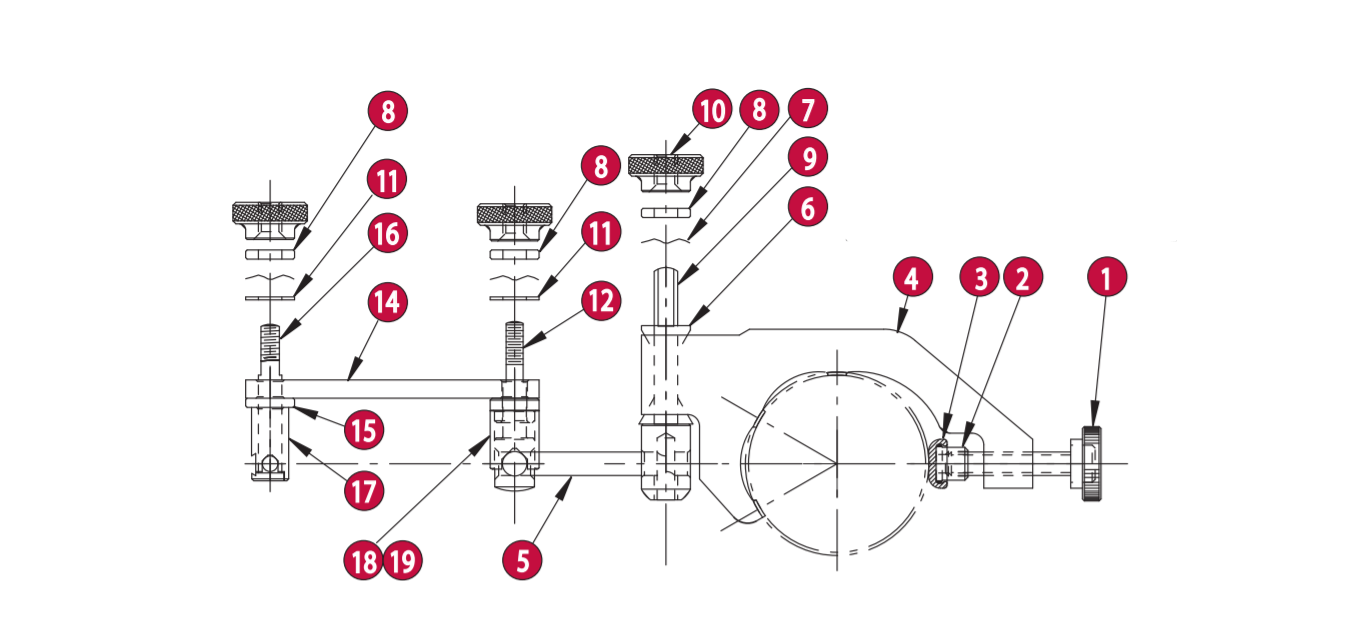

Indicol Breakout-138-178-200


200 Indicol was designed with 3 bearing pads properly spaced and an opposite pressure screw keeping the mounting in place once set. The friction mounting for both the frame and pivot allow for quick adjustments when needed. Never worry about the tools ability to maintain accuracy while working, the 200 Indicol is built to maintain constant pressure on the curved spring washers even when the articulations are moved.

Browse all Indicols and Indicol parts available for sale from Janesville Tool & Manufacturing

Literature & Downloads

NP products brochure

parts breakout
