Additional Product Information

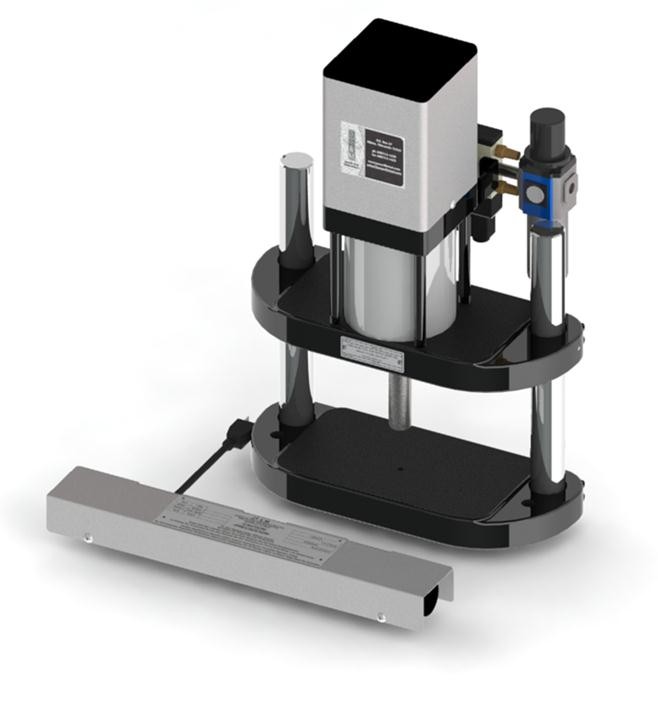

One of two presses in the E-151/EC-151 series.

  E-151EC-151
Force capacity  1/2 tons 1/2 tons
Force at 60 psi  906 lbs 906 lbs
Force at 80 psi  1,208 lbs 1,208 lbs
Force at 100 psi  1,510 lbs 1,510 lbs
Cylinder diameter  4.50" 4.50"
Base length  15" 15"
Base width  6" 6"
Height  23.93" 23.93"
1/2 Ton Pneumatic Arbor Press E-151
    • 100% manufactured in the USA
    • FREE application testing
    • Customized to YOUR specifications
Press Customization Form

Reduce Your Production Costs with the Economy E-Series Pneumatic Press.

The E-151 (Economy) 1/2 ton pneumatic arbor press is ideal for small parts assembly, punching, shearing, and staking of light gauge metal or plastic. The head of the press may be adjusted for height with two (2) clamping screws on the posts and provides a safety dowel to prevent the press head from dropping onto the base. Longer columns and stroke length can be provided on special request.

E-151 1/2 ton adjustable air press standard features & specifications:

  • Adjustable flow controls up & down stroke 1/4" O.D. Push to fit tube fitting
  • Non lube operation
  • Three inch stroke length
  • Adjustable down stop
  • Anti-Rotate Mechanism for cylinder
  • Black oxide frame finish

Check out all 1/2 ton arbor presses from Janesville Tool

Contact Janesville Tool with questions or for more information.

Description

Adjustable Precision Pneumatic Press

Shop all pneumatic press machines available for sale from Janesville Tool & Manufacturing.

Literature & Downloads

View the E-151 dimensional drawing

View pneumatic press options

View the 2020 Price List

Options

Any of the following options can be purchased with these models.

Quick Exhaust Valve for Pneumatic Arbor Press

Quick Exhaust Valve

The valve allows exhaust air to be exhausted at the cylinder rather than the flow controls on the valve to speed up press cycle. The valve is recommended for use on the upstroke only.

Model 523 exhaust valve

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR

CONTACT US FOR MORE DETAILS

Tool Adapter for Pneumatic Arbor Presses

Tool Adapter

Our tool adapter is designed for easy assembly and disassembly of JT&M's die sets. The tool adapter threads into the ram of the cylinder with a choice of lengths:

Model TA Tool Adapters

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

Pneumatic Arbor Press Die Sets

Die Sets

An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.

All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.

CONTACT US FOR MORE DETAILS

Light Curtain forPneumatic Arbor Press

Light Curtain

The Light Curtain option for JT&M Inc. pneumatic presses comes standard with three-sided guarding and a 15” light curtain. If the light curtain is broken during operation, the pressing operation is stopped. This helps ensure complete operator and co-worker safety.

Model LC-0123 light curtain

Model LC-01235 light curtain

Model LC-678 light curtain

CONTACT US FOR MORE DETAILS

Load Cells for Arbor Presses

Force Monitoring

Force monitoring assures quality by monitoring force during the pressing process. Available on all pneumatic presses this option allows the user a “Good Window” indicator for the pressing cycle. The system utilizes a load cell with a digital readout and prox switch for end of stroke reading. If the pressing cycle is not within the “Good Window” parameters the press is locked out, indicating a bad pressing cycle, and a keyed reset is used to return the press cylinder.

Load Cells & Force Monitoring

CONTACT US FOR MORE DETAILS

Janesville Tool Value Added Service

Value Added Services

Your design or our design, from concept to completion, let JT&M Inc. be your value added supplier.

Due to increasing demand from our customers, JT&M, Inc. is offering “Value Added Services” to better meet your needs for “One Stop Shopping” and “Turn Key Systems”.

Whether it’s a simple tapped hole in the end of a ram on one of our presses, or as complex as a complete die set or press assembly system, JT&M Inc. has equipment set up and ready for a quick turnaround utilizing the latest software, most common tooling, and fixturing available in manufacturing today.

Value added services
