*Stage Force w/4.5" inch diameter cylinder at:*





  P-9302
Force capacity  1 1/4 tons
Force at 60 psi  1,812 lbs
Force at 80 psi  2,416 lbs
Force at 100 psi  3,020 lbs
Cyl. STG.  2
Base length  15"
Base width  14.25"
Height  32.9"

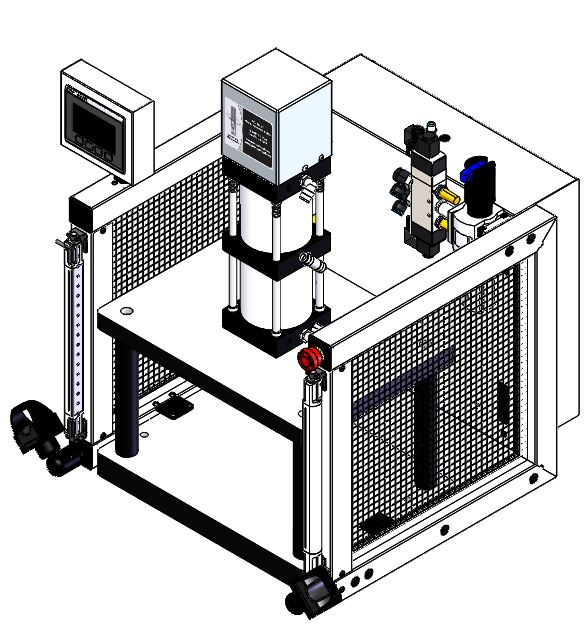

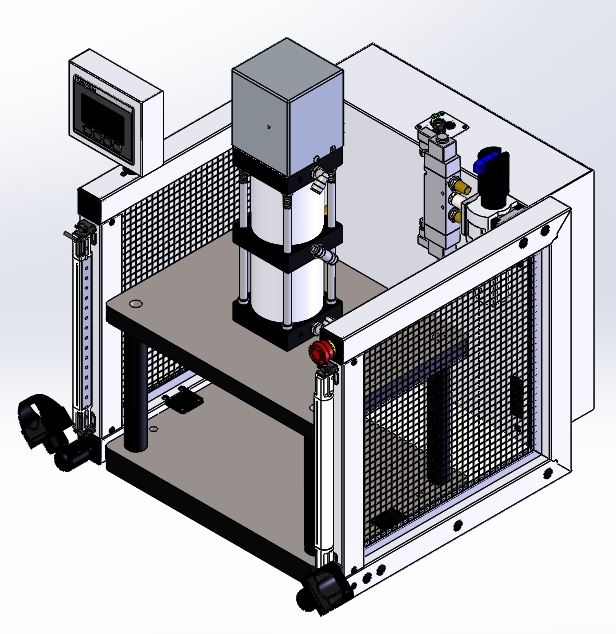

1 3/4 Ton Pneumatic Arbor Press P-9302
    • 100% manufactured in the USA
    • FREE application testing
    • Build to YOUR specifications
Custom Press Order Form





The P-9302 1 1/4 ton arbor air press comes standard with a three-inch stroke. Alternate stroke lengths are available upon request.The P-9302 1 1/4 ton pneumatic arbor press consists of a precision machined top plate and a four-post bottom plate that incorporates a multistage cylinder, allowing the user a force up to 3020 pounds. Adjustable dual hand photo-optic anti-tie down / anti-repeat controls are standard.

The P-9302 Comes Standard With:
- Adjustable Opto-Touch Buttons.
- Three-Sided Guarding.
- Timer Kit.
- Cycle/Parts Counter.
- Air Filter and Regulator.
- PLC Controls With 4" Color Display.
- Anti-Repeat - Anti-Tie Down Controls.
- Adjustable Down Stop and Anti-Rotate Mechanism.

Contact Janesville Tool with questions or for more information.



Description



P-9302 dim-snip

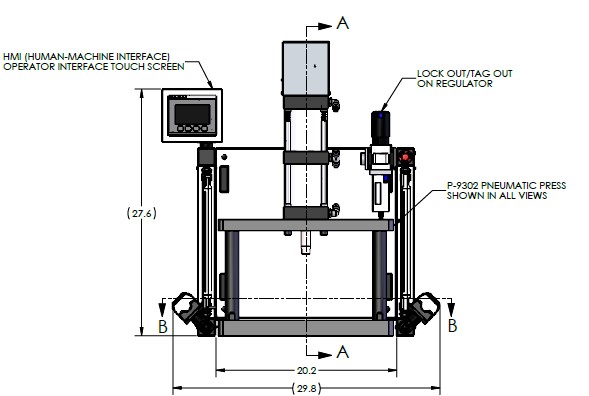

View a full, printable P-9302 dimensional drawing





Literature & Downloads



View the P-9302 Dimensional Drawing

View the P-9000 Series Owners Manual



Options

Any of the following options can be purchased with these models.

Quick Exhaust Valve for Pneumatic Arbor Press

Quick Exhaust Valve

The valve allows exhaust air to be exhausted at the cylinder rather than the flow controls on the valve to speed up press cycle. The valve is recommended for use on the upstroke only.

Model 523 exhaust valve

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR

CONTACT US FOR MORE DETAILS

Tool Adapter for Pneumatic Arbor Presses

Tool Adapter

Our tool adapter is designed for easy assembly and disassembly of JT&M's die sets. The tool adapter threads into the ram of the cylinder with a choice of lengths:

Model TA Tool Adapters

ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS

Pneumatic Arbor Press Die Sets

Die Sets

An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.

All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.

CONTACT US FOR MORE DETAILS

Light Curtain forPneumatic Arbor Press

Light Curtain

The Light Curtain option for JT&M Inc. pneumatic presses comes standard with three-sided guarding and a 15” light curtain. If the light curtain is broken during operation, the pressing operation is stopped. This helps ensure complete operator and co-worker safety.

Model 15LCPS light curtain



CONTACT US FOR MORE DETAILS

Load Cells for Arbor Presses

Force Monitoring

Force monitoring assures quality by monitoring force during the pressing process. Available on all pneumatic presses this option allows the user a “Good Window” indicator for the pressing cycle. The system utilizes a load cell with a digital readout and prox switch for end of stroke reading. If the pressing cycle is not within the “Good Window” parameters the press is locked out, indicating a bad pressing cycle, and a keyed reset is used to return the press cylinder.

Load Cells & Force Monitoring

CONTACT US FOR MORE DETAILS

Janesville Tool Value Added Service

Value Added Services

Your design or our design, from concept to completion, let JT&M Inc. be your value added supplier.

Due to increasing demand from our customers, JT&M, Inc. is offering “Value Added Services” to better meet your needs for “One Stop Shopping” and “Turn Key Systems”.

Whether it’s a simple tapped hole in the end of a ram on one of our presses, or as complex as a complete die set or press assembly system, JT&M Inc. has equipment set up and ready for a quick turnaround utilizing the latest software, most common tooling, and fixturing available in manufacturing today.

Value added services
