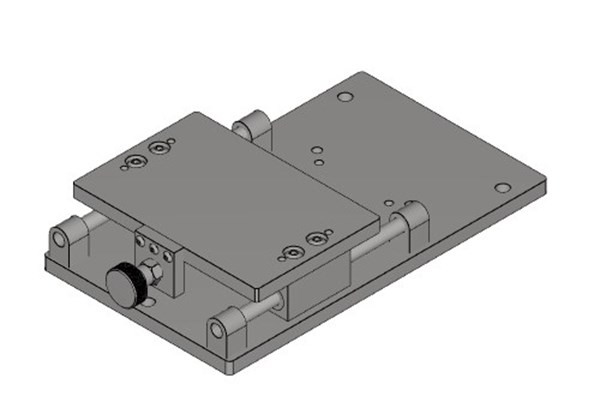

Model 0631-Multi Position Fixture For ILP-500 Presses

The multi-position fixture 0631 consists of a ground steel platen that can be indexed out from under the press ram to provide improved access to the fixture. This platen rides on precision-fitted guide pins and bronze bushings. An adjustment screw is provided for accurate end stop positioning under the press ram. The multi-position fixture is a self-contained unit that can be mounted to our presses with (2) screws.

0631 is used with the ILP-500 Manual Presses Only

Features:

• Ground Steel Platen
• Adjustment Screw
• Self-Contained Unit
• Easily Mounted
