PP-008-022 (1" Dia. x 5.50" Long) Straight Guide Post

SKU PP-008-022

This product is currently out of stock. Please check back later.

$50.00

Need something more specific?

Request a Quote

Specs
Product Information

Specs

Specifications

Janesville Tool & Mfg 1" Straight Guide Posts are designed to be used with CB & CBB type bushings. Dimensions and specifications subject to change without prior notice.

Product Information

Description

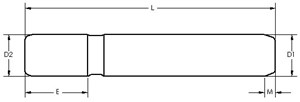

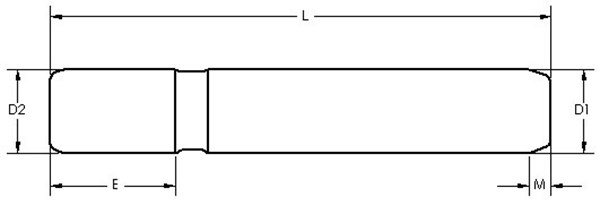

1.0008/1.0002 Press Fit Bore Size

D1	1"	1 1/4"	1 1/2"	1 3/4"	2"
D2	Press Fit Bore Size	Press Fit Bore Size	Press Fit Bore Size	Press Fit Bore Size	Press Fit Bore Size
Length (L)	1.0008 1.0002	1.2508 1.2502	1.5008 1.5002	1.7508 1.7502	2.0008 2.0002
4.00	PP-008-016	N/A	N/A	N/A	N/A
4.25	PP-008-017	N/A	N/A	N/A	N/A
4.50	PP-008-018	PP-010-018	PP-012-018	N/A	N/A
4.75	PP-008-019	PP-010-019	PP-012-019	N/A	N/A
5.00	PP-008-020	PP-010-020	PP-012-020	N/A	N/A
5.25		PP-010-021	PP-012-021	N/A	N/A
5.50	PP-008-022	PP-010-022	PP-012-022	N/A	N/A
5.75	PP-008-023	PP-010-023	PP-012-023	N/A	N/A
6.00	PP-008-024	PP-010-024	PP-012-024	PP-014-024	PP-016-024
6.50	PP-008-026	PP-010-026	PP-012-026	PP-014-026	PP-016-026
7.00	N/A	PP-010-028	PP-012-028	PP-014-028	PP-016-028
7.50	PP-008-030	PP-010-030	PP-012-030	PP-014-030	PP-016-030
8.00	PP-008-032	PP-010-032	PP-012-032	PP-014-032	PP-016-032
8.50	PP-008-034	PP-010-034	PP-012-034	PP-014-034	PP-016-034
9.00	PP-008-036	PP-010-036	PP-012-036	PP-014-036	PP-016-036
10.00	PP-008-040	PP-010-040	PP-012-040	PP-014-040	PP-016-040
11.00	PP-008-044	PP-010-044	PP-012-044	PP-014-044	PP-016-044
12.00	PP-008-048	PP-010-048	PP-012-048	PP-014-048	PP-016-048
13.00	N/A	N/A	N/A	PP-014-052	PP-016-052
14.00	N/A	N/A	N/A	PP-014-056	PP-016-056
17.00	N/A	N/A	N/A	N/A	PP-016-068
20.00	N/A	N/A	N/A	N/A	PP-016-080
E	1.50	1.75	2	2.25	2.5
M	0.2756	.4008	.4008	.4008	.4008
