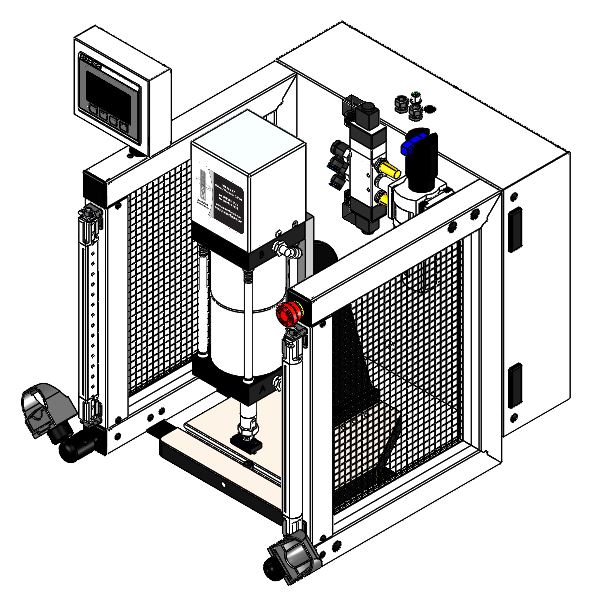

JT&M - 1 Ton 2 Stage Adjustable Precision Pneumatic Press – Model #P-3235
Perfect Your Press! (9) Add-on Product Accessories Available
Need something more specific?
Specifications
2 Stage - Force w/4.5" inch diameter cylinder at:*
| P-3235 | P-3066 | P-3151 | |
|---|---|---|---|
| Force capacity | 1 ton | 1/4 tons | 1/2 tons |
| Force at 60 psi | 1,400 lbs | 396 lbs | 906 lbs |
| Force at 80 psi | 1,880 lbs | 528 lbs | 1,208 lbs |
| Force at 100 psi | 2,350 lbs | 660 lbs | 1,510 lbs |
| Cylinder diameter | 4.50" | 3.00" | 4.50" |
| Throat depth | 4.81" | 3.19" | 4.81" |
| Base length | 7" | 6.13" | 7" |
| Base width | 12" | 12" | 12" |
| Height | 28.1" | 23.78" | 23.91 |
- 100% Manufactured in the USA
- FREE Application Testing
- Customized to YOUR Specifications
The P-3235 1 ton arbor air press allows the user height adjustment of the cylinder in 1.875" increments. This press is ideal for assembly, punching, shearing, and staking of metal or plastic. The column height can be increased by adding a riser block between the base and the column on special request.
The P-3235 1 ton pneumatic press comes equipped with dual hand anti-tie-down/anti-repeat controls, a three-inch stroke length, T-Slot Table, as well as an adjustable down stop/anti-rotate mechanism.
The P-3235 comes standard with:
-Adjustable Opto-Touch Buttons.
- Three-Sided Guarding.
- Timer Kit.
- Cycle/Parts Counter.
- Air Filter and Regulator.
- PLC Controls With 4" Color Display.
- Anti-Repeat - Anti-Tie Down Controls.
- Adjustable Down Stop and Anti-Rotate Mechanism.
Check out all 1 ton arbor presses from Janesville Tool
Contact Janesville Tool with questions or for more information.
Description
The P-3235 1 ton Press comes standard with dual hand anti-tie-down/anti repeat controls, a three-inch stroke length, an adjustable down stop/ anti-rotate mechanism. The Banner Opto-Touch buttons are adjustable for operator comfort. The P series press also comes standard with a three-sided guard, air filter & regulator and timer. The column height can be increased by adding a riser block between the base and the column on special request.
Literature & Downloads
Options
Any of the following options can be purchased with these models.
Quick Exhaust Valve
The valve allows exhaust air to be exhausted at the cylinder rather than the flow controls on the valve to speed up press cycle. The valve is recommended for use on the upstroke only.
Model 523 Exhaust ValveADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR
Tool Adapter
Our tool adapter is designed for easy assembly and disassembly of JT&M's die sets. The tool adapter threads into the ram of the cylinder with a choice of lengths:
ADD TO YOUR ORDER ABOVE UNDER "OPTIONAL ACCESSORIES" OR CONTACT US FOR MORE DETAILS
Die Sets
An economical lean way to cut the high costs of purchasing multiple presses to perform different applications. By tooling up several die sets, one press can be used to achieve multiple assemblies. A wide range of Die Sets are ready for 24 hour delivery after receipt of your order. Special machining and custom applications are available, along with several options for all your necessary die set needs. All JT&M Inc. die sets come standard with hardened pins and bushings for long wear.
- A36 Steel Die Sets
- A36 Steel Die Set with Ball Bushings
- Flanged Stock Two Post Die Sets
- Power Die Sets
- Clean Room Die Sets
- Custom Die Sets
All Die Sets can be arranged for assembly with your JT&M Inc. manual or pneumatic arbor press at a minimal cost.
Light Curtain
The Light Curtain option for JT&M Inc. pneumatic presses comes standard with three-sided guarding and a 15” light curtain. If the light curtain is broken during operation, the pressing operation is stopped. This helps ensure complete operator and co-worker safety.
Force Monitoring
Force monitoring assures quality by monitoring force during the pressing process. Available on all pneumatic presses this option allows the user a “Good Window” indicator for the pressing cycle. The system utilizes a load cell with a digital readout and prox switch for end of stroke reading. If the pressing cycle is not within the “Good Window” parameters the press is locked out, indicating a bad pressing cycle, and a keyed reset is used to return the press cylinder.
Value Added Services
Your design or our design, from concept to completion, let JT&M Inc. be your value added supplier.
Due to increasing demand from our customers, JT&M, Inc. is offering “Value Added Services” to better meet your needs for “One Stop Shopping” and “Turn Key Systems”.
Whether it’s a simple tapped hole in the end of a ram on one of our presses, or as complex as a complete die set or press assembly system, JT&M Inc. has equipment set up and ready for a quick turnaround utilizing the latest software, most common tooling, and fixturing available in manufacturing today.
