/All Products /Die Set Components
Guide Post A 36 Steel MDS A36 Steel MDSB
Guide Post

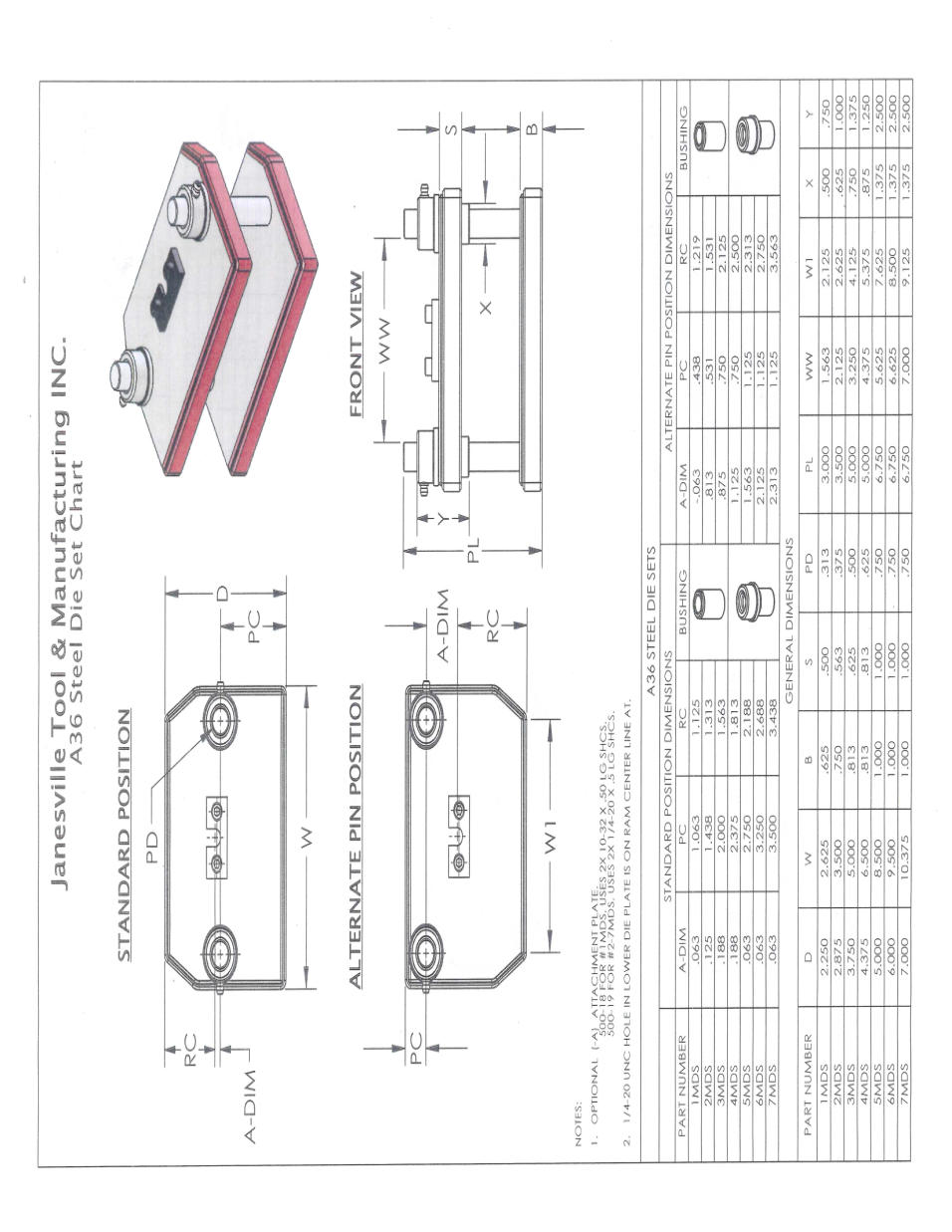

A 36 Steel MDS

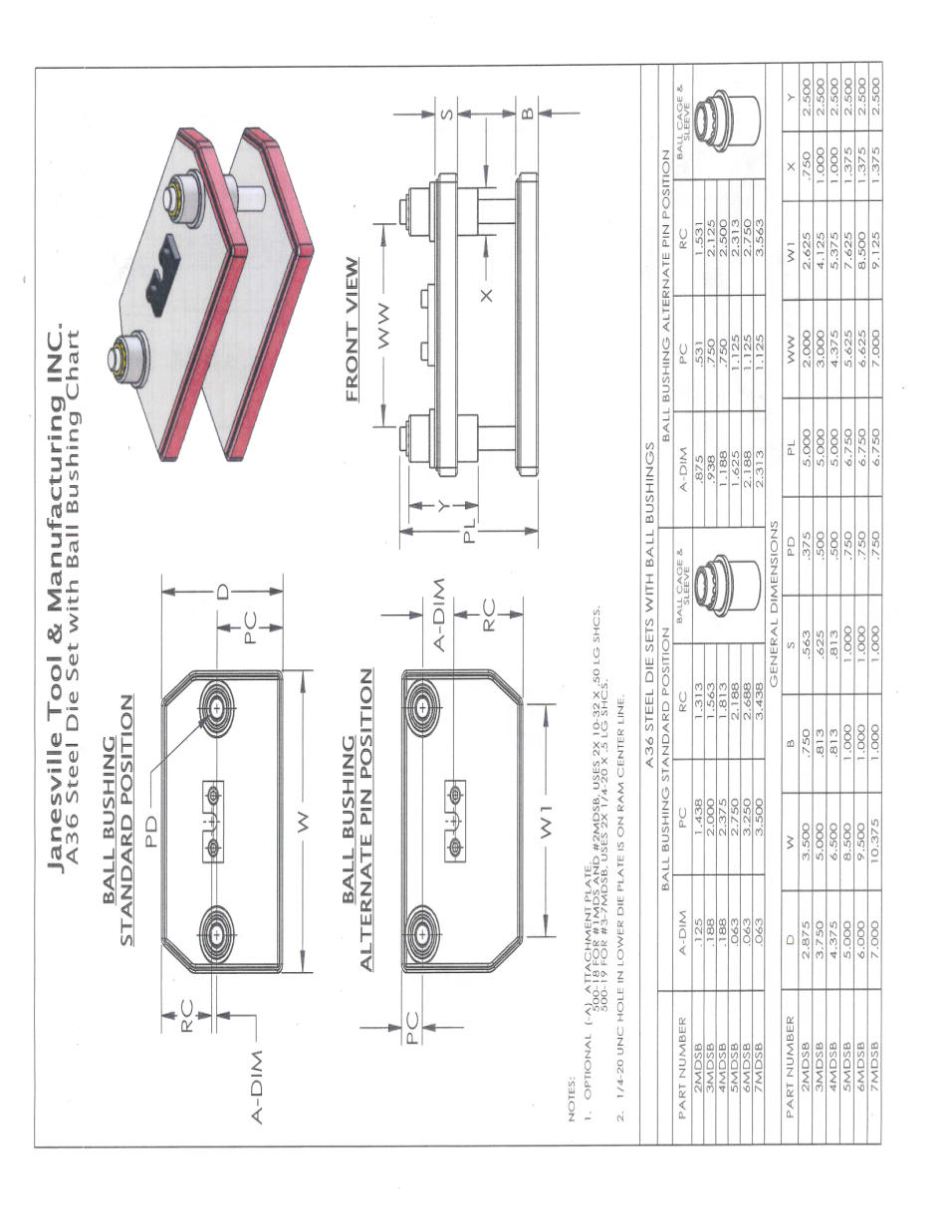

A36 Steel MDSB

Non Standard Pin Length

SKU 4POST-PL

Need something more specific?
Request a Quote JTM Engineering Support
Specs

Specifications

***Pin Diameters are not interchangeable on the die sets only the Pin Length***

Straight Guide Posts - 3/8 inch through 5/8 inch



D1 3/8" 1/2" 5/8" 3/4"
D2
Bore Size		 .3740
.3745		 .4990
.4995		 .6240
.6245		 .7490
.7495
Length (L) Press Fit Press Fit Press Fit Press Fit
3.50 2MDS-3 PP-004-014 PP-005-014 PP-006-014
4.00 PP-003-016 PP-004-016 PP-005-016 PP-006-016
4.25 PP-003-017 PP-004-017 PP-005-017 PP-006-017
4.50 PP-003-018 PP-004-018 PP-005-018 PP-006-018
4.75 PP-003-019 PP-004-019 PP-005-019 PP-006-019
5.00 PP-003-020 3MDS-3 4MDS-4 PP-006-020
5.25 PP-003-021 PP-004-021 PP-005-021 PP-006-021
5.50 PP-003-022 PP-004-022 PP-005-022 PP-006-022
5.75 PP-003-023 PP-004-023 PP-005-023 PP-006-023
6.00 PP-003-024 PP-004-024 PP-005-024 PP-006-024
6.50 PP-003-026 PP-004-026 PP-005-026 PP-006-026
6.75 PP-003-027 PP-003-027 PP-005-027 5MDS-5
7.00 PP-003-028 PP-004-028 PP-005-028 PP-006-028
7.50 PP-003-030 PP-004-030 PP-005-030 PP-006-030
8.00 PP-003-032 PP-004-032 PP-005-032 PP-006-032
8.50 PP-003-034 PP-004-034 PP-005-034 PP-006-034
9.00 PP-003-036 PP-004-036 PP-005-036 PP-006-036
10.00 PP-003-040 PP-004-040 PP-005-040 PP-006-040
11.00 PP-003-044 PP-004-044 PP-005-044 PP-006-044
12.00 PP-003-048 PP-004-048 PP-005-048 PP-006-048
13.00 PP-003-052 PP-004-052 PP-005-052 PP-006-052
14.00 PP-003-056 PP-004-056 PP-005-056 PP-006-056
17.00 PP-003-068 PP-004-068 PP-005-068 PP-006-068
20.00 PP-003-080 PP-004-080 PP-005-080 PP-006-080

Janesville Tool & Mfg Straight Guide Posts feature bearing quality case hardened and precision ground steel. Press Fit Bore Size 1.0008/1.0002

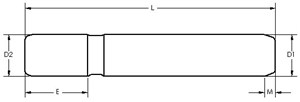

draw straight guide post

D1 1" 1 1/4" 1 1/2" 1 3/4" 2"
D2 Press Fit Bore Size Press Fit Bore Size Press Fit Bore Size Press Fit Bore Size Press Fit Bore Size
Length (L) 1.0008
1.0002		 1.2508
1.2502		 1.5008
1.5002		 1.7508
1.7502		 2.0008
2.0002
4.00 PP-008-016 N/A N/A N/A N/A
4.25 PP-008-017 N/A N/A N/A N/A
4.50 PP-008-018 PP-010-018 PP-012-018 N/A N/A
4.75 PP-008-019 PP-010-019 PP-012-019 N/A N/A
5.00 PP-008-020 PP-010-020 PP-012-020 N/A N/A
5.25 N/A PP-010-021 PP-012-021 N/A N/A
5.50 PP-008-022 PP-010-022 PP-012-022 N/A N/A
5.75 PP-008-023 PP-010-023 PP-012-023 N/A N/A
6.00 PP-008-024 PP-010-024 PP-012-024 PP-014-024 PP-016-024
6.50 PP-008-026 PP-010-026 PP-012-026 PP-014-026 PP-016-026
7.00 N/A PP-010-028 PP-012-028 PP-014-028 PP-016-028
7.50 PP-008-030 PP-010-030 PP-012-030 PP-014-030 PP-016-030
8.00 PP-008-032 PP-010-032 PP-012-032 PP-014-032 PP-016-032
8.50 PP-008-034 PP-010-034 PP-012-034 PP-014-034 PP-016-034
9.00 PP-008-036 PP-010-036 PP-012-036 PP-014-036 PP-016-036
10.00 PP-008-040 PP-010-040 PP-012-040 PP-014-040 PP-016-040
11.00 PP-008-044 PP-010-044 PP-012-044 PP-014-044 PP-016-044
12.00 PP-008-048 PP-010-048 PP-012-048 PP-014-048 PP-016-048
13.00 N/A N/A N/A PP-014-052 PP-016-052
14.00 N/A N/A N/A PP-014-056 PP-016-056
17.00 N/A N/A N/A N/A PP-016-068
20.00 N/A N/A N/A N/A PP-016-080
E 1.50 1.75 2 2.25 2.5
M 0.2756 .4008 .4008 .4008 .4008
