You can’t do quality work without quality tools. When you’re looking for the best, look to Janesville Tool & Manufacturing. Our pneumatic press machines are all precision-built in-house at our Janesville, Wisconsin facility using only quality, USA sourced steel. When quality & reliability is your priority, these are the presses you're after.
A-0066 1/4 Ton Precision Pneumatic Press
Force Range: 396 - 660 lbs
Std. stroke length: 3"
Throat depth: 2.06"
Base dimensions: 2.88" x 3.06"
Height: 23.49"
A-1066 1/4 Ton Deep Throat Precision Pneumatic Pre…
Force Range: 396 - 660 lbs
Std. stroke length: 3"
Throat depth: 6.04"
Base dimensions: 12" x 8.22"
Height: 23.54"
A-2066 1/4 Ton Adjustable Precision Pneumatic Pres…
Force Range: 396 - 660 lbs
Std. stroke length: 3"
Throat depth: 3.19"
Base dimensions: 7.875" x 5.375"
Height: 26.833"
A-3066 1/4 Ton Adjustable Precision Pneumatic Pres…
Force Range: 396 - 660 lbs
Std. stroke length: 3"
Throat depth: 3.94"
Base dimensions: 12" x 6.13"
Height: 23.78"
AP-1066 1/4 Ton Deep Throat Precision Pneumatic Pr…
Force Range: 396 - 660 lbs
Std. stroke length: 3"
Throat depth: 6.04"
Base dimensions: 8.22" x 12"
Height: 23.54"
AP-3066 1/4 Ton Adjustable Precision Pneumatic Pre…
Force Range: 396 - 1,400 lbs
Std. stroke length: 3"
Throat depth: 3.19"
Base dimensions: 6.13" x 12"
Height: 23.78"

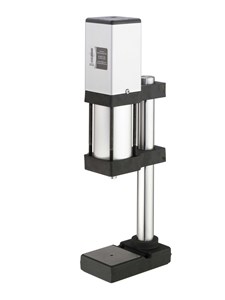

E-66 1/4 Ton Adjustable Precision Pneumatic Press …
Force Range: 396 - 660 lbs
Std. stroke length: 3"
Throat depth: 3.19"
Base dimensions: 4.06" x 7.06"
Height: 20.09"
EC-66 1/4 Ton Adjustable Precision Pneumatic Press
Force Range: 396 - 660 lbs
Std. stroke length: 3"
Throat depth: 3.19"
Base dimensions: 4.06" x 7.06"
Height: 20.09"
P-1066 1/4 Ton Deep Throat Precision Pneumatic Pre…
Force Range: 396 - 660 lbs
Std. stroke length: 3"
Throat depth: 6.04"
Base dimensions: 8.22" x 12"
Height: 23.54"
P-3066 1/4 Ton Adjustable Precision Pneumatic Pres…
Force Range: 396 - 1,400 lbs
Std. stroke length: 3"
Throat depth: 3.19"
Base dimensions: 6.13" x 12"
Height: 23.78"
With deep customization options on all our pneumatic and manual presses, manufacturer-direct pricing and 24-hour shipping on most tools and parts in our inventory, there’s no reason to settle for second-rate tooling. We have a pneumatic press for any application and workplace. If we don't carry a standard press that meets your needs, we can customize any of our presses for specialty applications.
There are different sources of power needed for different press types. When considering pneumatic vs. hydraulic vs. hydropneumatic press machines, the key factors to keep in mind are price, speed, and force capability. Read more about the main difference between pneumatic, hydraulic and hydropneumatic presses.
