Pneumatic Presses | Benchtop press machines manufactured 100% in the USA

Fully Customizable Benchtop & Industrial Pneumatic Press Machines

Janesville Tool & Manufacturing builds precision pneumatic presses designed for assembly, forming, punching, and cutting applications across industrial and production environments. Each pneumatic press machine is manufactured 100% in the USA at our Janesville, Wisconsin facility. Every unit is fully customizable to meet your exact force, stroke, and workspace requirements.

We offer manufacturer-direct pricing, short lead times, and free performance testing to ensure your press operates with maximum efficiency. Whether you need a pneumatic punch press, pneumatic cutting press, or a 1-ton or 2-ton pneumatic arbor press, our engineering team can build the optimal solution for your production line.

Press Customization Form

Shop Pneumatic Presses by Force Capacity

Choosing the correct force capacity is the first step in selecting the right pneumatic press machine for your application.



Under 1 Ton Pneumatic Press

Ideal for electronics assembly, light press fitting, laboratory use, and small-part operations.



1–2 Ton Pneumatic Press

Suitable for staking, light forming, and precision assembly tasks.



2–4 Ton Pneumatic Press

Designed for punching, cutting, and medium-duty forming applications.

Compare Products

No products added. Please add products to compare.
 1 2 3
A-0019 1/8 Ton Precision Pneumatic Press
$3,414.00
SKU: A-0019
Force Range: 114 - 190 lbs
Std. stroke length: 3"
Throat depth: 2.06"
Base dimensions: 2.88" x 3.06"
Height: 23.49"
Compare
A-0066 1/4 Ton Precision Pneumatic Press
$3,782.00
SKU: A-0066
Force Range: 396 - 660 lbs
Std. stroke length: 3"
Throat depth: 2.06"
Base dimensions: 2.88" x 3.06"
Height: 23.49"
Compare
A-1019 1/8 Ton Deep Throat Precision Pneumatic Pre…
$4,385.00
SKU: A-1019
Force Range: 114 - 190 lbs
Std. stroke length: 3"
Throat depth: 6.04"
Base dimensions: 12" x 8.22"
Height: 23.56"
Compare
A-1066 1/4 Ton Deep Throat Precision Pneumatic Pre…
$4,762.00
SKU: A-1066
Force Range: 396 - 660 lbs
Std. stroke length: 3"
Throat depth: 6.04"
Base dimensions: 12" x 8.22"
Height: 23.54"
Compare
A-2066 1/4 Ton Adjustable Precision Pneumatic Pres…
$4,977.00
SKU: A-2066
Force Range: 396 - 660 lbs
Std. stroke length: 3"
Throat depth: 3.19"
Base dimensions: 7.875" x 5.375"
Height: 26.833"
Compare
1/4 Ton A-3066 Adjustable Precision Pneumatic Press A-3066 1/4 Ton Adjustable Precision Pneumatic Pres…
$5,616.00
SKU: A-3066
Force Range: 396 - 660 lbs
Std. stroke length: 3"
Throat depth: 3.94"
Base dimensions: 12" x 6.13"
Height: 23.78"
Compare
A-3151 3/4 Ton Adjustable Precision Pneumatic Pres…
$6,358.00
SKU: A-3151
Force Range: 906 - 1,510 lbs
Std. stroke length: 3"
Throat depth: 4.81"
Base dimensions: 12" x 7"
Height: 23.91"
Compare
A-3235 1 Ton 2 Stage Adjustable Precision Pneumati…
$7,044.00
SKU: A-3235
Force Range: 1,400 - 2,350 lbs
Std. stroke length: 3"
Throat depth: 4.81"
Base dimensions: 12" x 7"
Height: 28.1"
Compare
A-5302 1 1/4 Ton Four Post 2 Stage Pneumatic Press
$8,106.00
SKU: A-5302
Force Range: 1,812 - 3,020 lbs
Std. stroke length: 3"
Throat depth: N/A
Base dimensions: 5.75" x 12.25"
Height: 35.2"
Compare
A-5453 1 3/4 Ton Four Post 3 Stage Pneumatic Press
$9,544.00
SKU: A-5453
Force Range: 2,718 - 4,530 lbs
Std. stroke length: 3"
Throat depth: N/A
Base dimensions: 5.75" x 12.25"
Height: 41.4"
Compare
A-5604 2 1/2 Ton Four Post 4 Stage Pneumatic Press
$9,854.00
SKU: A-5604
Force Range: 3,624 - 6,040 lbs
Std. stroke length: 3"
Throat depth: N/A
Base dimensions: 5.75" x 12.25"
Height: 47.7"
Compare
AP-1019 AP-1019 1/8 Ton Deep Throat Precision Pneumatic Pr…
$6,472.00
SKU: AP-1019
Force Range: 114 - 190 lbs
Std. stroke length: 3"
Throat depth: 6.04"
Base dimensions: 8.22" x 12"
Height: 23.56"
Compare
AP-1066 AP-1066 1/4 Ton Deep Throat Precision Pneumatic Pr…
$6,769.00
SKU: AP-1066
Force Range: 396 - 660 lbs
Std. stroke length: 3"
Throat depth: 6.04"
Base dimensions: 8.22" x 12"
Height: 23.54"
Compare
AP-151 AP-151 3/4 Ton 1 Stage Precision Pneumatic C Frame…
$7,628.00
SKU: AP-151
Force Range: 906 - 1,510 lbs
Std. stroke length: 3"
Throat depth: 6.5"
Base dimensions: 11" x 10.8"
Height: 22"
Compare
AP-302 AP-302 1 1/4 Ton 2 Stage Precision Pneumatic C Fra…
$8,274.00
SKU: AP-302
Force Range: 1,208 - 3,624 lbs
Std. stroke length: 3"
Throat depth: 6.5"
Base dimensions: 11" x 10.8"
Height: 26.9"
Compare
AP-3066 AP-3066 1/4 Ton Adjustable Precision Pneumatic Pre…
$7,519.00
SKU: AP-3066
Force Range: 396 - 1,400 lbs
Std. stroke length: 3"
Throat depth: 3.19"
Base dimensions: 6.13" x 12"
Height: 23.78"
Compare
AP-3151 AP-3151 1/2 Ton Adjustable Precision Pneumatic Pre…
$8,260.00
SKU: AP-3151
Force Range: 906 - 1,510 lbs
Std. stroke length: 3"
Throat depth: 4.81"
Base dimensions: 7" x 12"
Height: 23.91"
Compare
AP-3235 AP-3235 1 Ton 2 Stage Adjustable Precision Pneumat…
$8,947.00
SKU: AP-3235
Force Range: 1410- 2,350 lbs
Std. stroke length: 3"
Throat depth: 6.5"
Base dimensions: 11" x 10.8"
Height: 22"
Compare
AP-453 AP-453 1 3/4 Ton 3 Stage Precision Pneumatic C Fra…
$8,967.00
SKU: AP-453
Force Range: 1,510 - 4,530 lbs
Std. stroke length: 3"
Throat depth: 6.5"
Base dimensions: 11" x 10.8"
Height: 31.7"
Compare
AP-5302 AP-5302 1 1/4 Ton Four Post 2 Stage Pneumatic Pres…
$8,154.00
SKU: AP-5302
Force Range: 1,812 - 3,020 lbs
Std. stroke length: 3"
Opening Height: 10"
Base dimensions: 12.25" x 5.75"
Height: 35.2"
Compare
 1 2 3

Reliable Pneumatic Press Machines Manufactured in the USA

Choose from our stock of pneumatic arbor adjustable presses (P-Series, AP Series, and A-Series) for tool design, small parts assembly, staking, shearing, and punching light gauge material. Our Economy Series (E-Series) pneumatic presses reduce production costs with a streamlined benchtop design while providing the same quality that Janesville Tool is known for.

We also supply a complete line of pneumatic press parts and press attachments compatible with any press system. With custom fabrication options, manufacturer-direct pricing, and 24-hour shipping, there’s no reason to settle for anything less than the best.

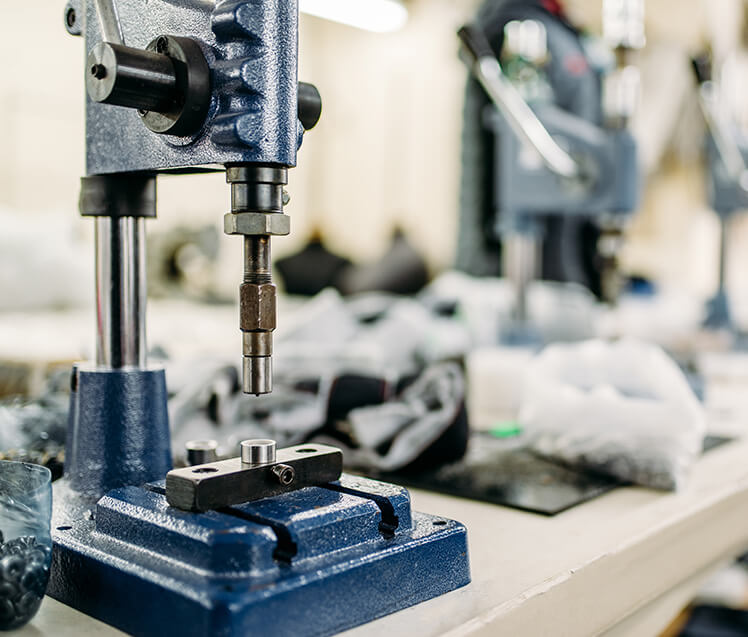

How Pneumatic Presses Work

A pneumatic air press uses compressed air to deliver consistent pressure for bending, drawing, punching, or forming metal and plastic components. Each unit includes an adjustable ram, high-accuracy down-stop mechanism, and smooth operation free from lubrication maintenance. Janesville Tool manufactures custom power, toggle, heat and other pneumatic arbor presses for highly specialized production tasks.

Standard Features

Every JT&M pneumatic press includes:

  • 3-inch stroke with adjustable stop and anti-rotation mechanism
  • Dual-hand, anti-tie-down safety controls
  • Nonmetallic bearings for friction-free operation
  • Adjustable flow solenoid valves
  • Alternate stroke lengths available
  • Anti-repeat and custom modification options

How to Choose the Right Pneumatic Press

When selecting a pneumatic press machine, consider the following factors:

  • Mounting configuration (benchtop vs. floor-standing)
  • Application type (assembly, punching, cutting, forming)
  • Production volume and duty cycle
  • Safety requirements and automation level
  • Custom tooling or attachments needed
  • Required force or tonnage

JT&M Force Calculation

Model numbers are set up to give the user an indication of the force that can be obtained from the press. The last three numbers of the model number, when divided by 10 and multiplied by the air pressure, will yield the output force of the press.

Pneumatic Press Applications

Pneumatic presses are versatile tools that are capable of handling high-speed operations on a small scale. Our pneumatic presses are used throughout the United States in aerospace, defense, telecom and medical industries. A pneumatic press creates more force than a manual press, making it an ideal tool for the following industrial applications:

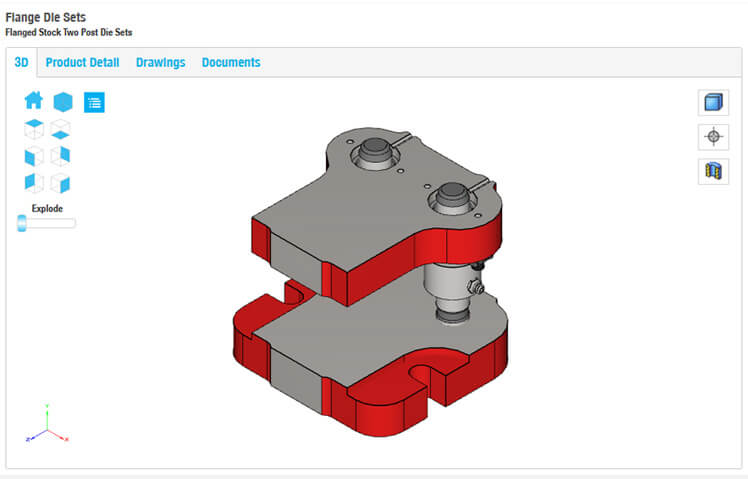

Build your own CAD model using our interactive tool.

Every JT&M pneumatic press for purchase is equipped with a three-inch stroke and adjustable down stop anti-rotate mechanisms. Standard solenoid valves offer built-in adjustable flow control. All JT & M pneumatic presses for sale also feature:

  • User-proven reliability for over 65 years
  • Nonmetallic bearings to reduce friction for lube-free operation
  • Dual hand anti-tie down/anti-repeat controls
  • Alternate stroke lengths available on request
  • Standard anti-repeat controls
  • Modifications available for any specifications

*Product specifications and pricing are subject to change without notice.

Pneumatic Benchtop Press

Benchtop press

Each precision benchtop pneumatic press is small enough to fit easily on a bench to complement your working area.

Pneumatic Hand Press

Hand press

Our presses are easily hand operated and fully customizable for minimal effort use over and over and over again.

neumatic Power Press

Power press

All Janesville Tool & Manufacturing pneumatic presses are powered to improve repeatability and maximize precision.

Pneumatic Press VS Hydraulic Press

The difference between pneumatic and hydraulic presses is the method used to operate the machine. Pneumatic presses use compressed air or nitrogen gas to create leverage and compressive force. Hydraulic presses incorporate a cylinder filled with oil to create downward force. A piston compresses the oil, which cannot expand within the cylinder and forces the ram into the workpiece. Both hydraulic and pneumatic presses are used for the same roles and are capable of performing the same tasks. Pneumatic presses feature faster operation and are generally easier to maintain.
